Rear Washer Motor: Inspection

  1. Check for continuity between positive terminal and negative terminal using an ohmmeter.

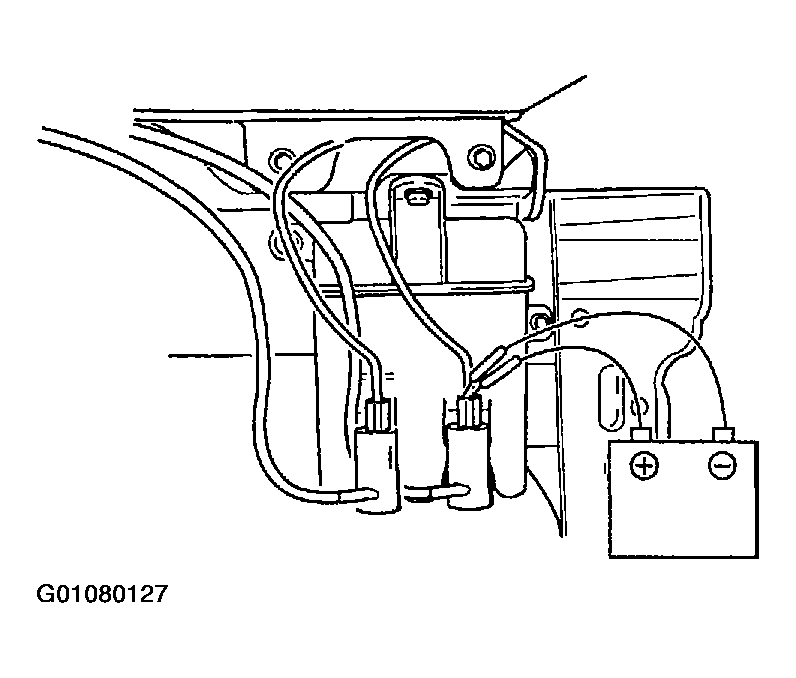

    Fig 1: Checking Rear Washer Motor Continuity
    G01080127Courtesy of KIA MOTORS AMERICA, INC.
  2. Check motor function by connecting it to a 12V DC source.
  3. Visually inspect washer tank for cracks or damage.
