Mode 6 - 1996-2017 KIA
›
Mode $06 Data Definitions For 2017 Soul 1.6T-GDI
Mode $06 Data Definitions For 2017 Soul 1.6T-GDI

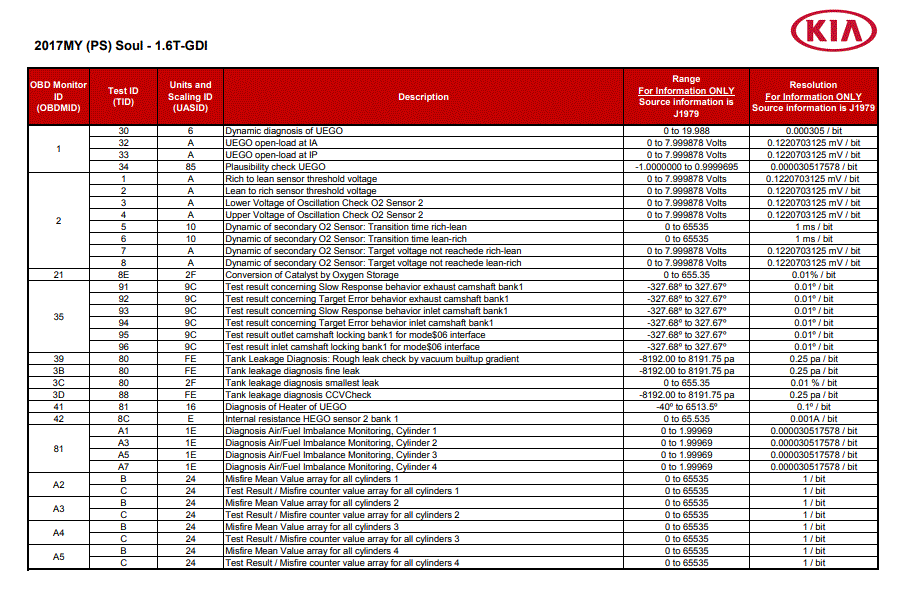

Fig 1: 2017 Soul 1.6T-GDI
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
