Symptom-Related Diagnostic Procedure
Symptom-Related Diagnostic Procedure

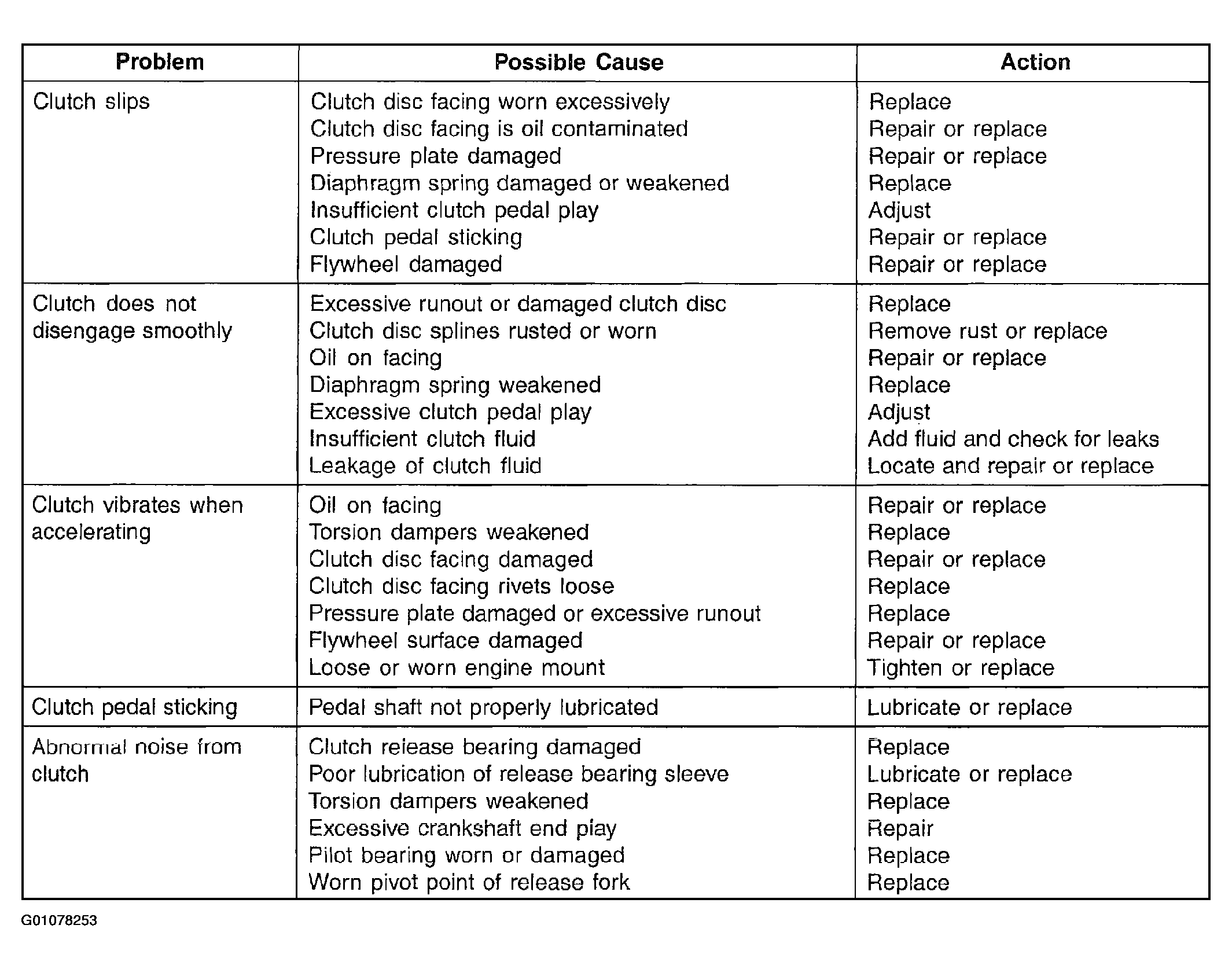

Fig 1: Illustrating Symptom-Related Diagnostic Procedure
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
