Ring Gear And Gear Case Assembly

Inspect ring gear for wear and cracks. If gear case is replaced, adjust bearing preload.

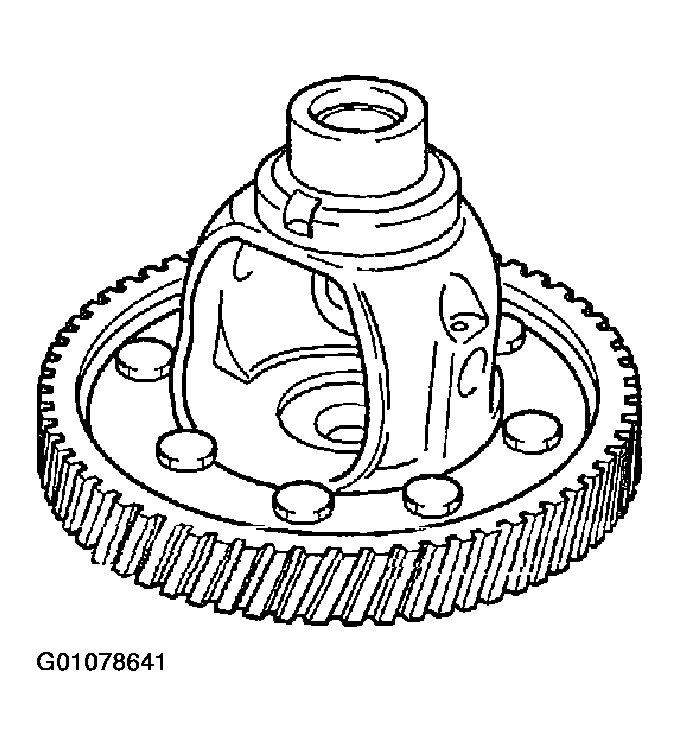

Fig 1: Inspecting Ring Gear For Wear And Cracks

Courtesy of KIA MOTORS AMERICA, INC.
