Kia
›
2003
›
Spectra LS, Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti Lock Brakes
›
Troubleshooting
›
Connector Terminal List
Connector Terminal List

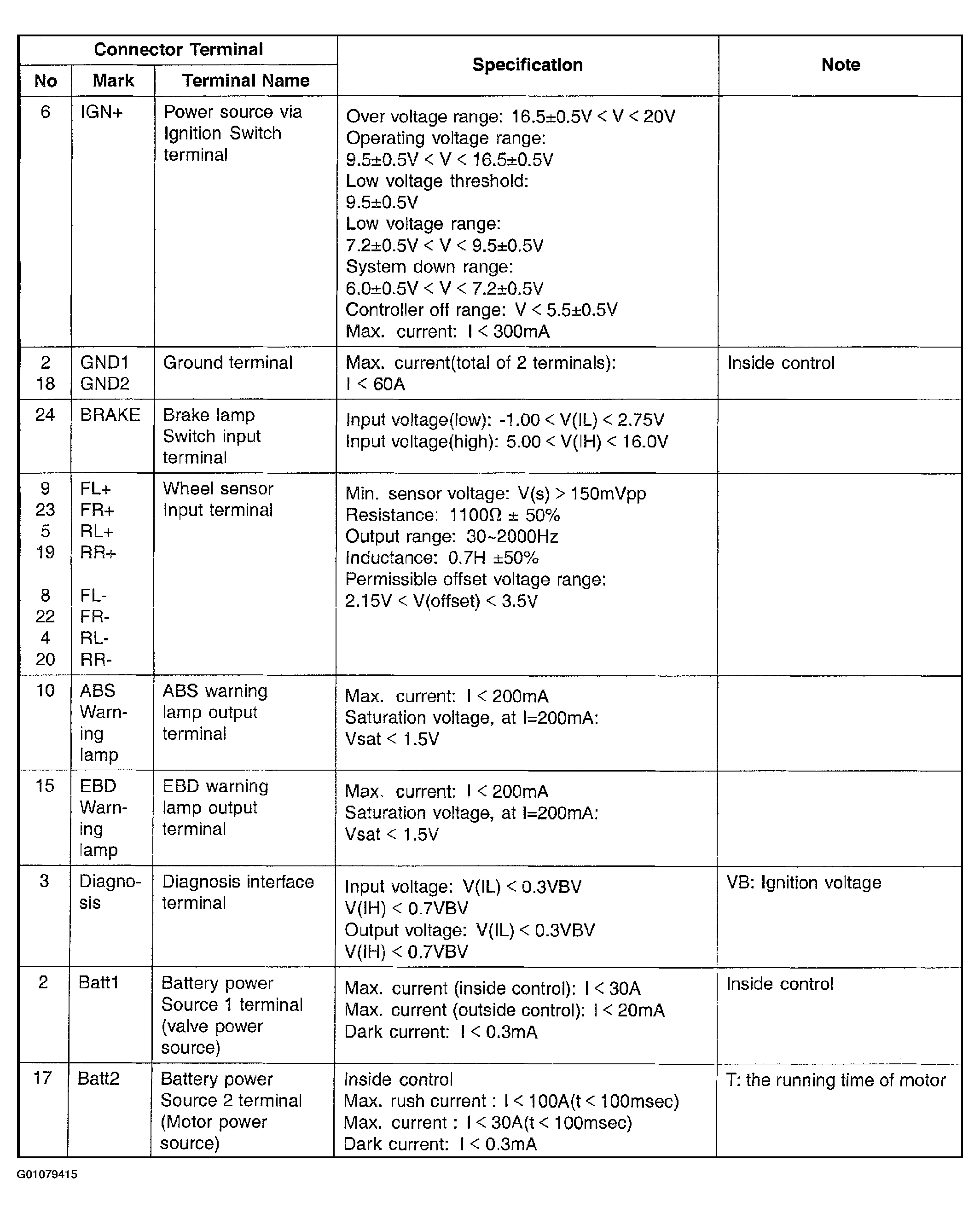

Fig 1: Connector Terminal List Chart (Pin Voltage Chart)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
