Rear Axle/Hub: Component

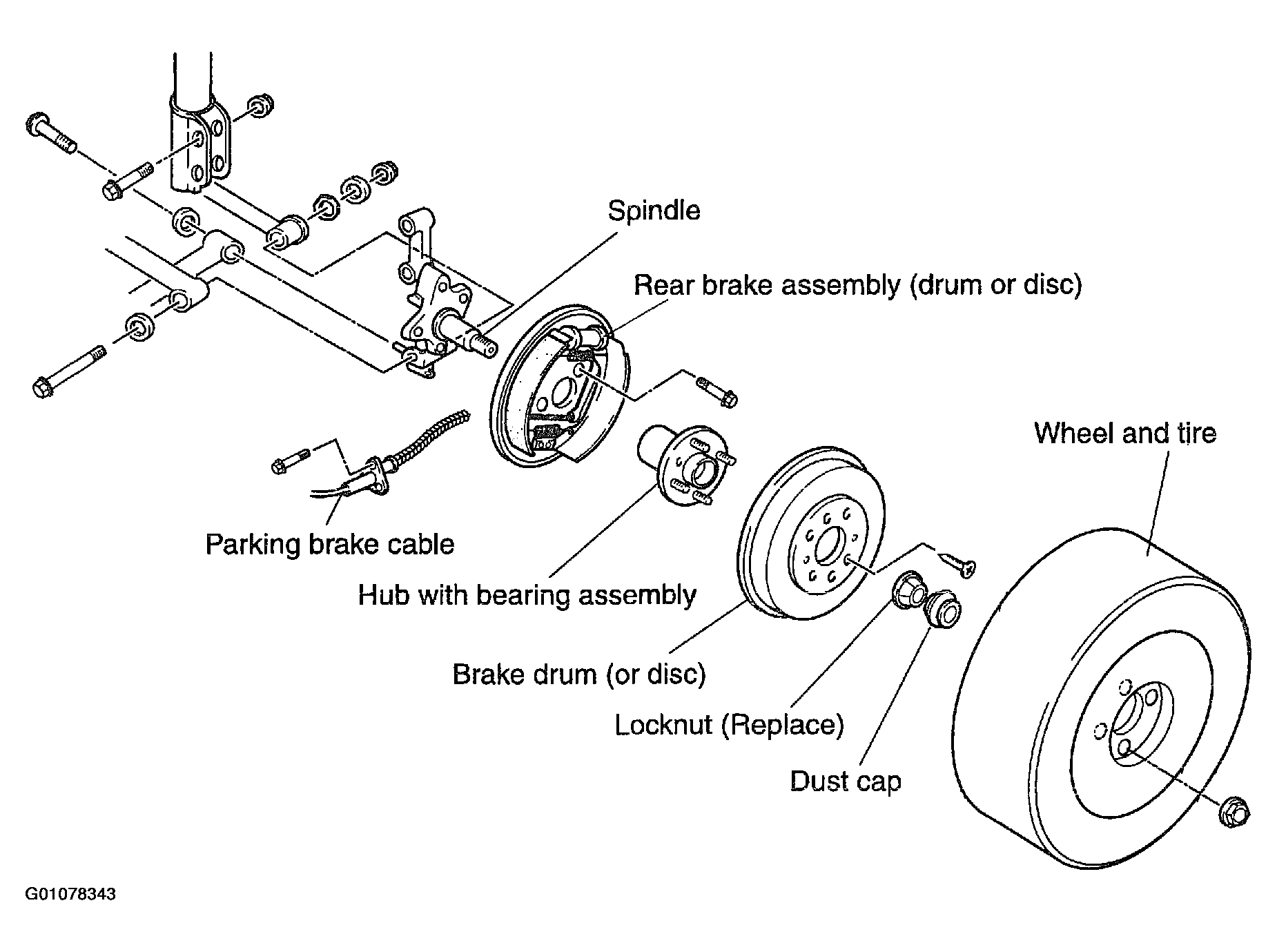

Fig 1: Exploded View Of Rear Axle Hub Assembly

G01078343

Courtesy of KIA MOTORS AMERICA, INC.
