Drive Belts: Adjustment

  1. Loosen generator mounting bolt and adjusting bolt.
  2. Adjust generator to achieve specified belt deflection.
  3. Tighten all bolts and recheck tension.

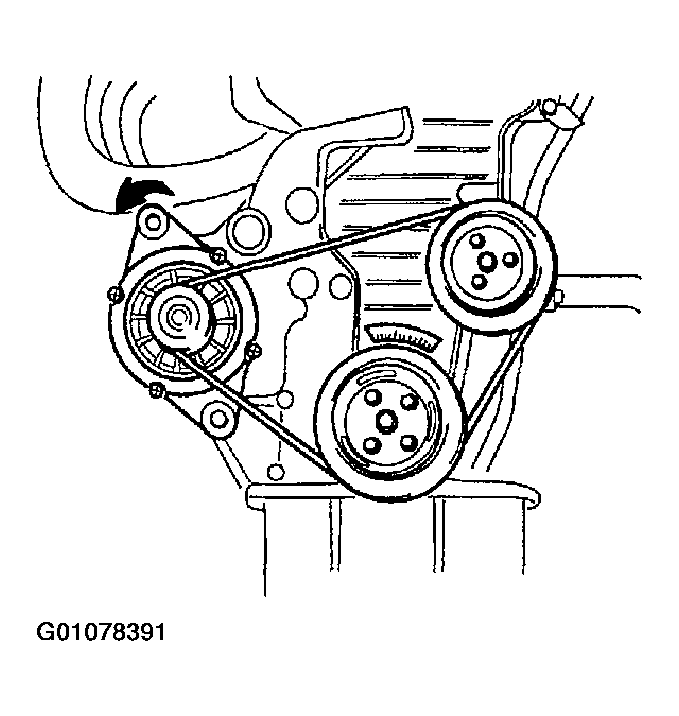

    Fig 1: Adjusting Drive Belt
    G01078391Courtesy of KIA MOTORS AMERICA, INC.
