Cooling System: Specification

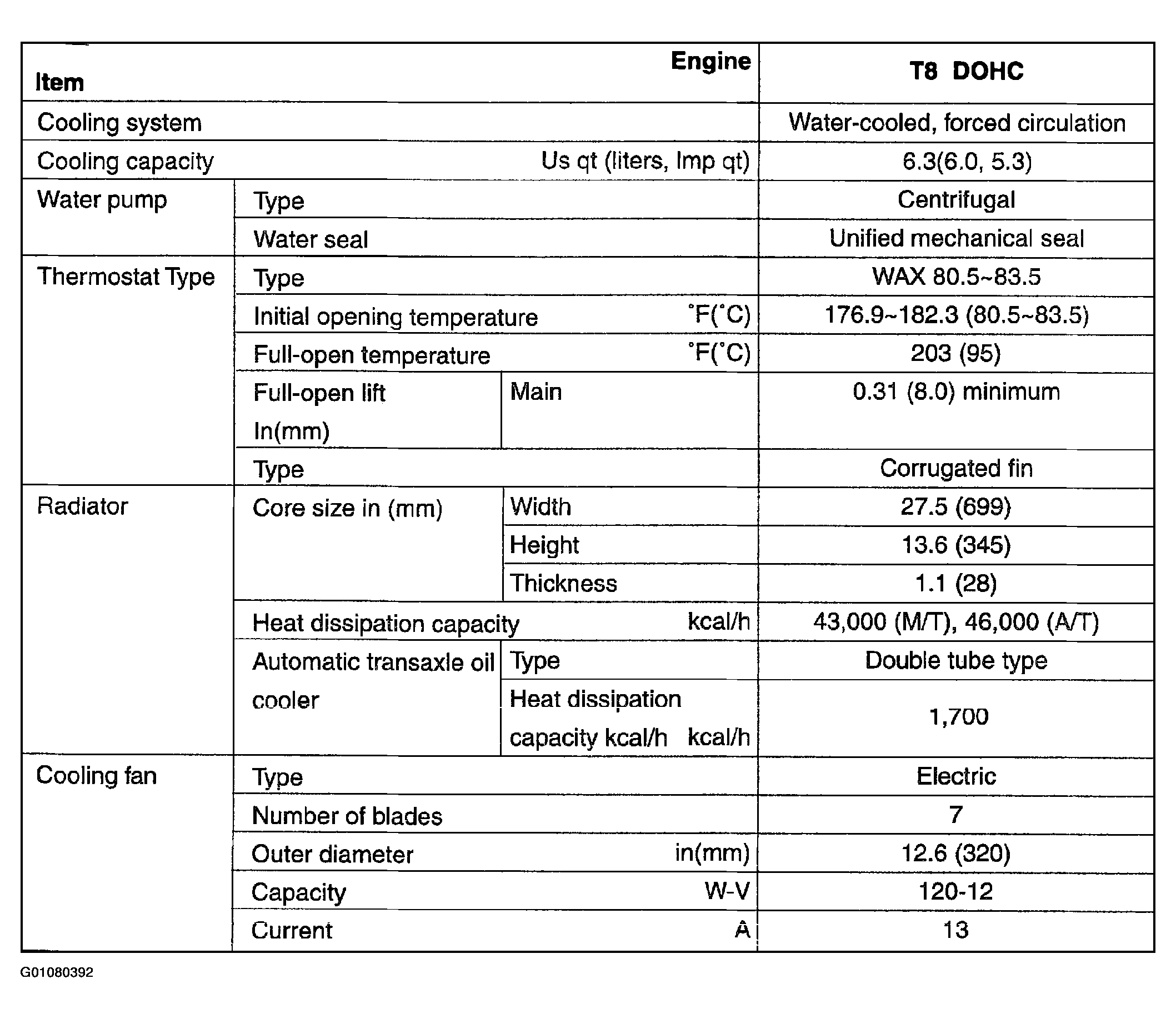

Fig 1: Cooling System Specifications
Courtesy of KIA MOTORS AMERICA, INC.

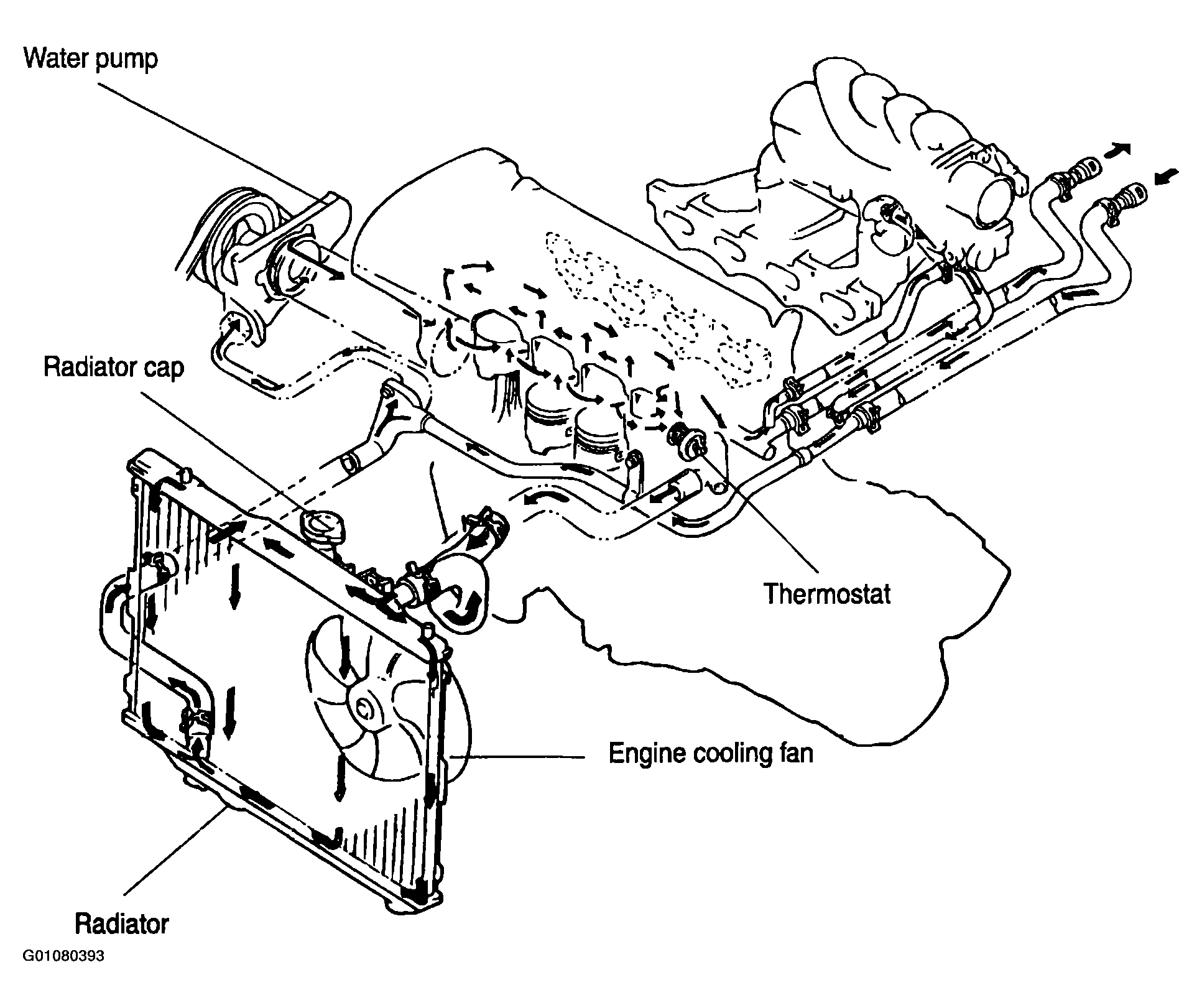

Fig 2: Cooling System Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
