Timing Belt: Component

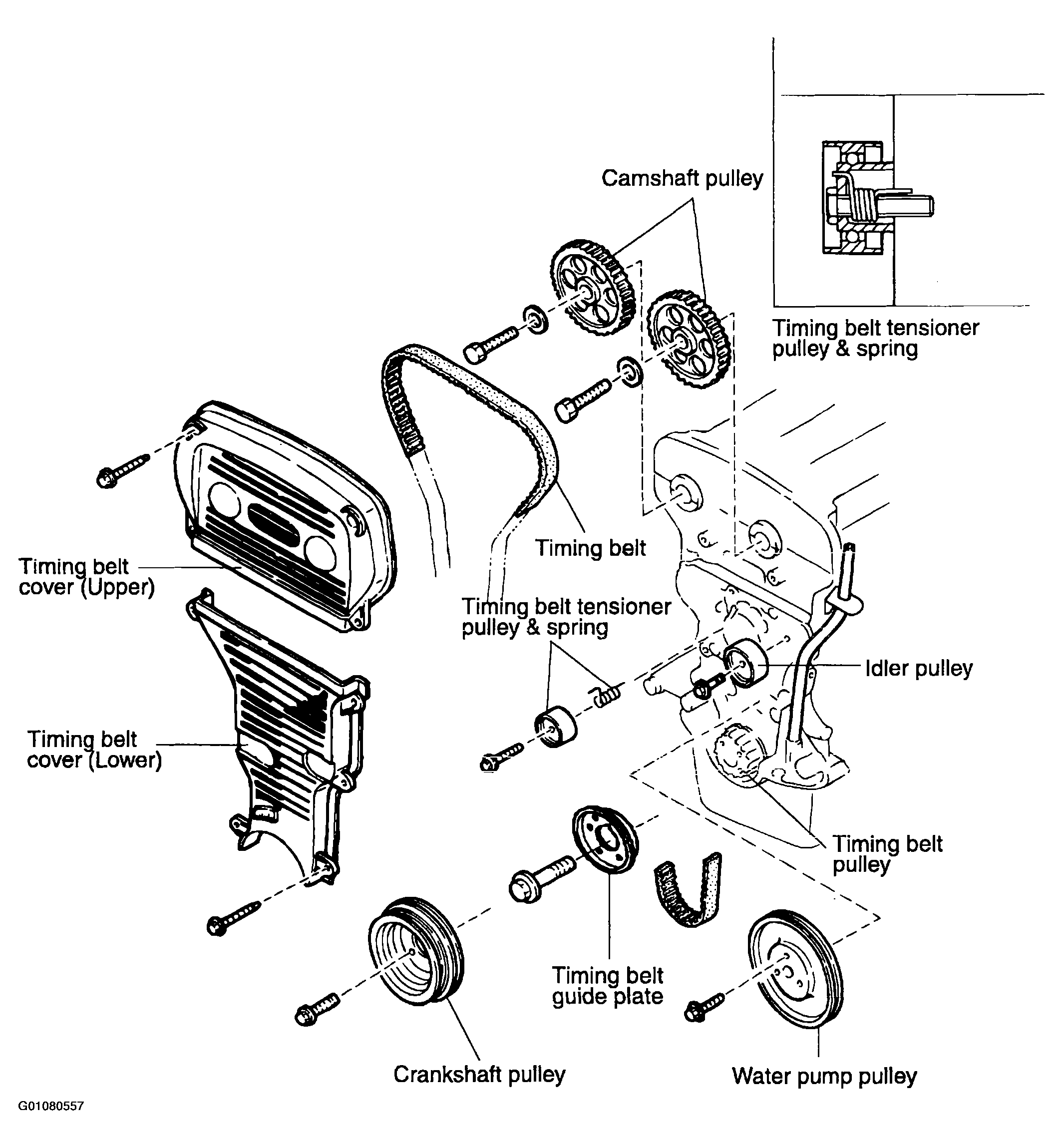

Fig 1: Identifying Timing Belt Components
G01080557Courtesy of KIA MOTORS AMERICA, INC.
