Kia
›
2003
›
Spectra LS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Emission Control System
›
General
›
Emission Control Components
Emission Control Components

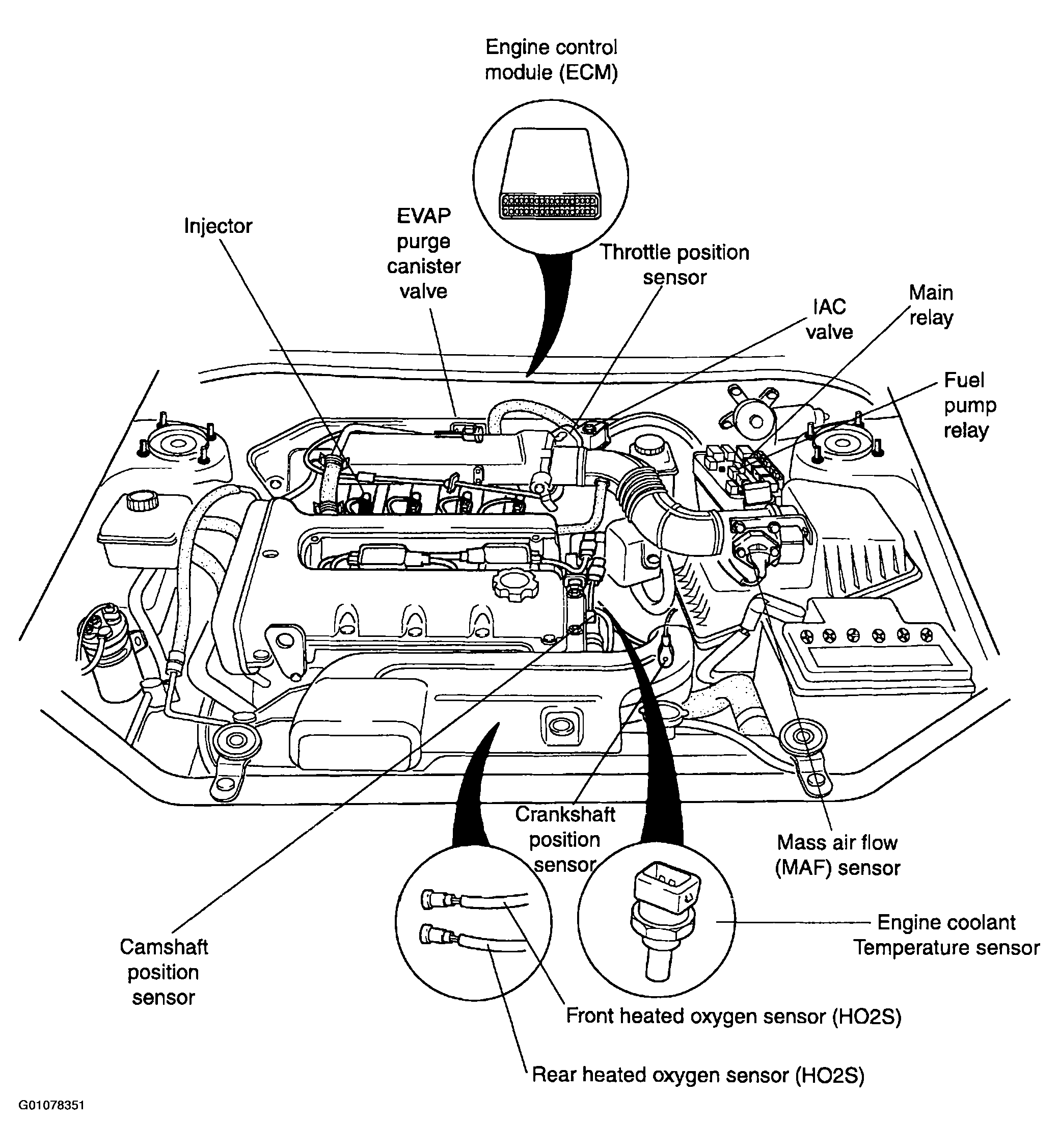

Fig 1: Illustrating Emission Control Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
