Continuity Inspection

  1. Disconnect negative battery cable.
  2. Disconnect transaxle range switch connector.
  3. Check for continuity at transaxle range switch.
  4. If not as specified, replace or adjust transaxle range switch.
  5. Connect transaxle range switch connector.
  6. Connect negative battery cable.

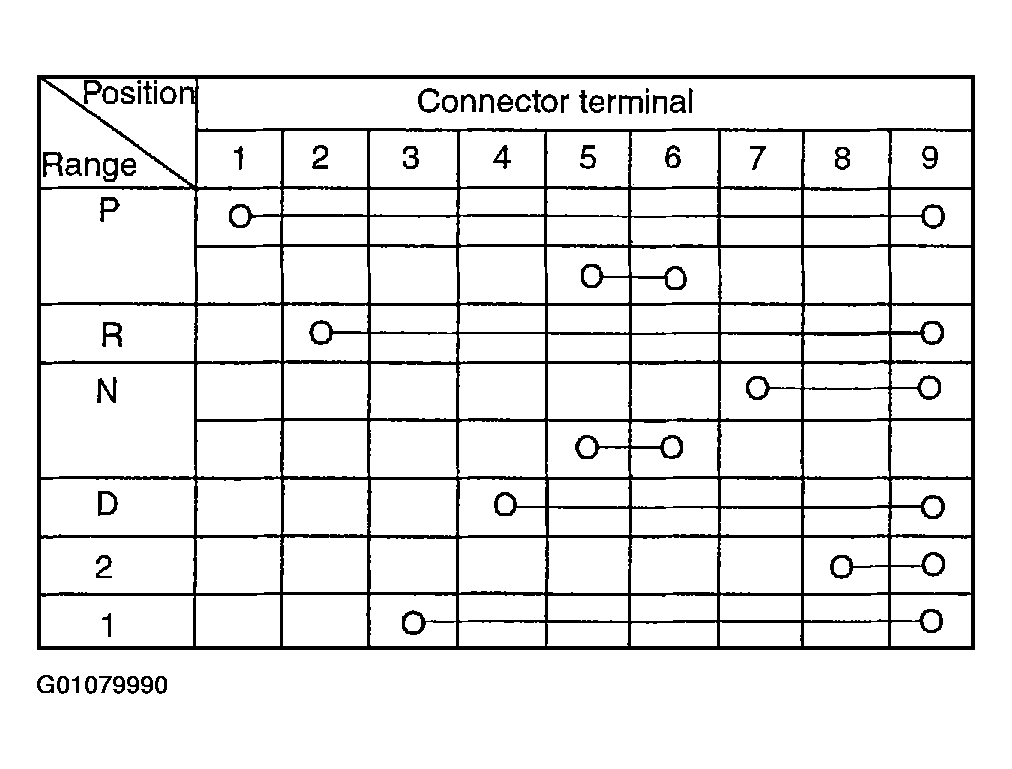

    Fig 1: Transaxle Range Switch Operation Chart
    G01079990Courtesy of KIA MOTORS AMERICA, INC.

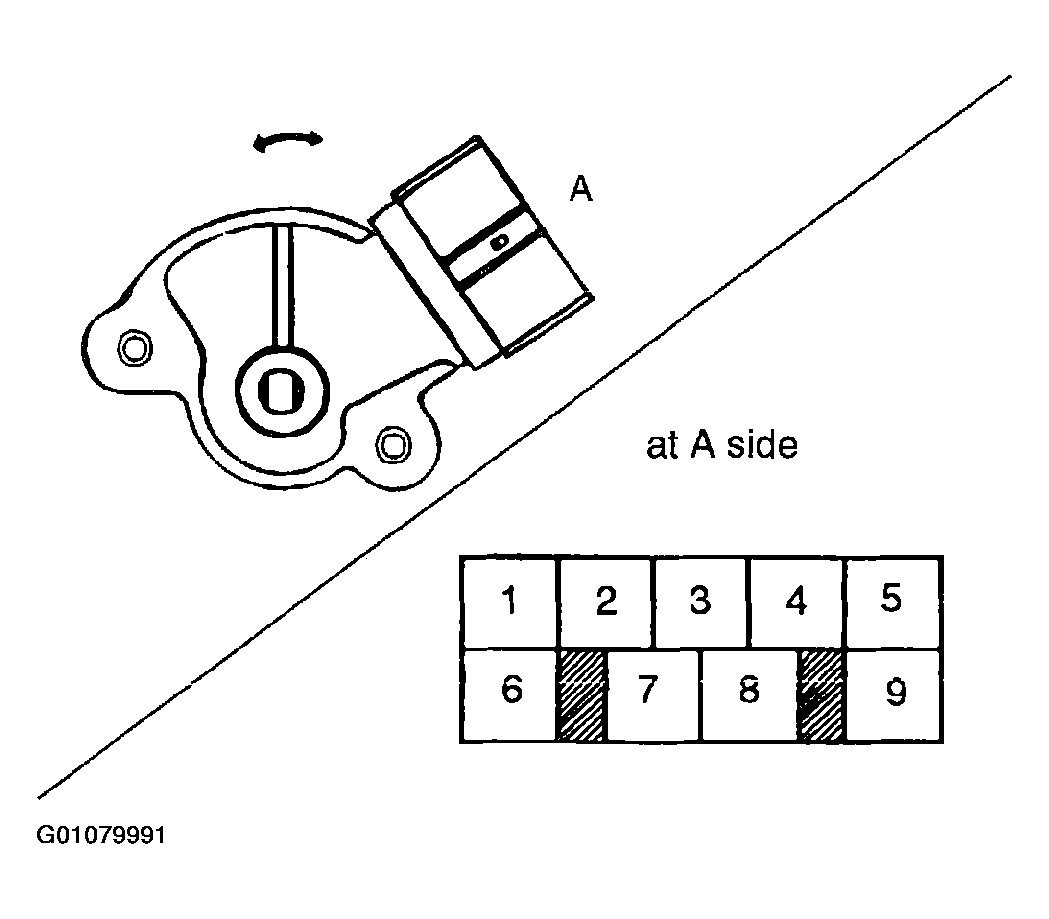

    Fig 2: Illustrating Transaxle Range Switch Adjustment
    G01079991Courtesy of KIA MOTORS AMERICA, INC.
