BCM Connector Configurations
BCM Connector Configurations

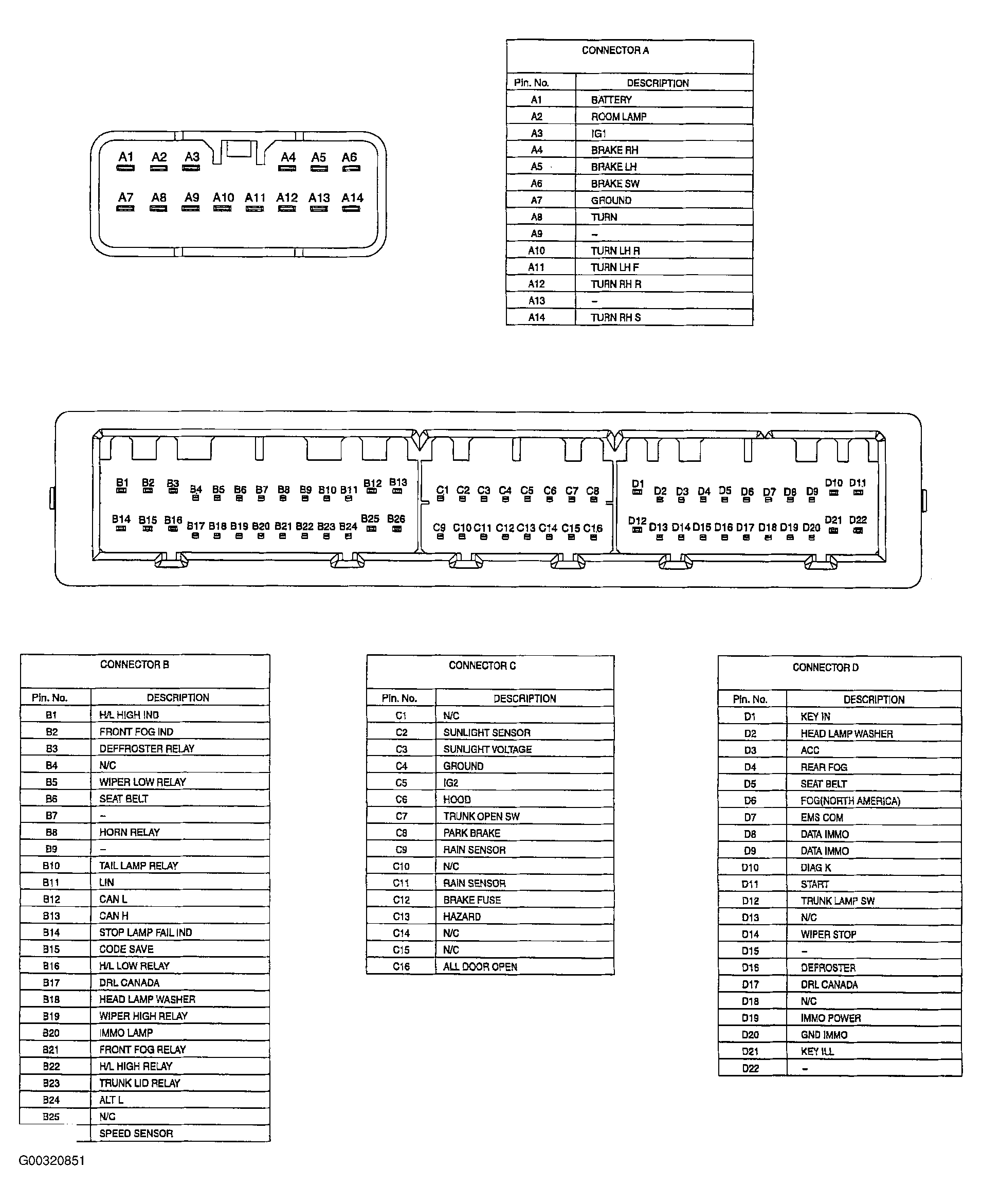

Fig 1: BCM Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
