Repair Procedures: Inspection

1. Disconnect the connector under the steering column.
2. Check the switch continuity between the terminals.
3. If continuity is not as specified, replace the switch.

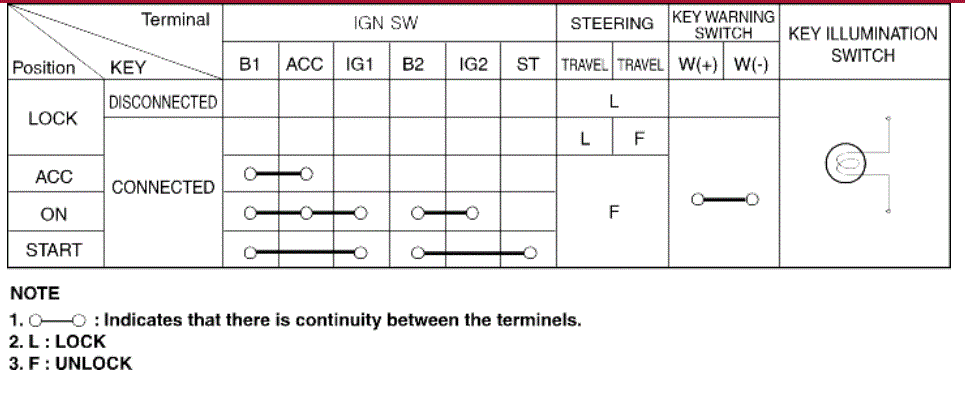

Fig 1: Ignition Switch Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

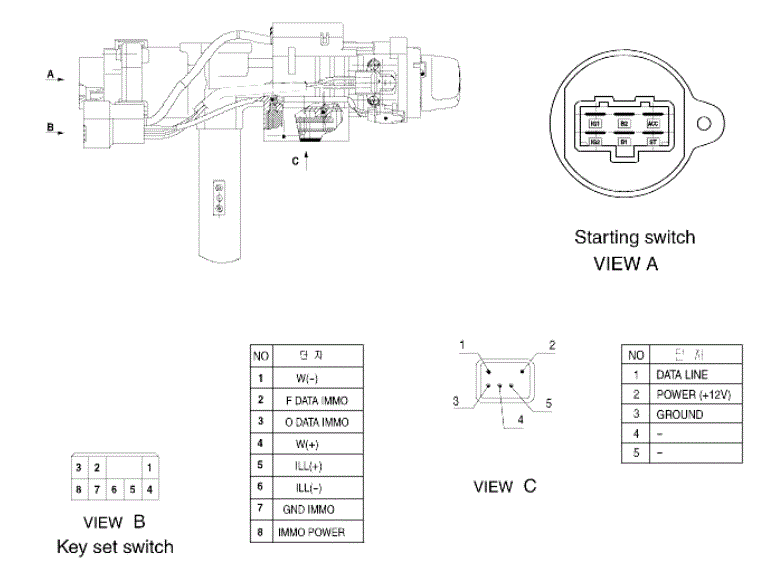

Fig 2: Ignition Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
