Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock, Traction Control, Electronic Brake Force Distribution
›
Anti-Lock Brake System (Abs)
›
Abs/TCS Control Unit
›
HECU Connector Inspection & PINOUT
HECU Connector Inspection & PINOUT

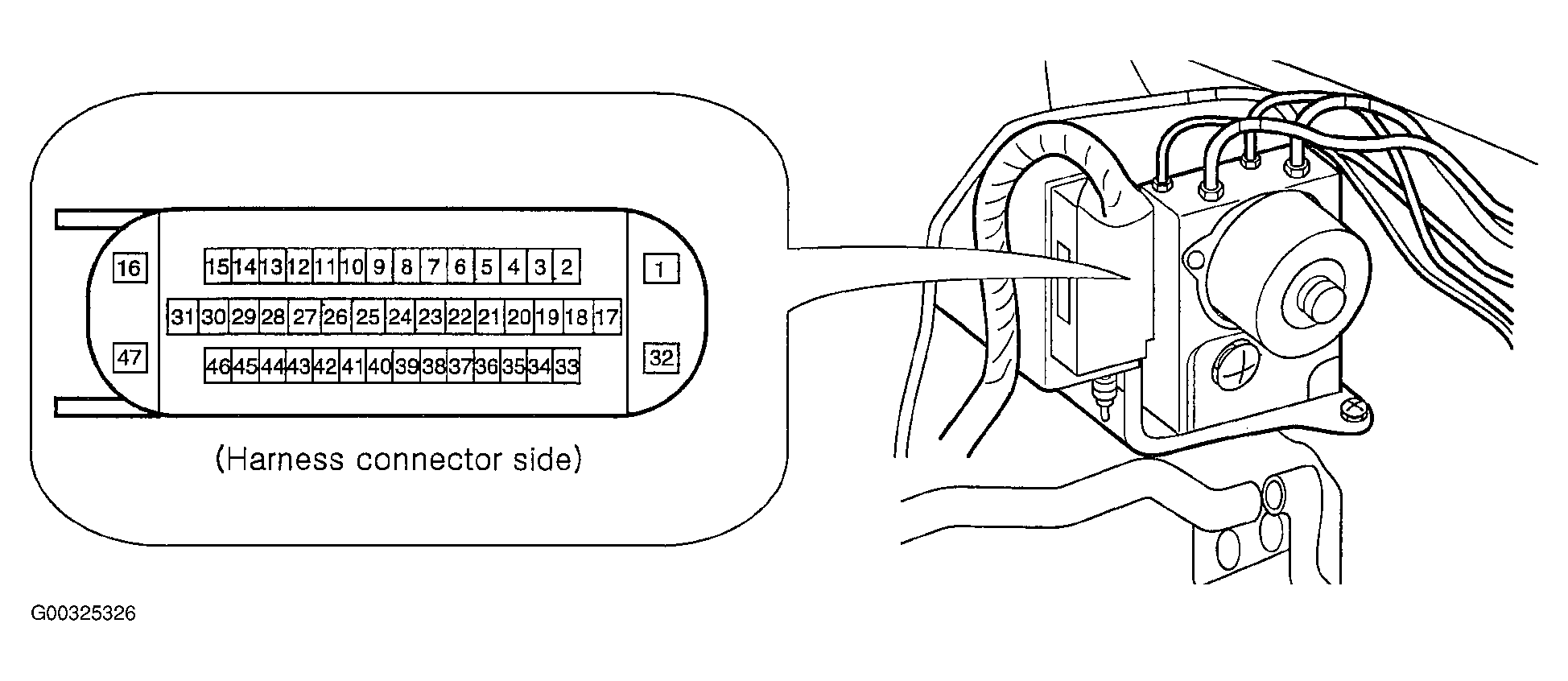

Fig 1: HECU Connector Inspection
Courtesy of KIA MOTORS AMERICA, INC.

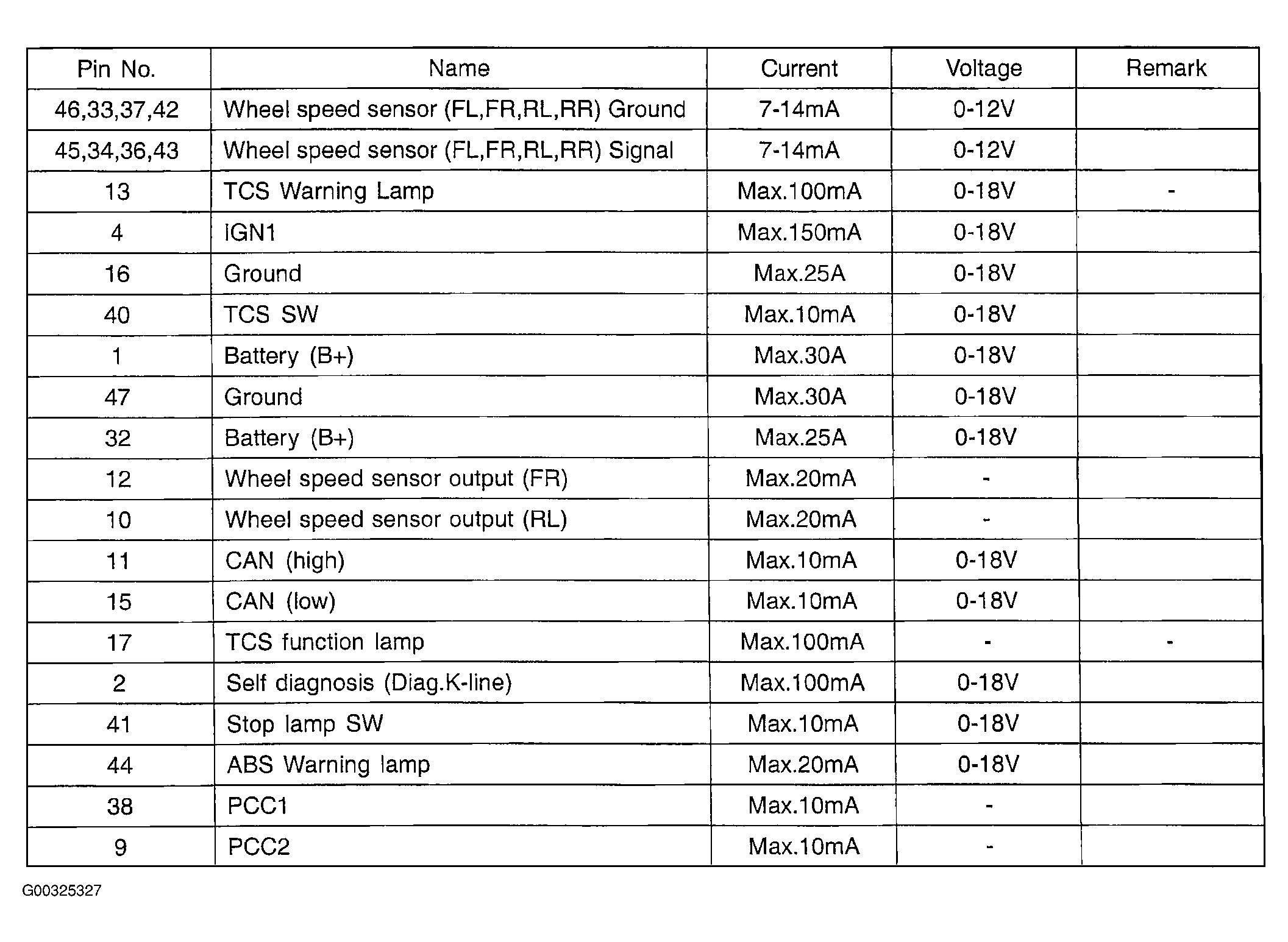

Fig 2: HECU Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
