Disassembly & Reassembly: Notes

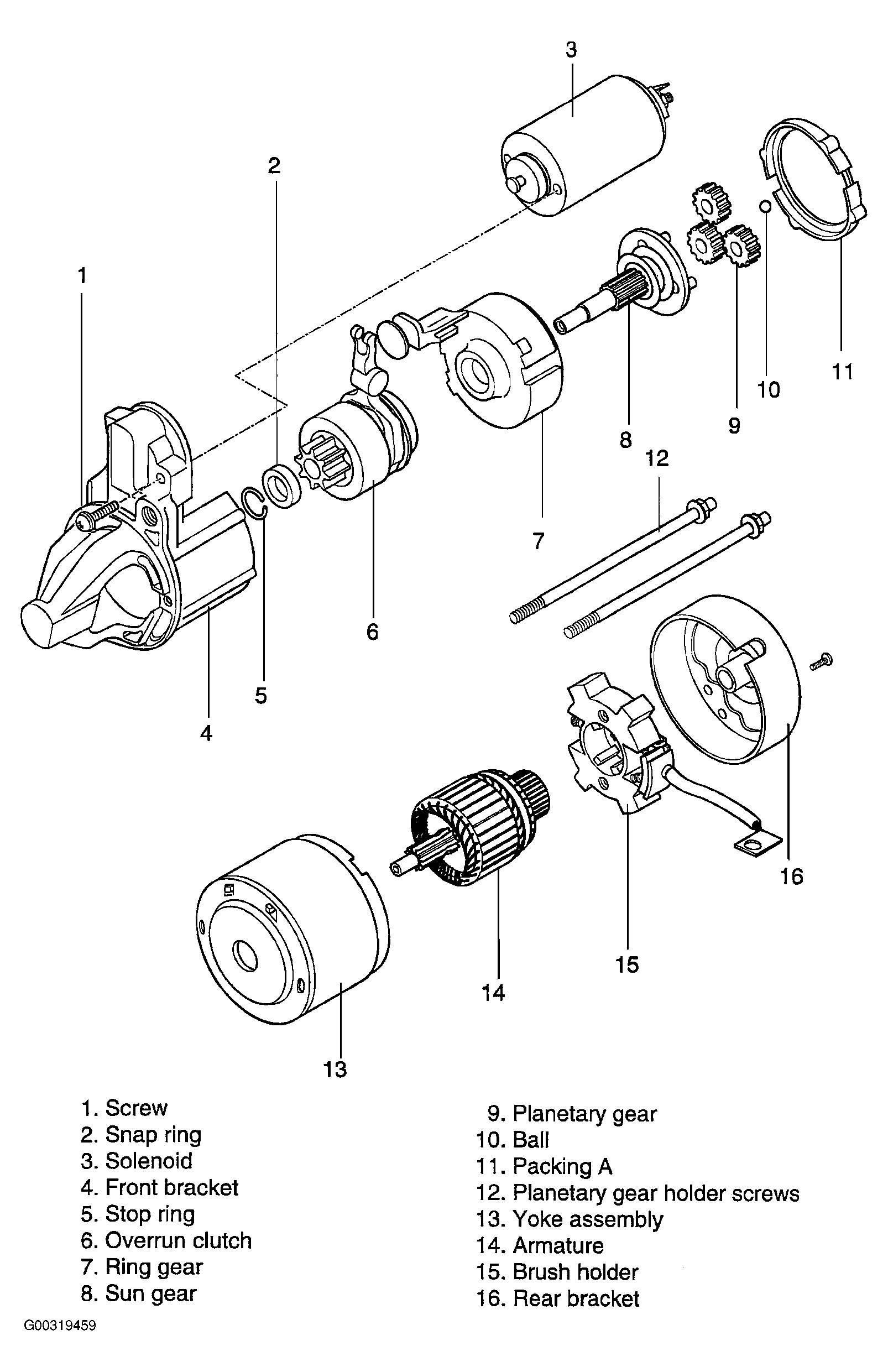

Fig 1: Exploded View Of Starter

G00319459

Courtesy of KIA MOTORS AMERICA, INC.
