Coolant Temperature Sensor: Removal

1. Drain the engine coolant.
2. Remove the engine harness after disconnecting the ground cable of the battery.
3. Remove the engine coolant sensor.

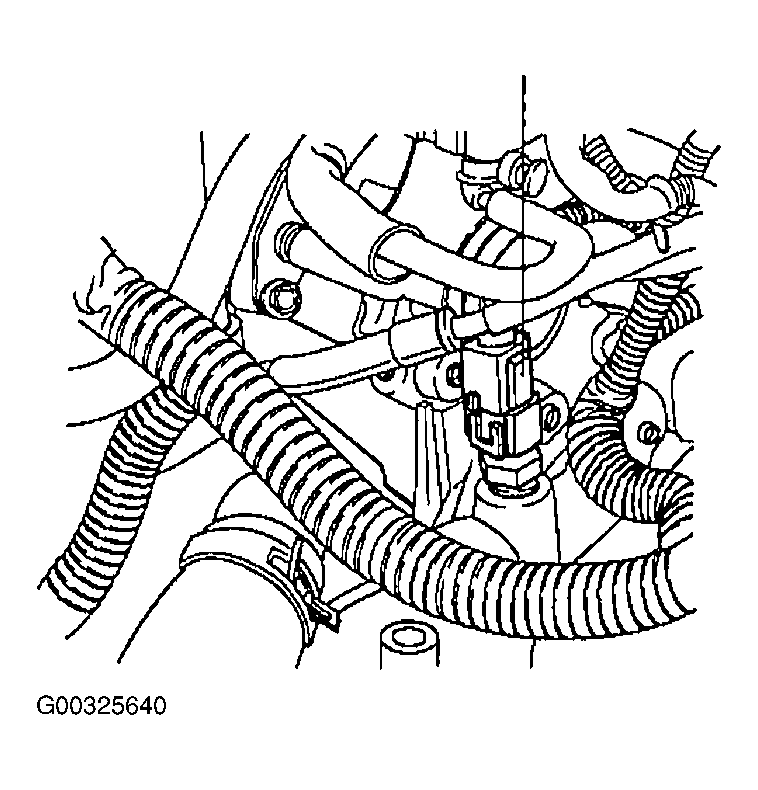

Fig 1: Removing Coolant Sensor

Courtesy of KIA MOTORS AMERICA, INC.
