Repair and Diagnosis
›
Engine Mechanical
›
Lubrication System
›
3.5L Engine
›
Cooling System
›
Schematic Diagram
›
Inlet Control
Inlet Control

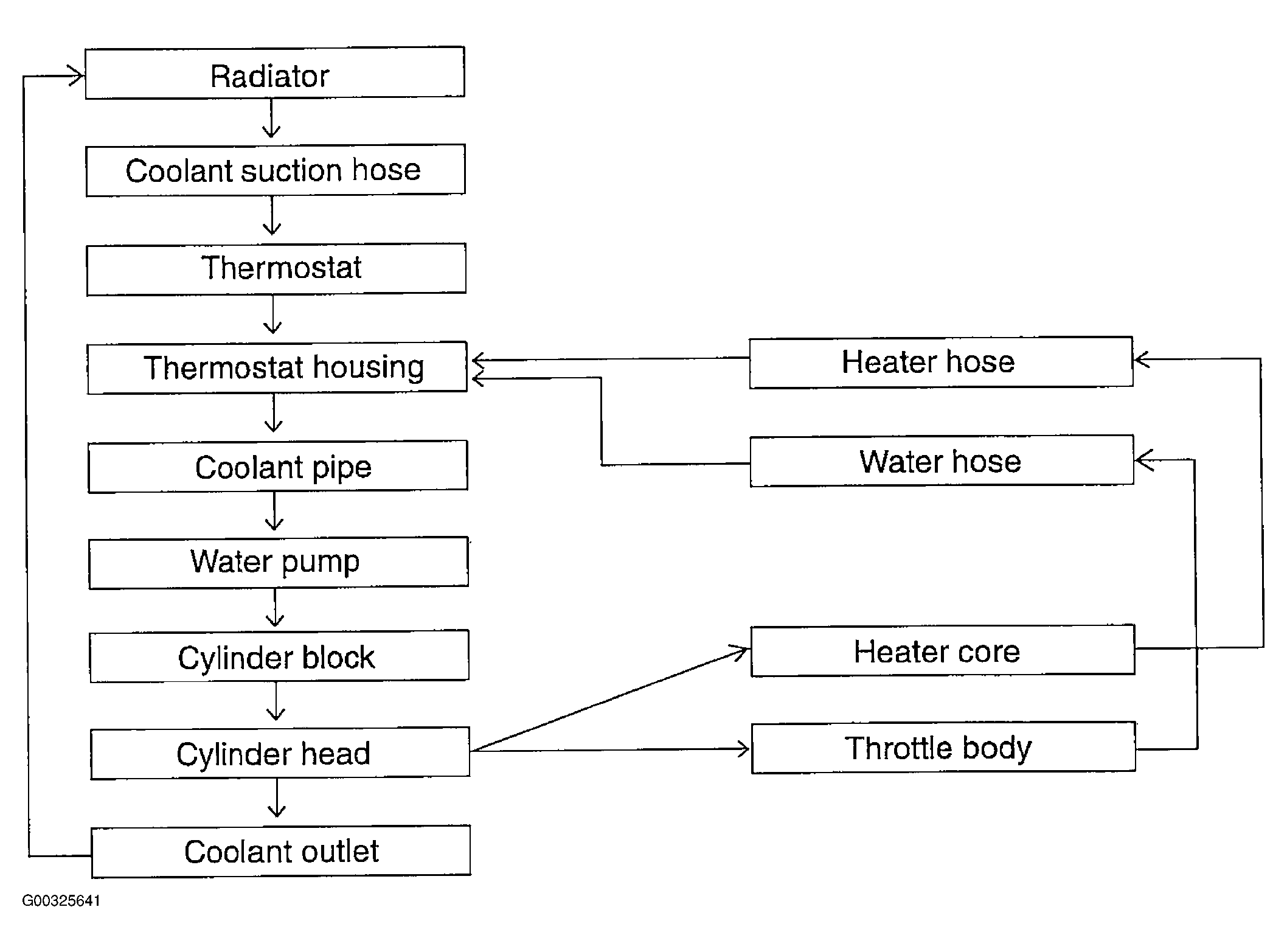

Fig 1: Inlet Control Schematic
Courtesy of KIA MOTORS AMERICA, INC.
