Cooling System: Thermostat: Notes

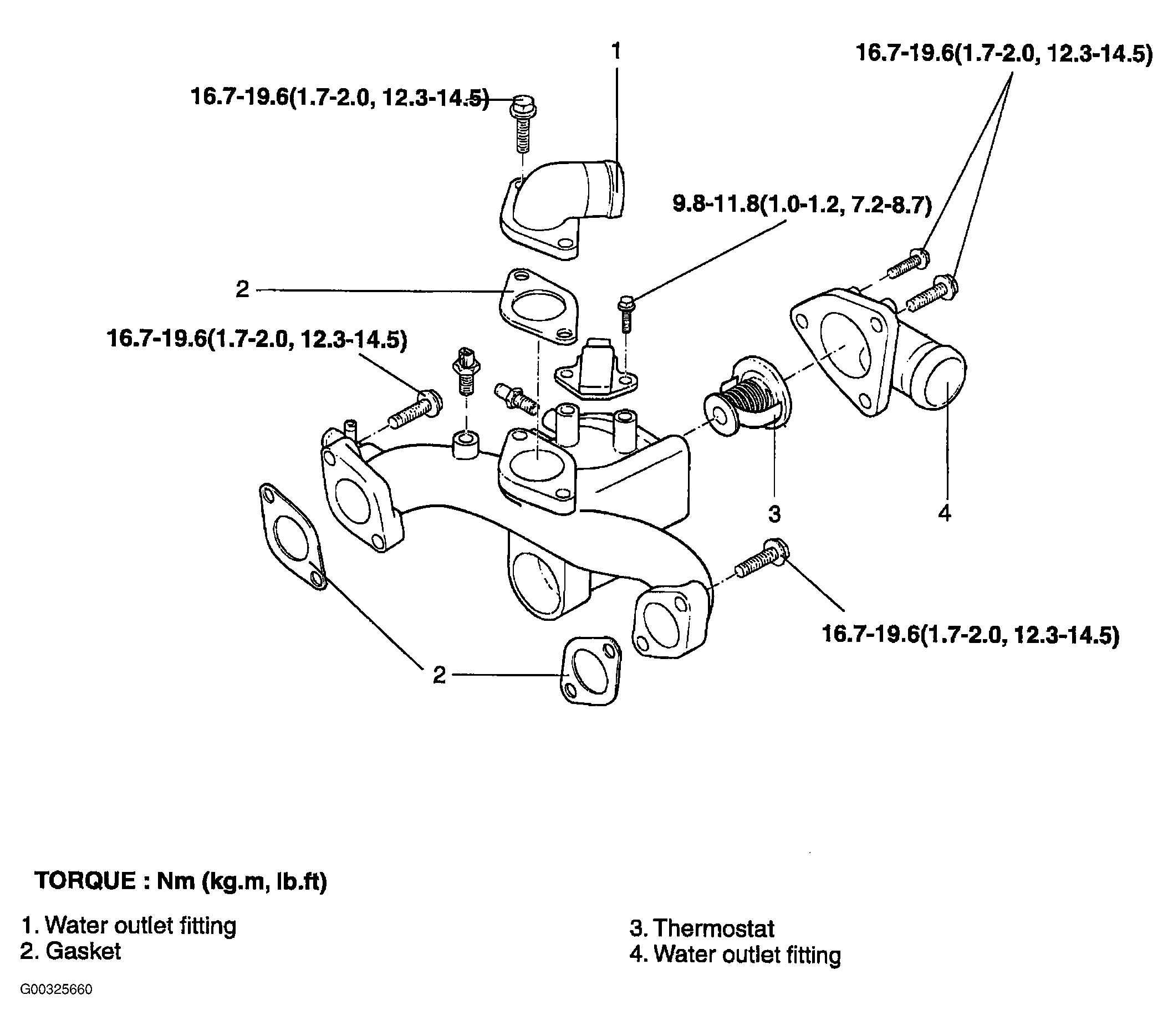

Fig 1: Identifying Thermostat Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
