Engine Mounts

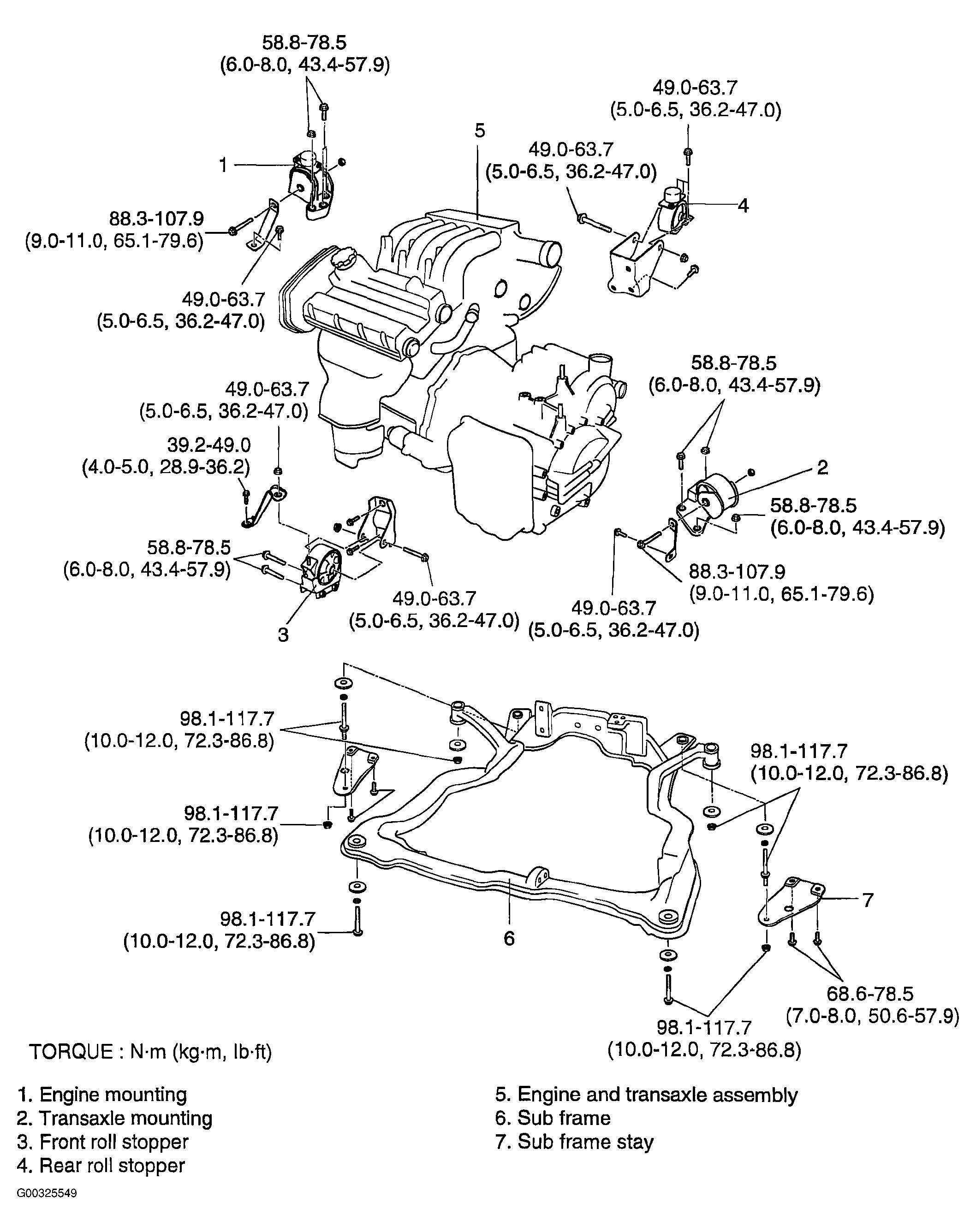

Fig 1: Identifying Engine Mount Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
