Special Service Tools
Special Service Tools

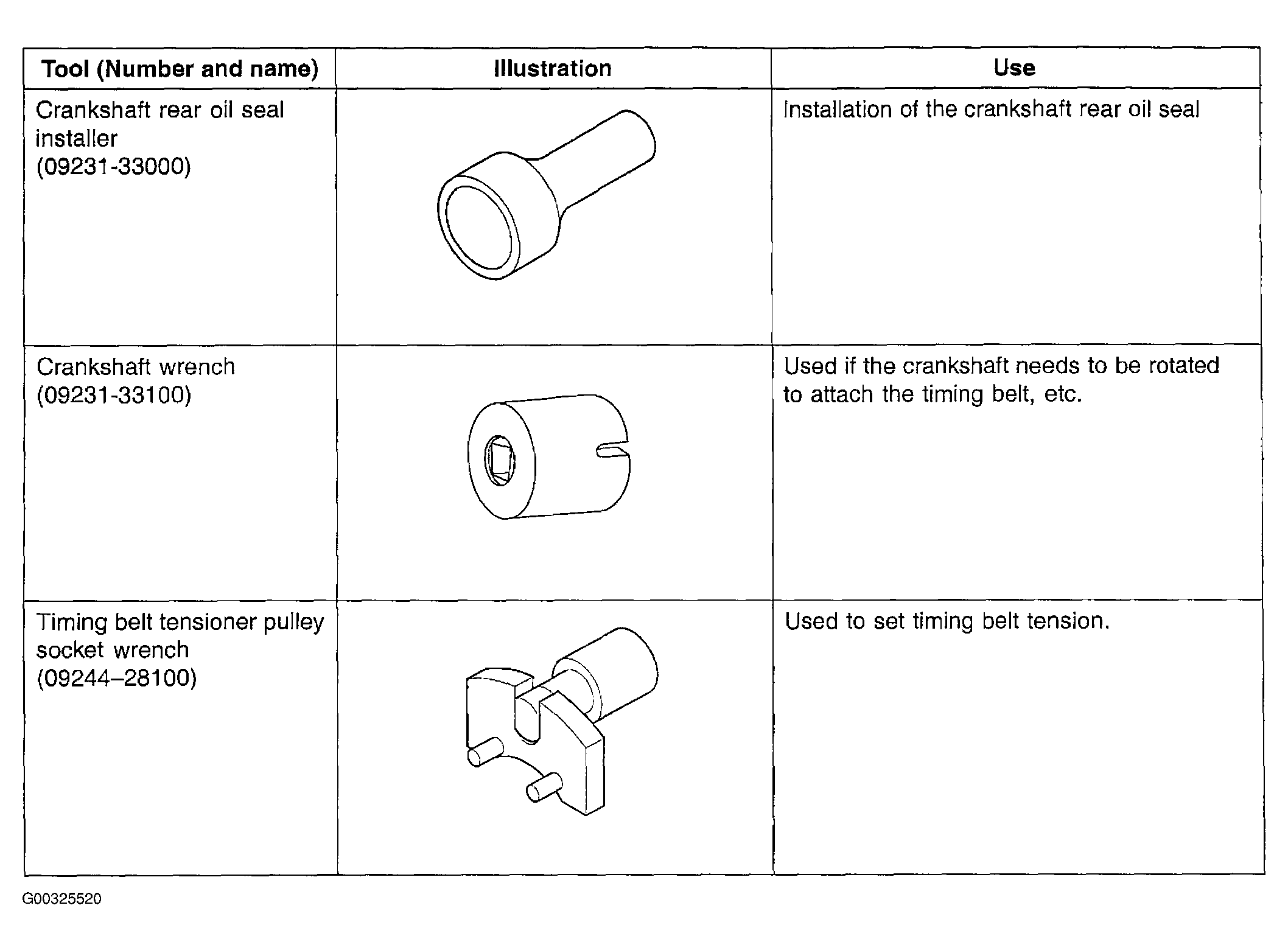

Fig 1: Identifying Special Tools (1 of 2)
Courtesy of KIA MOTORS AMERICA, INC.

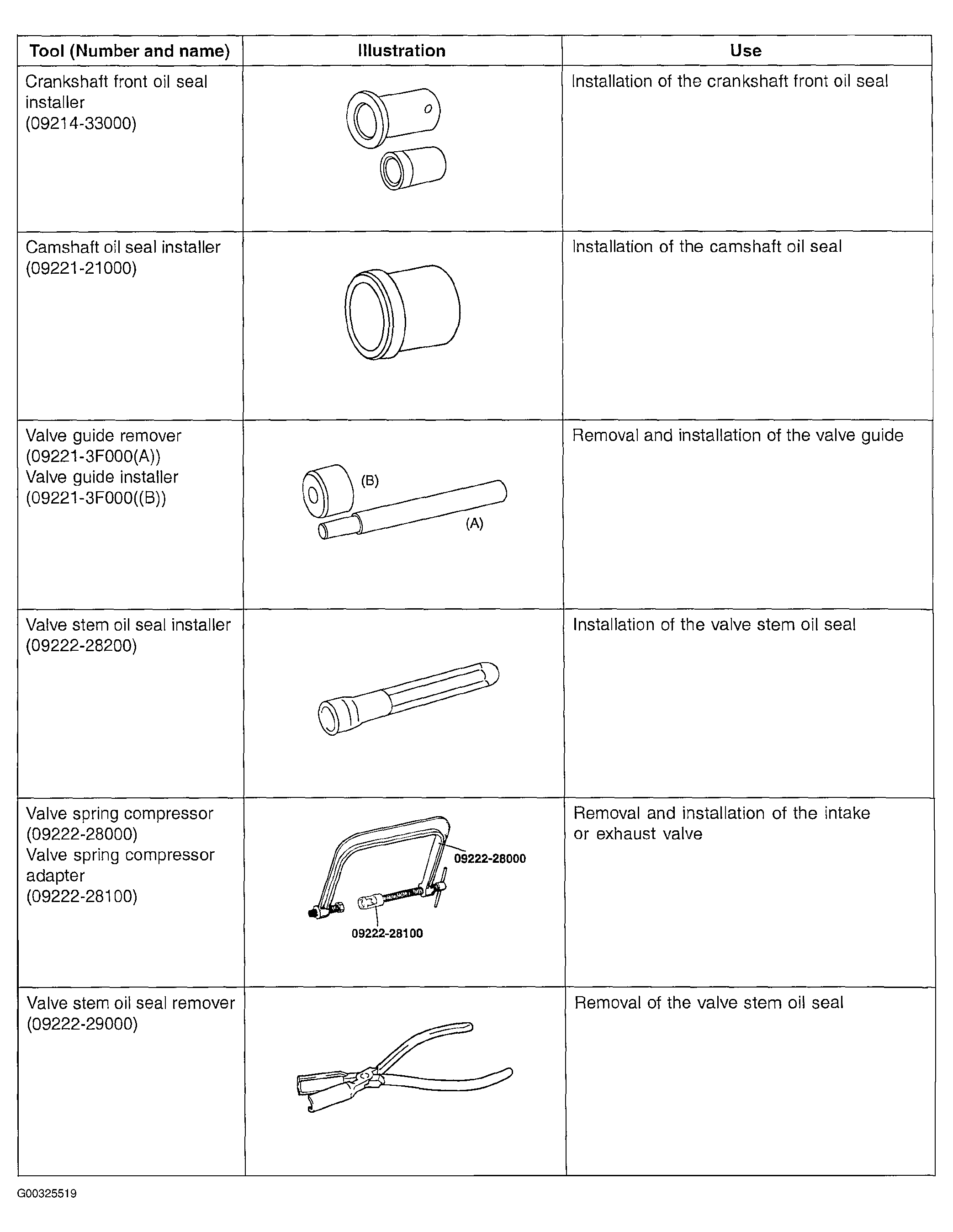

Fig 2: Identifying Special Tools (2 of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
