Main Moving System: Piston: Notes

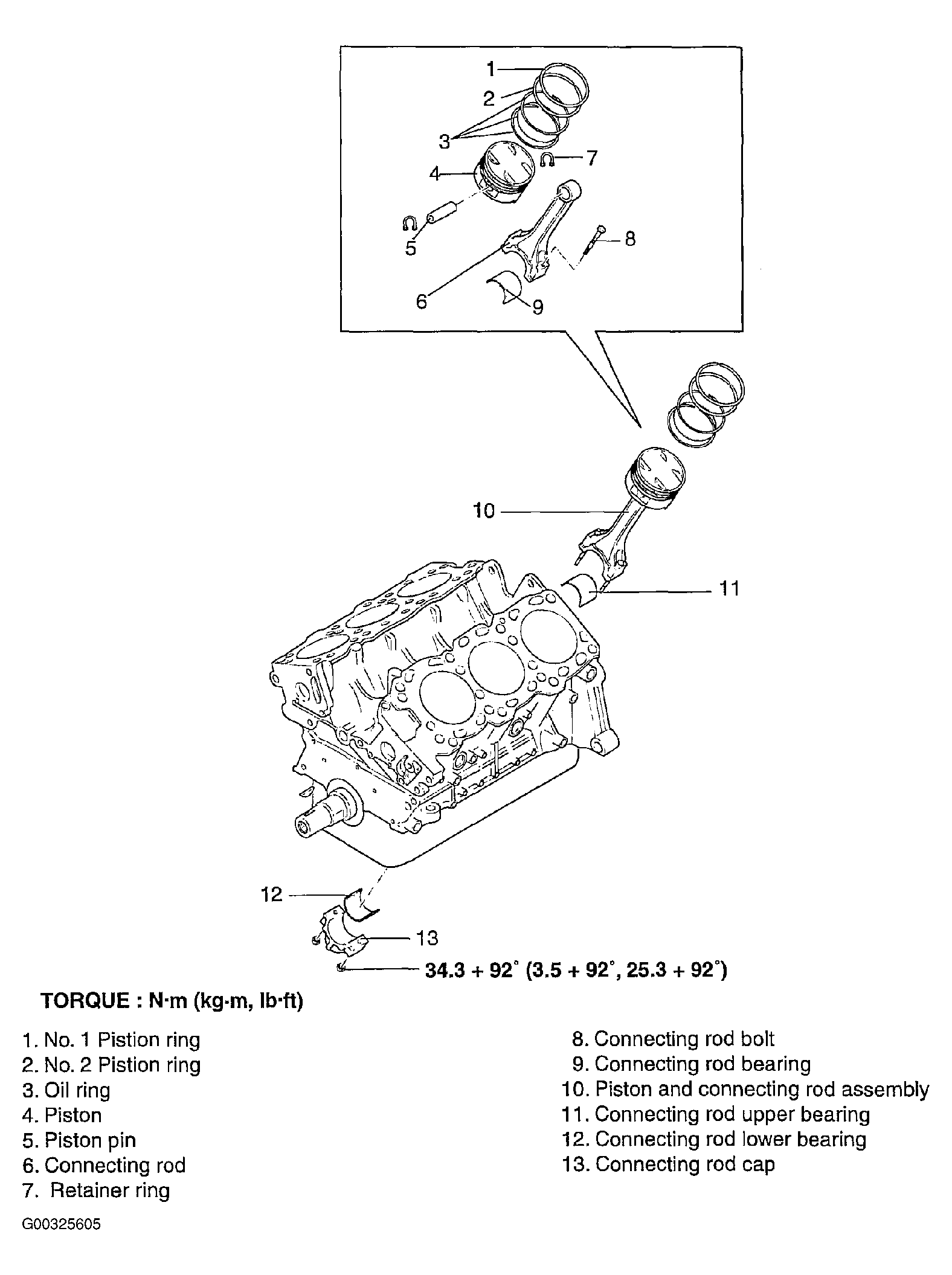

Fig 1: Identifying Piston & Connecting Rod Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
