Timing Belt: Notes

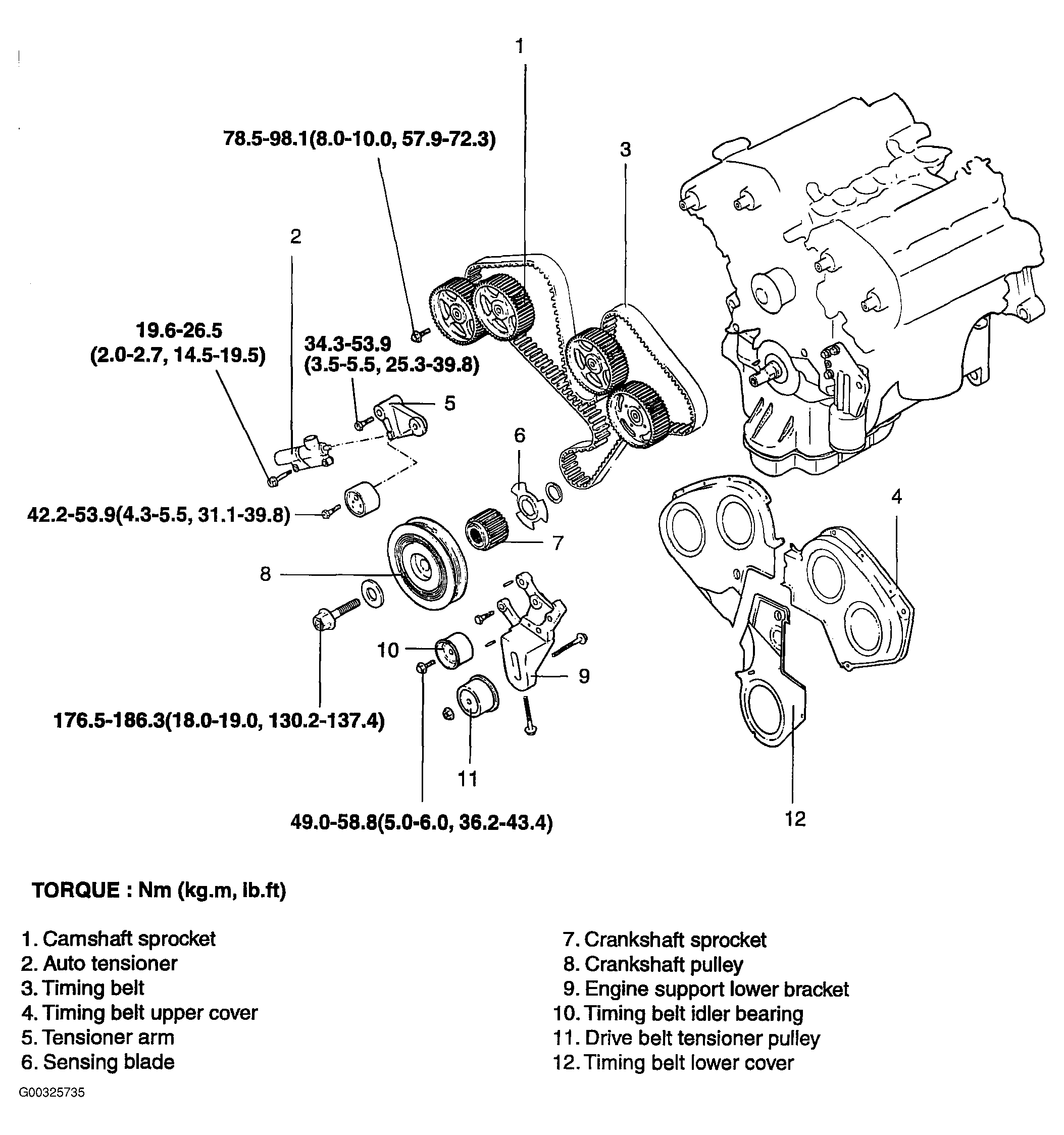

Fig 1: Identifying Timing Belt Components
G00325735Courtesy of KIA MOTORS AMERICA, INC.
