Main Moving System: Camshaft: Notes

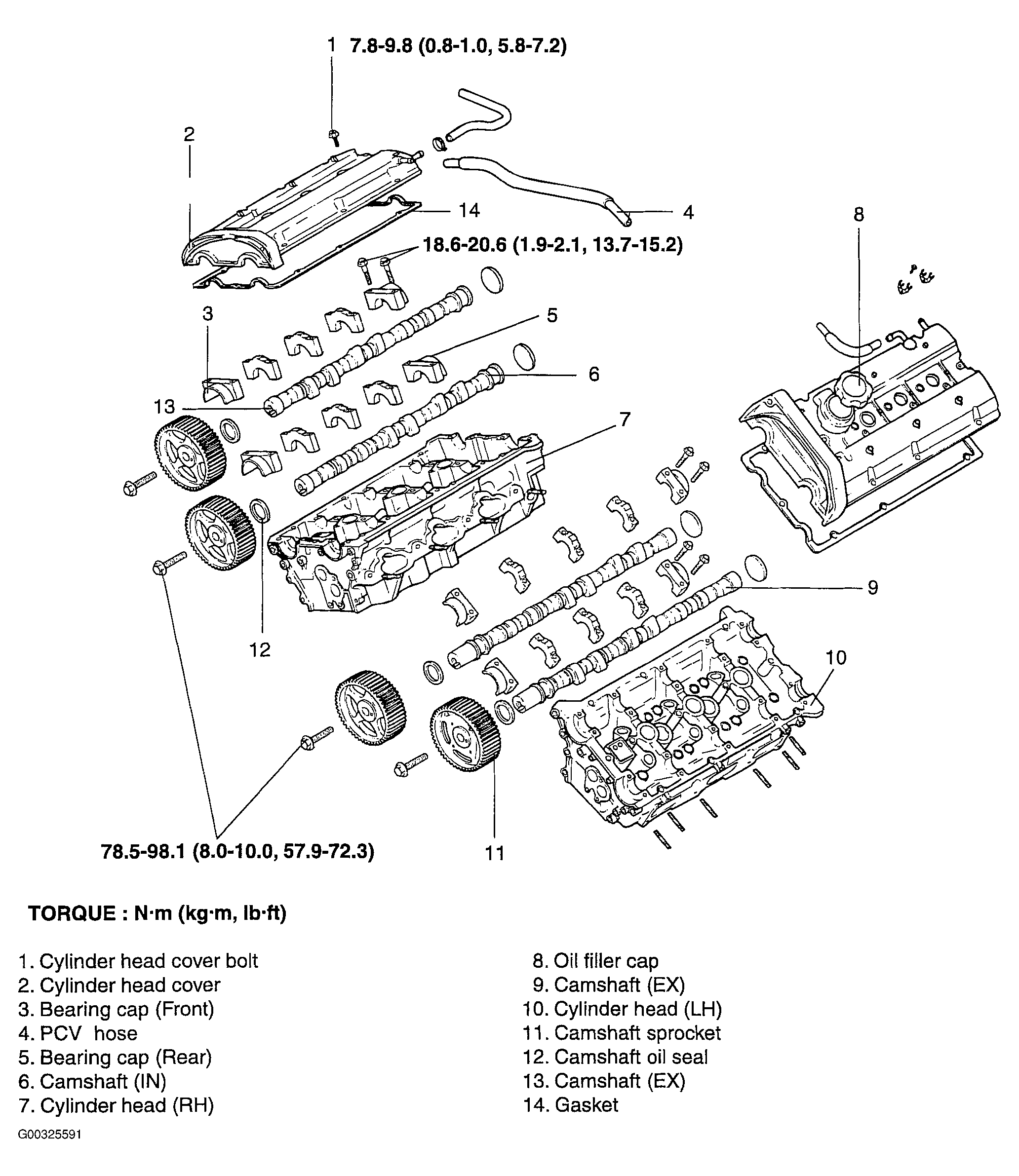

Fig 1: Identifying Valvetrain Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
