Leakage Test For Evaporative Emission Control System

Turn ignition key "ON".
Connect Hi-Scan PRO to OBD-II connector using a DLC (Data Link Connector).
Turn ignition key to "START".
Select "01. VEHICLE DIAGNOSIS".

Fig 1: Viewing Hi-Scan PRO "01. VEHICLE DIAGNOSIS" Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
Select "12. OPIRUS/AMANTI"

Fig 2: Viewing Hi-Scan PRO "12. OPIRUS/AMANTI" Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
Select "01. ENGINE CONTROL".

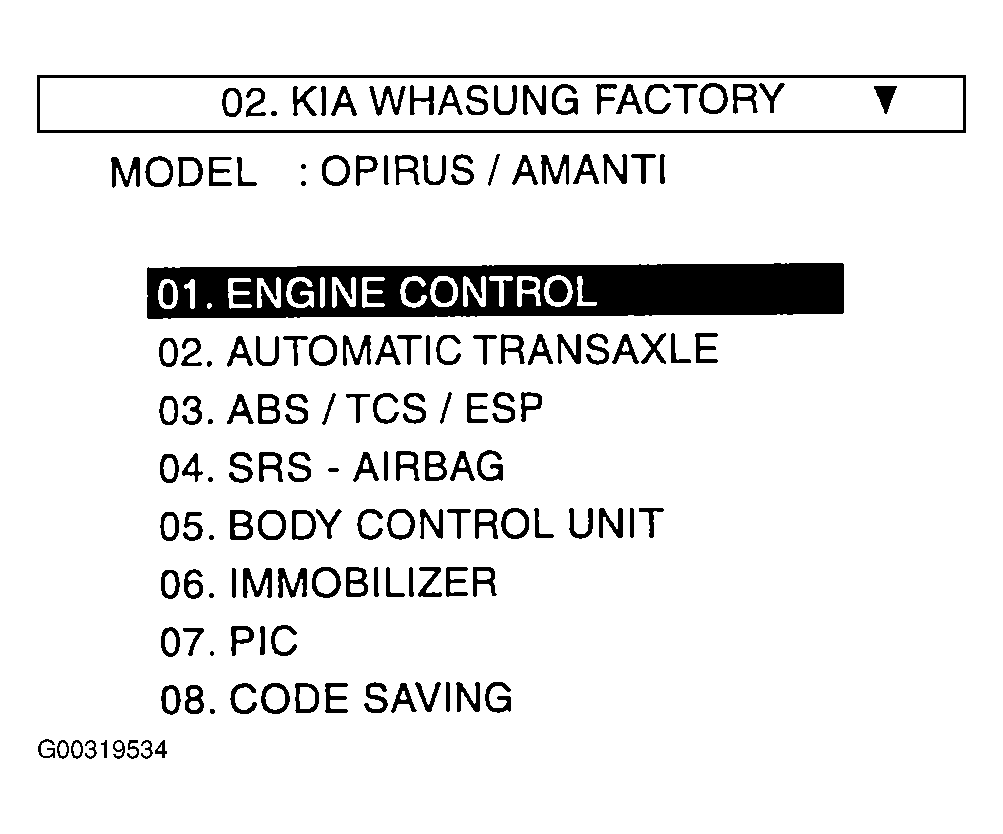

Fig 3: Viewing Hi-Scan PRO "01. ENGINE CONTROL" Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
Select "01. 3.0/3.5L (ETS) USA".

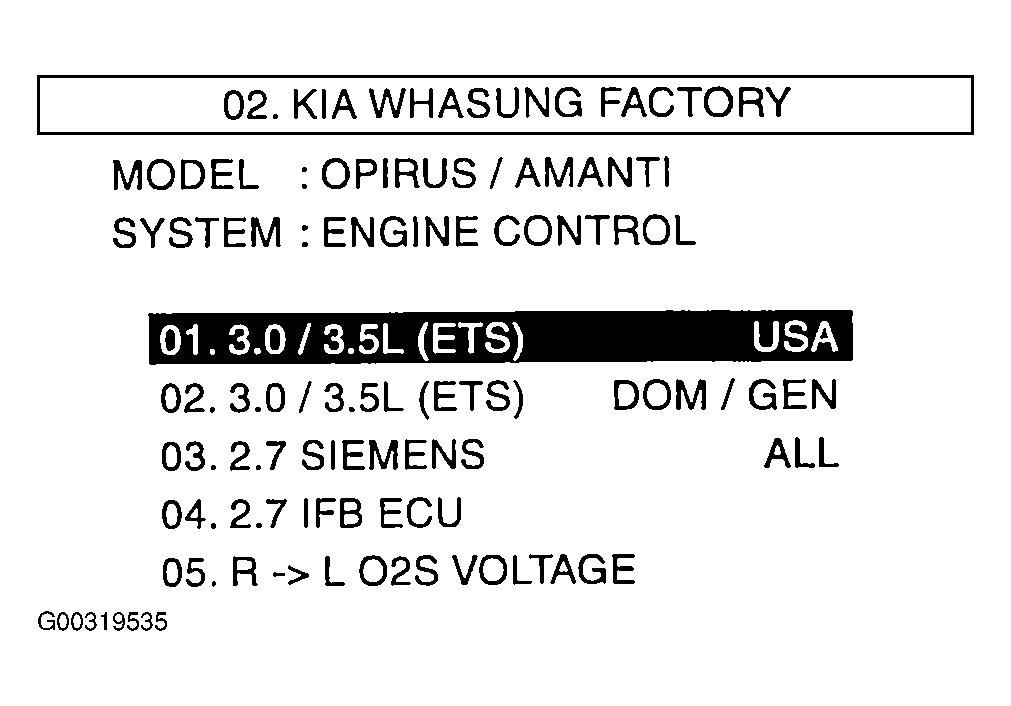

Fig 4: Viewing Hi-Scan PRO "01. 3.0/3.5L (ETS) USA" Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
Select "06. EVAP. LEAKAGE TEST"

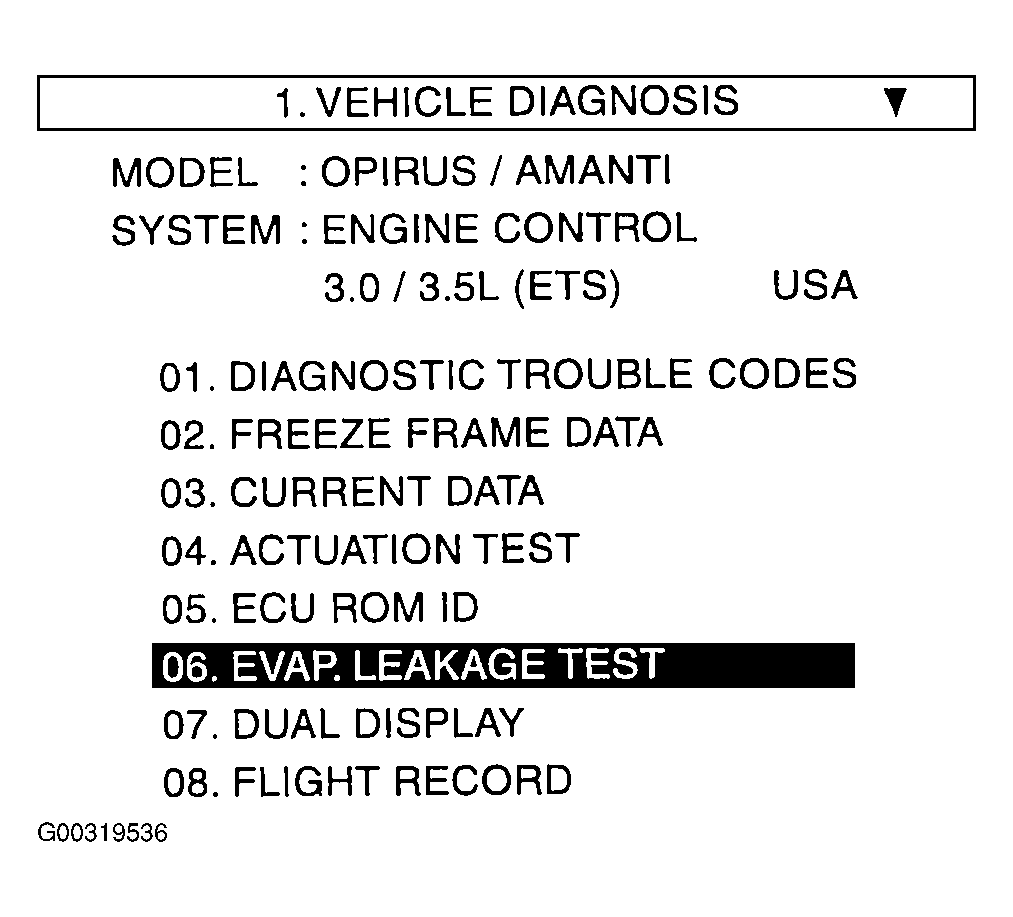

Fig 5: Viewing Hi-Scan PRO "06. EVAP. LEAKAGE TEST" Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
If fault occurs, repair it according to troubleshooting procedure. See Figure .
