Check Engine Coolant Level and ECT Sensor

  1. Check engine coolant level.
  2. If needed, adjust coolant level, then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  3. If engine coolant level is proper, remove and check ECT sensor.
  4. Measure resistance between terminals 1 and 3 of the ECT sensor harness connector.
    1. Specification:
      TEMPERATURE AND RESISTANCE SPECIFICATIONS

      Temperature (°C (°F)) -30 (-22 °F) -20 (-4 °F) 0 (32 °F) 20 (68 °F) 40 (104 °F) 60 (140 °F) 80 (176 °F) 100 (212 °F) 110 (230 °F)
      Resistance (kΩ) 26.74 15.48 5.79 2.45 1.148 0.587 0.322 0.188 0.147
      Voltage (V) 4.39 4.17 3.48 2.56 1.68 1.04 0.63 0.39 0.31

      (error range is 2~3%.)

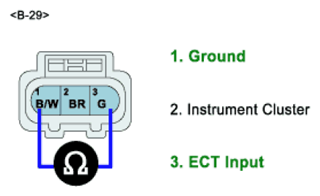

      Fig 1: Measuring Resistance Between Terminals 1 And 3 Of ECT Sensor Harness Connector
      G07330287
  5. Is the ECT sensor within specifications?

    YES

    1. Go to "CHECK THERMOSTAT " as below.

    NO

    1. Check ECT sensor for contamination, deterioration, or damage. Substitute with a known-good ECT sensor and check for proper operation. If the problem is corrected, replace ECT sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
