Communication With Scan Tool Is Not Possible (Cannot Communicate With Any System)
Communication With Scan Tool Is Not Possible (Cannot Communicate With Any System)

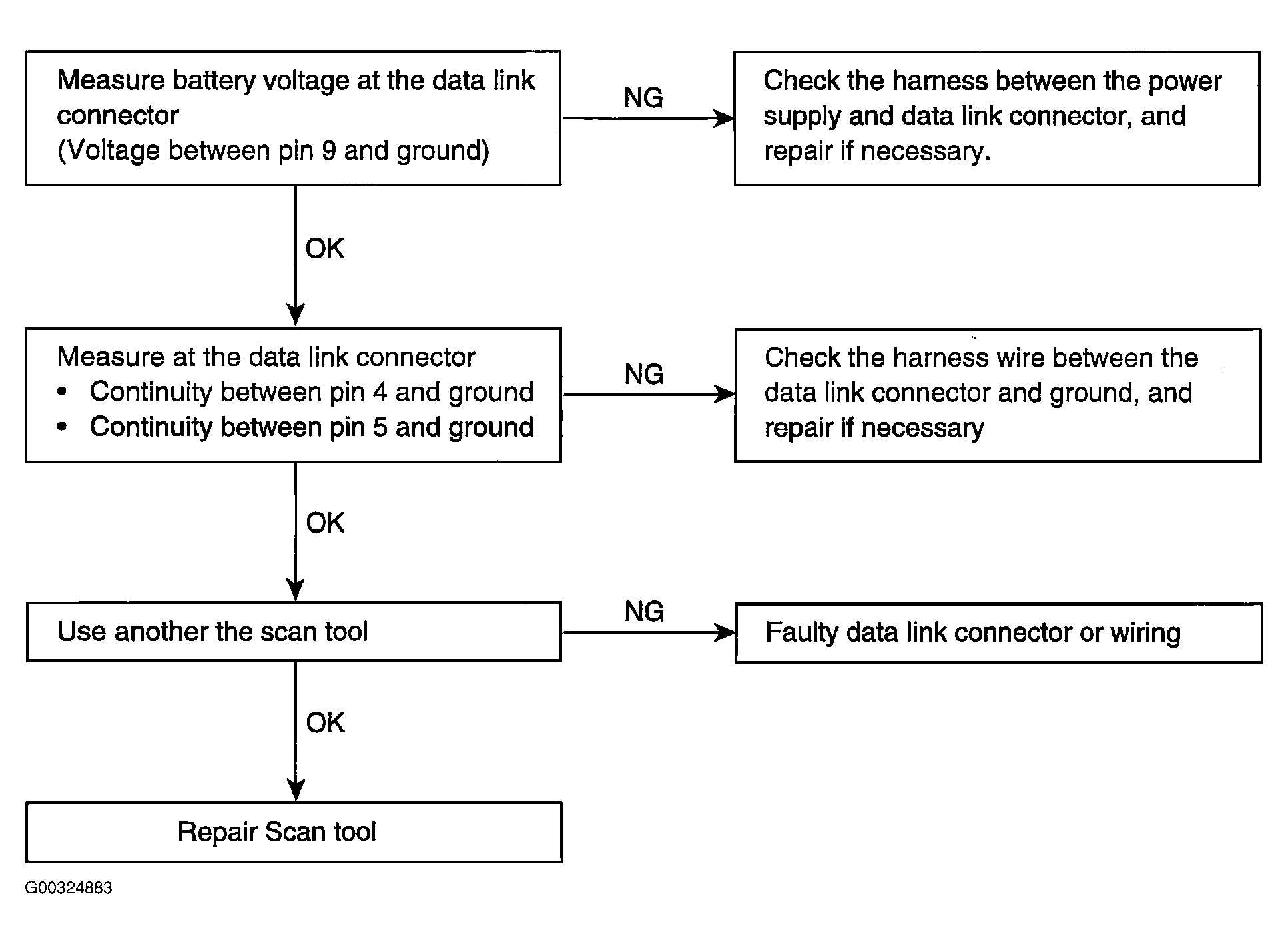

Fig 1: Communication With Scan Tool Is Not Possible Trouble Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
