Difficult To Start (Engine Cranks)

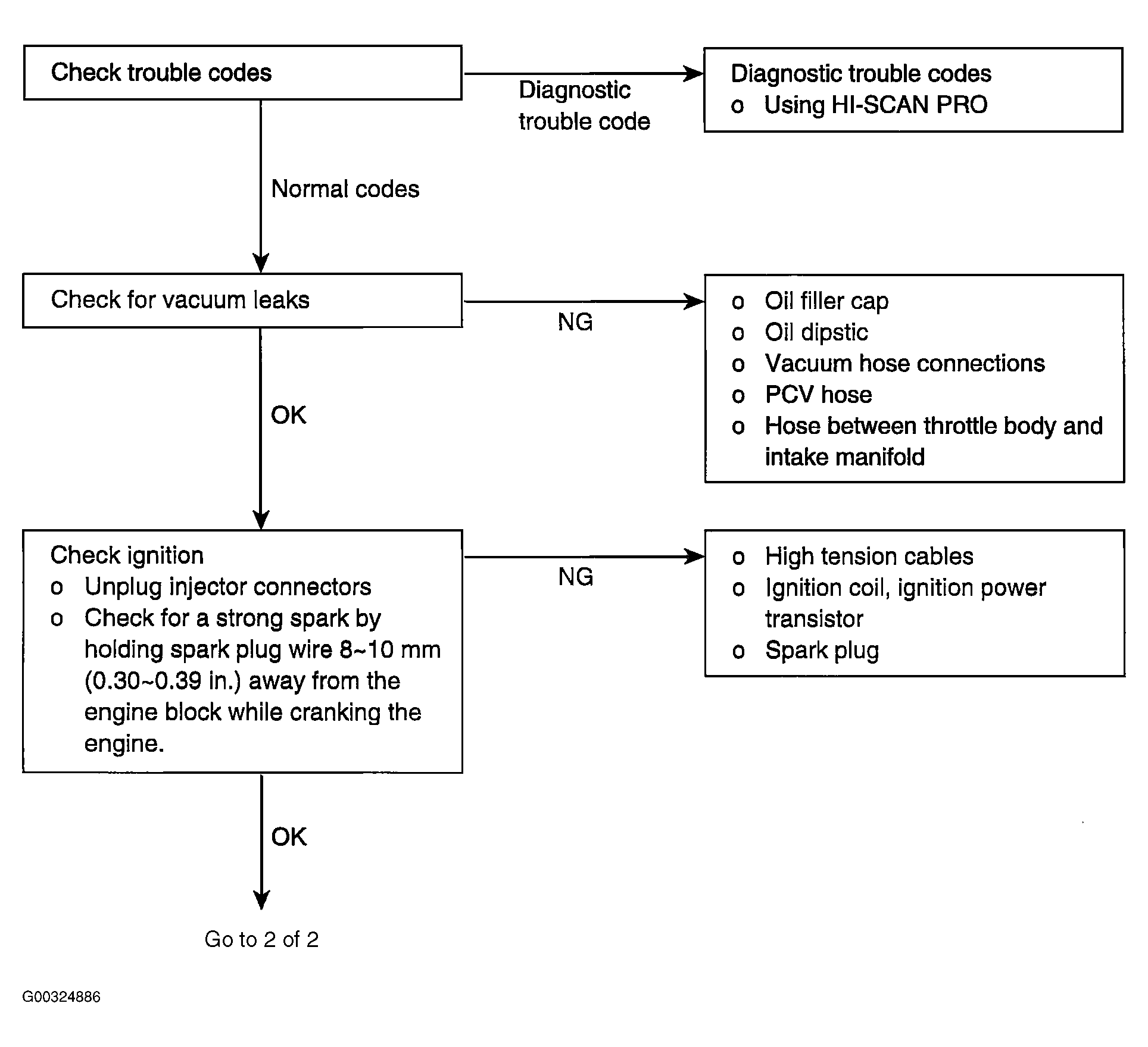

Fig 1: Difficult To Start Trouble Diagram (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

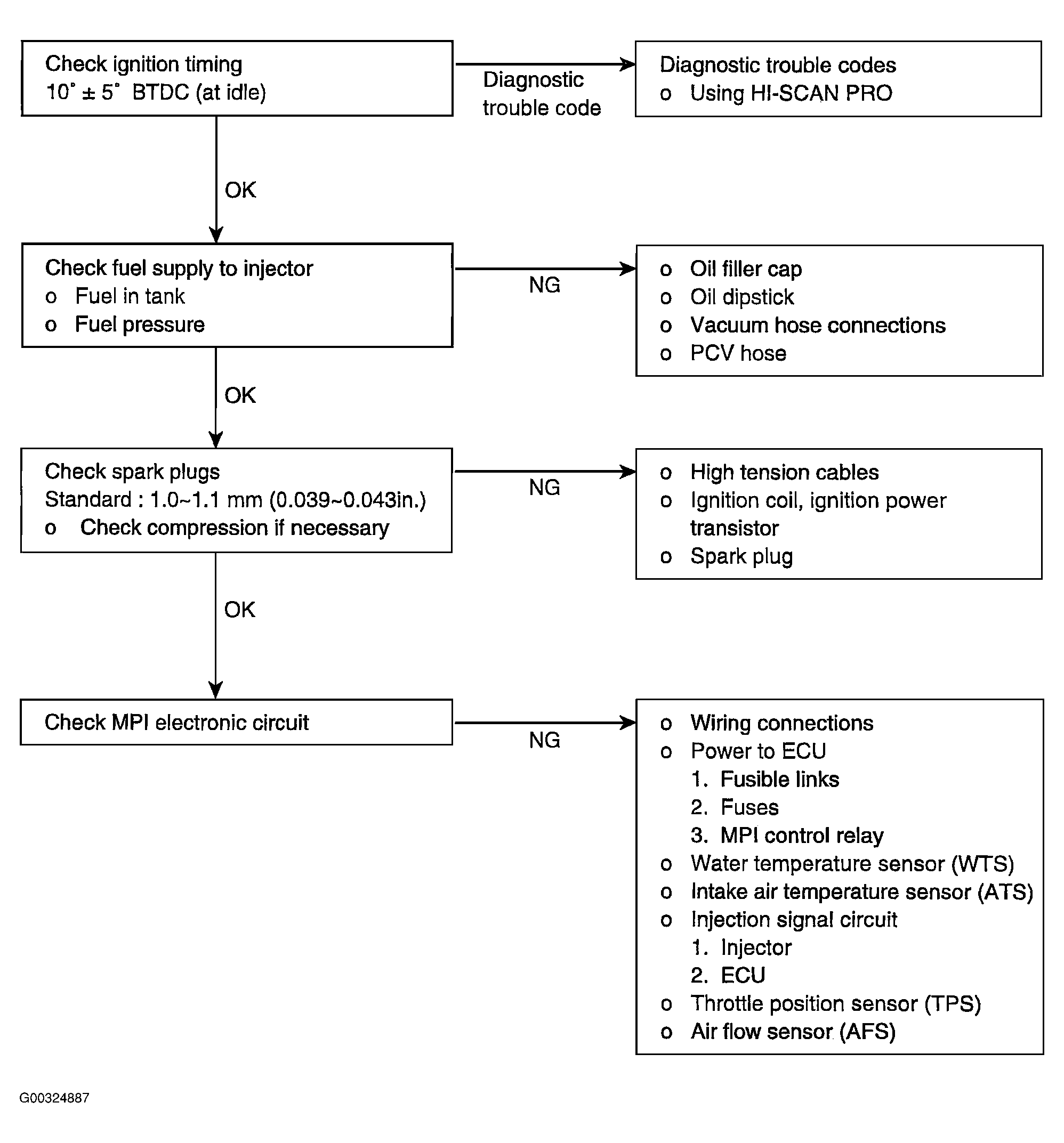

Fig 2: Difficult To Start Trouble Diagram (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
