MPI Troubleshooting Procedures
›
Rough Idle Or Engine Stalls
Rough Idle Or Engine Stalls

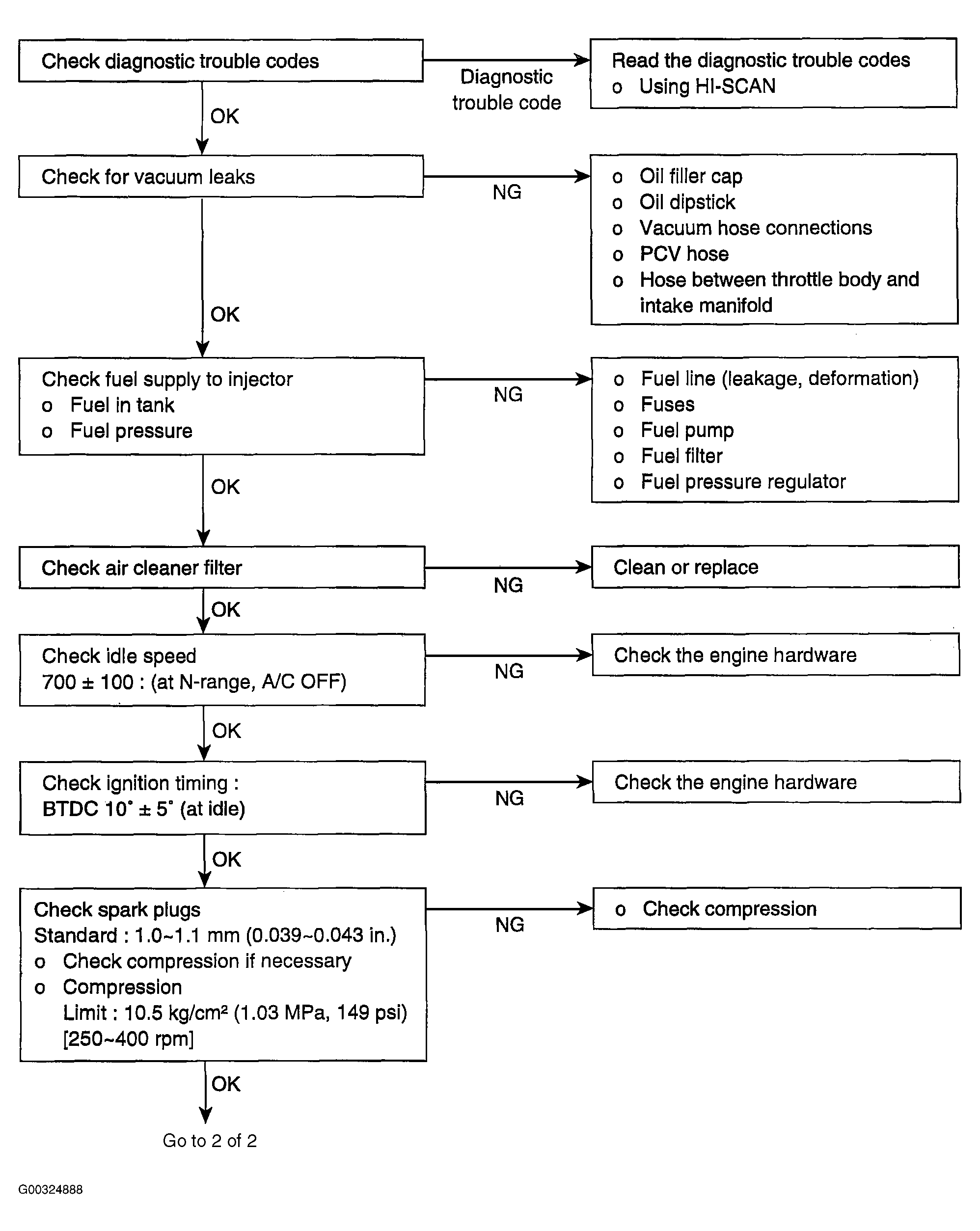

Fig 1: Rough Idle Or Engine Stalls Trouble Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

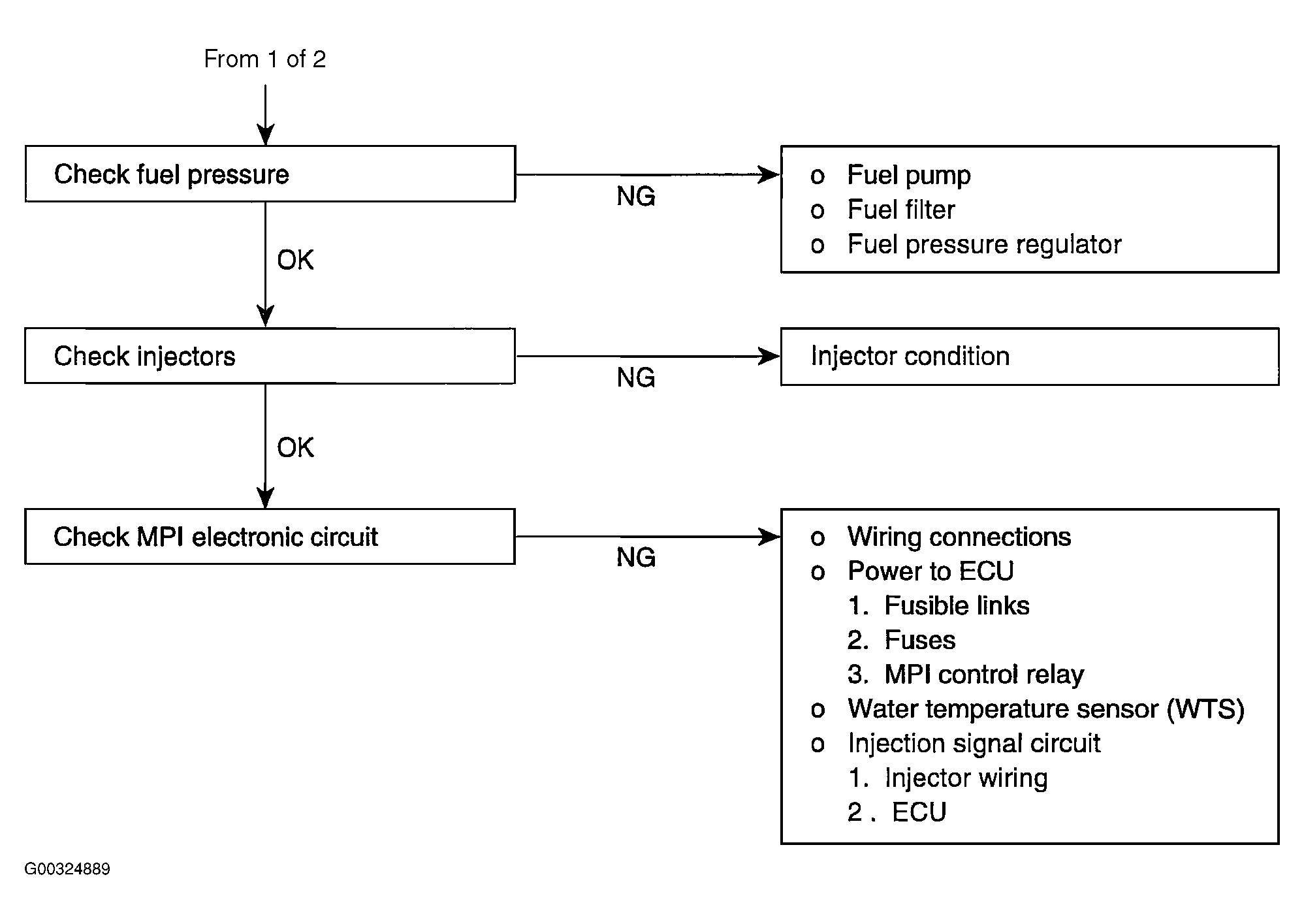

Fig 2: Rough Idle Or Engine Stalls Trouble Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
