Troubleshooting Chart

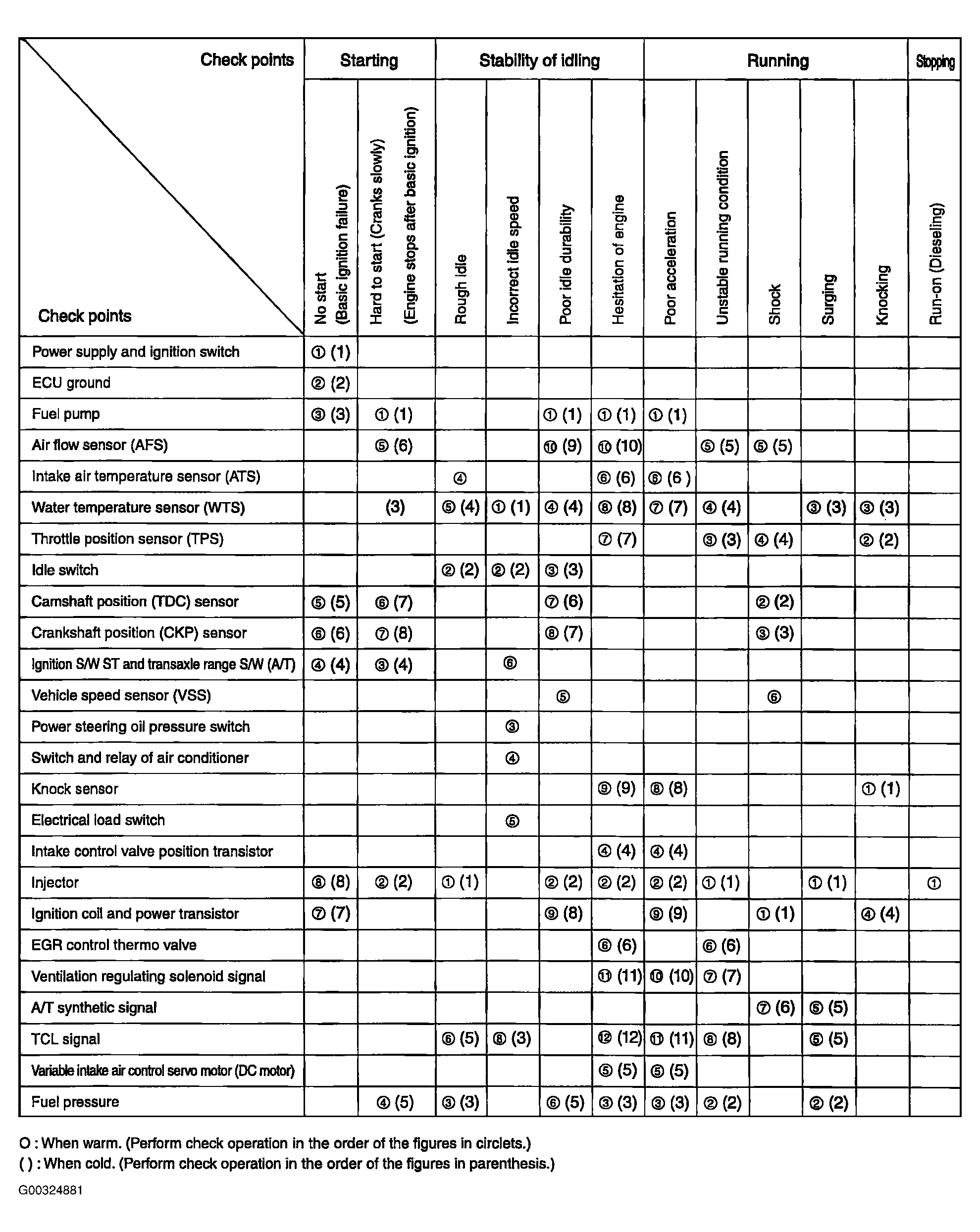

Fig 1: Fuel System Troubleshooting Chart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

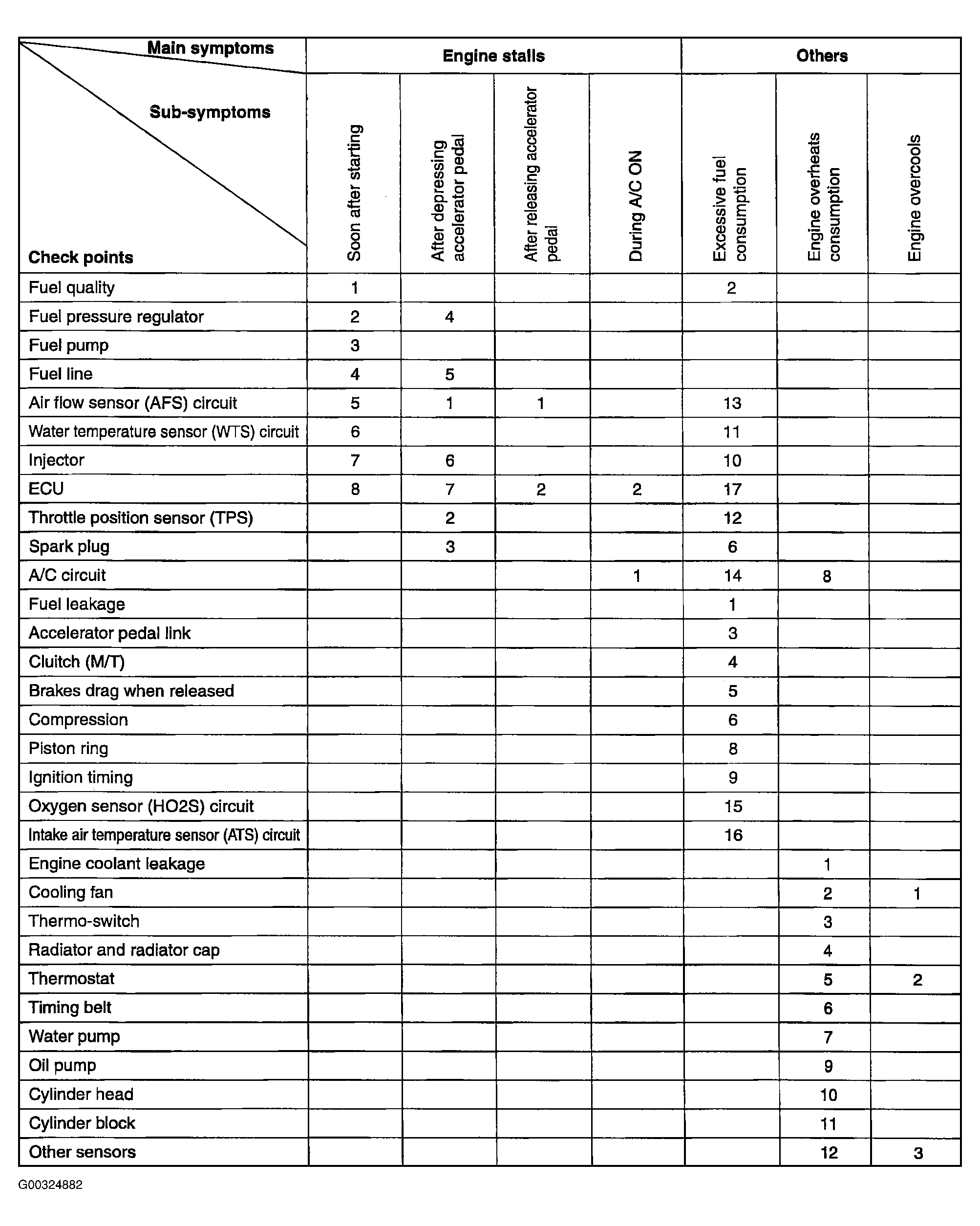

Fig 2: Fuel System Troubleshooting Chart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
