Camshaft Position (TDC) Sensor
›
Circuit Diagram And Output Feature
Circuit Diagram And Output Feature

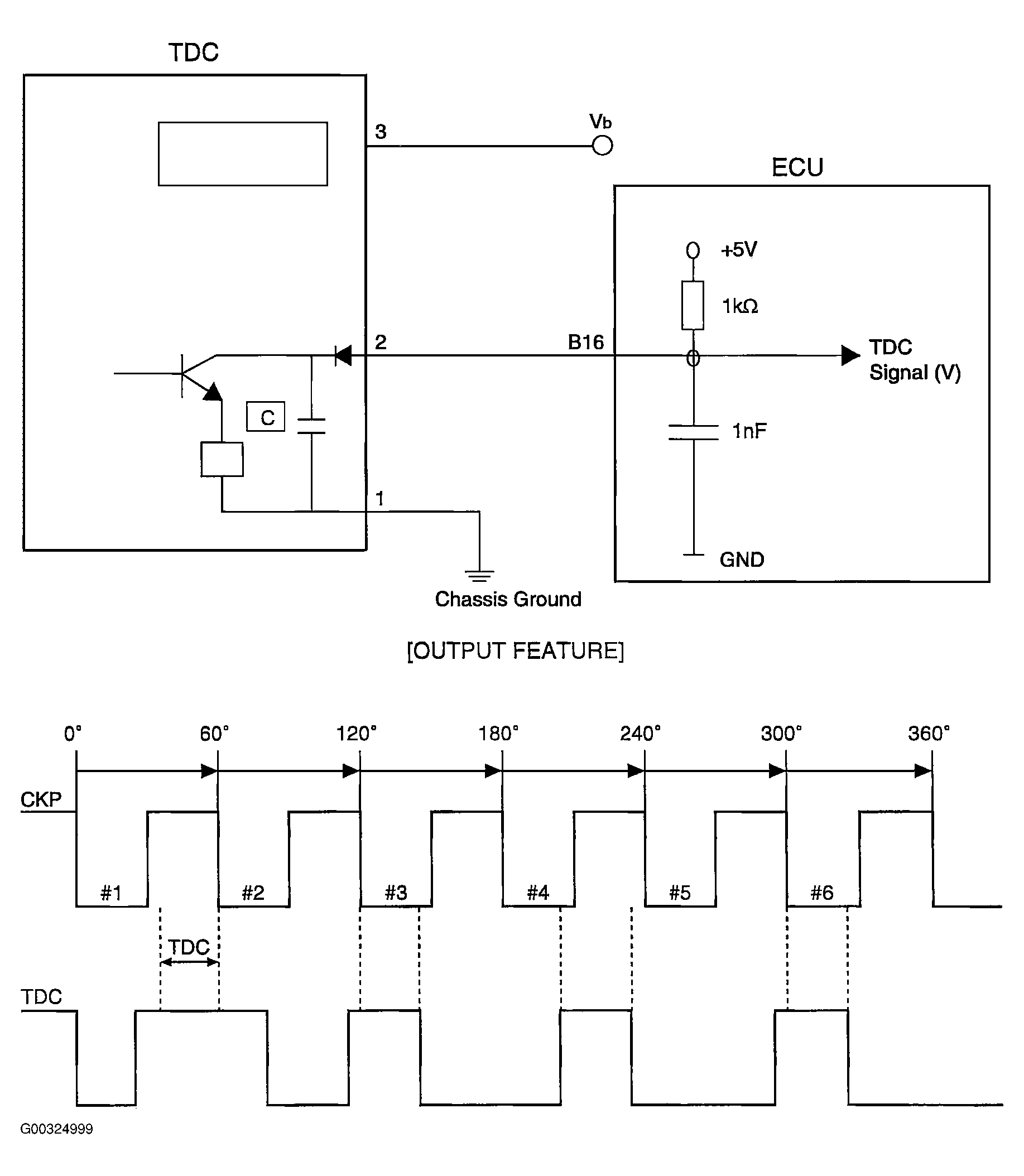

Fig 1: Illustrating TDC Circuit Diagram And Output Feature
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
