Circuit Diagram
Circuit Diagram

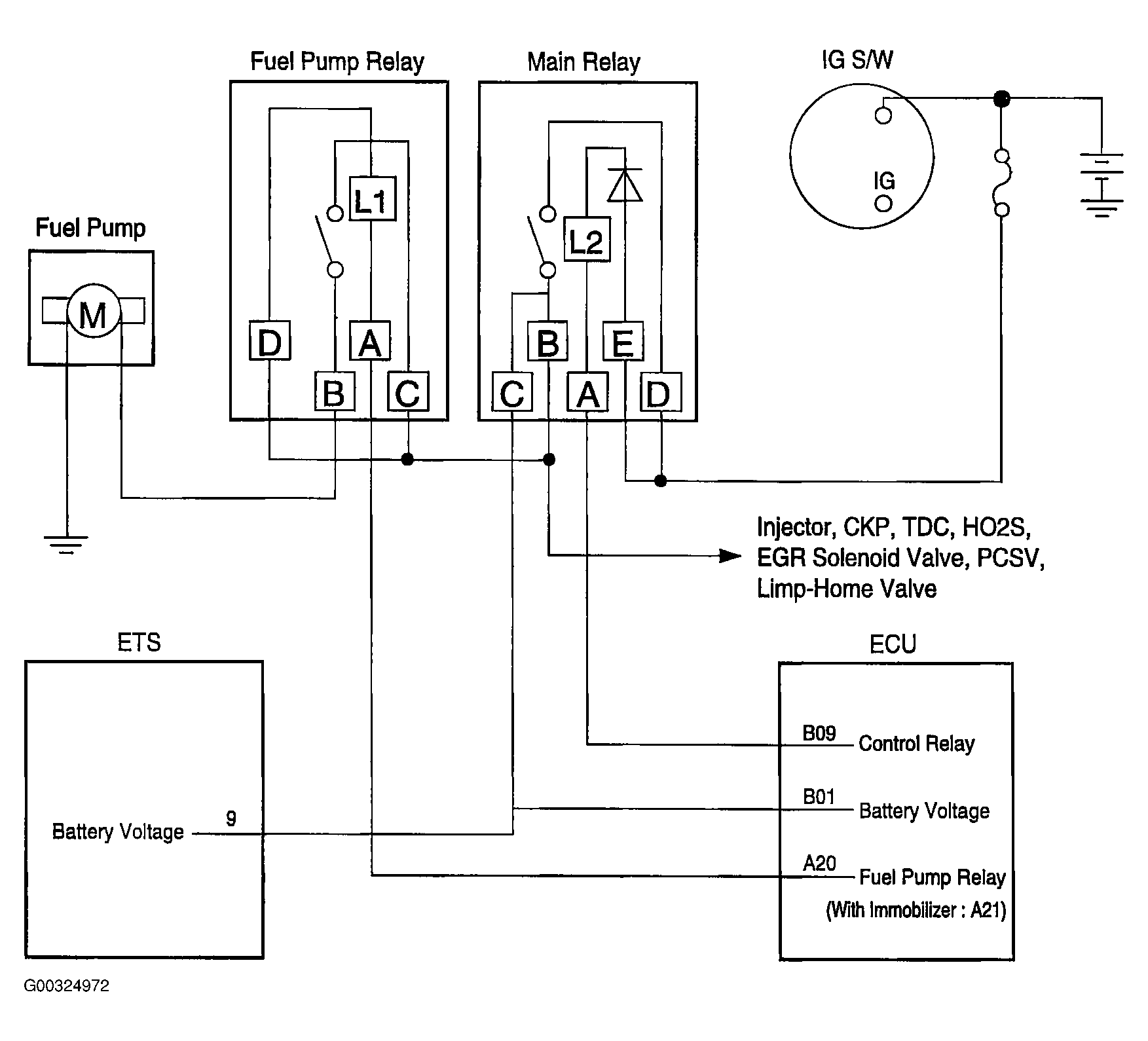

Fig 1: Illustrating Control Relay Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
