Crankshaft Position (CKP) Sensor
›
Harness Connector
Harness Connector

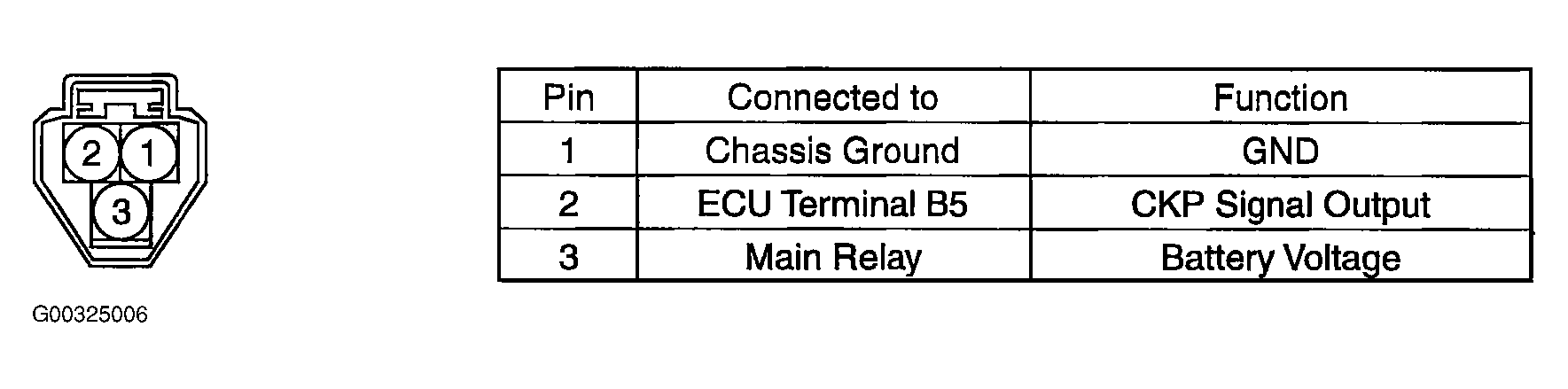

Fig 1: Illustrating CKP Harness Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
