Harness Connector
Harness Connector

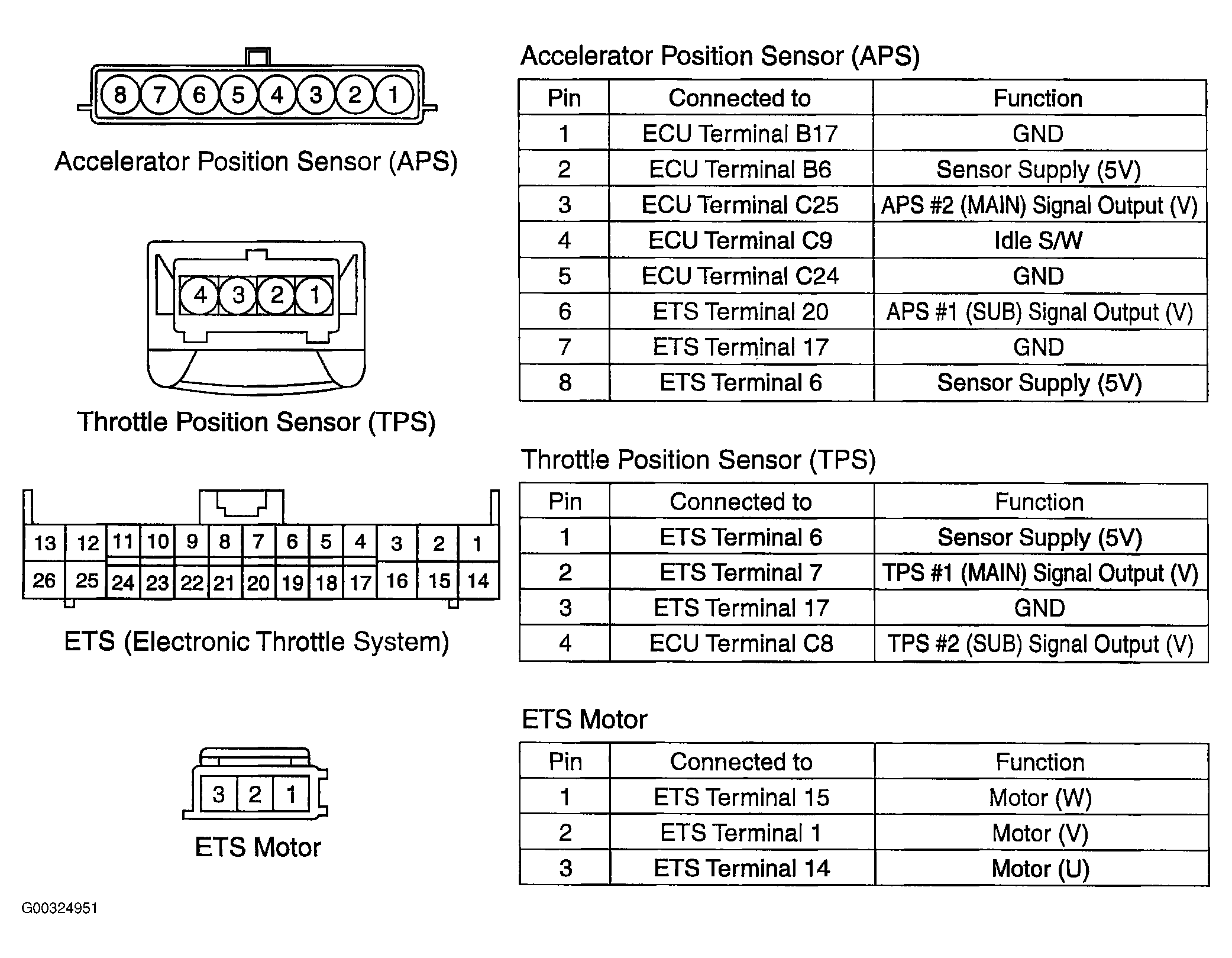

Fig 1: Illustrating (TPS, APS, ETS) Harness Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
