3. Ecu Terminal In/Out Check Sheet

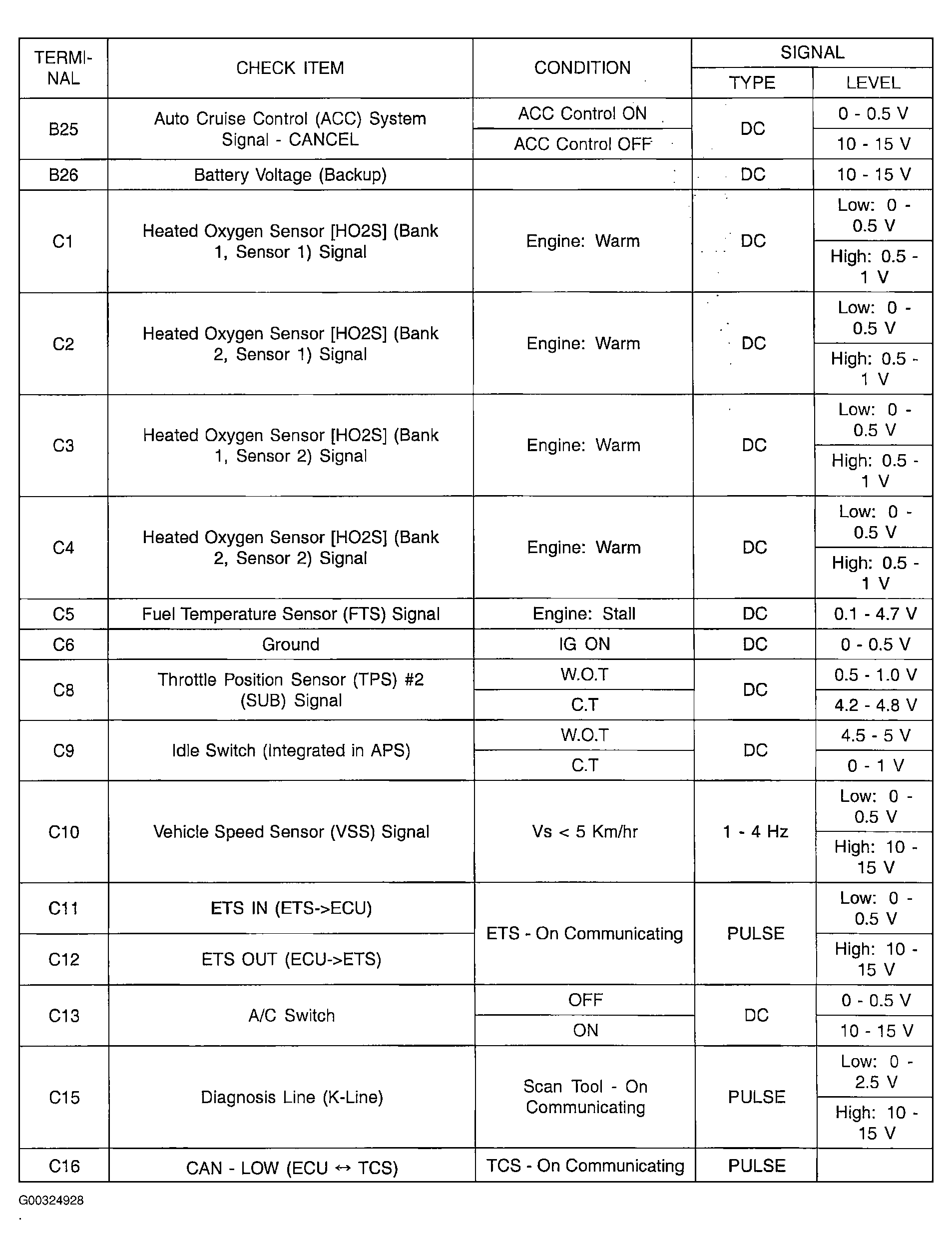

Fig 1: ECM In/Out Condition Chart (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

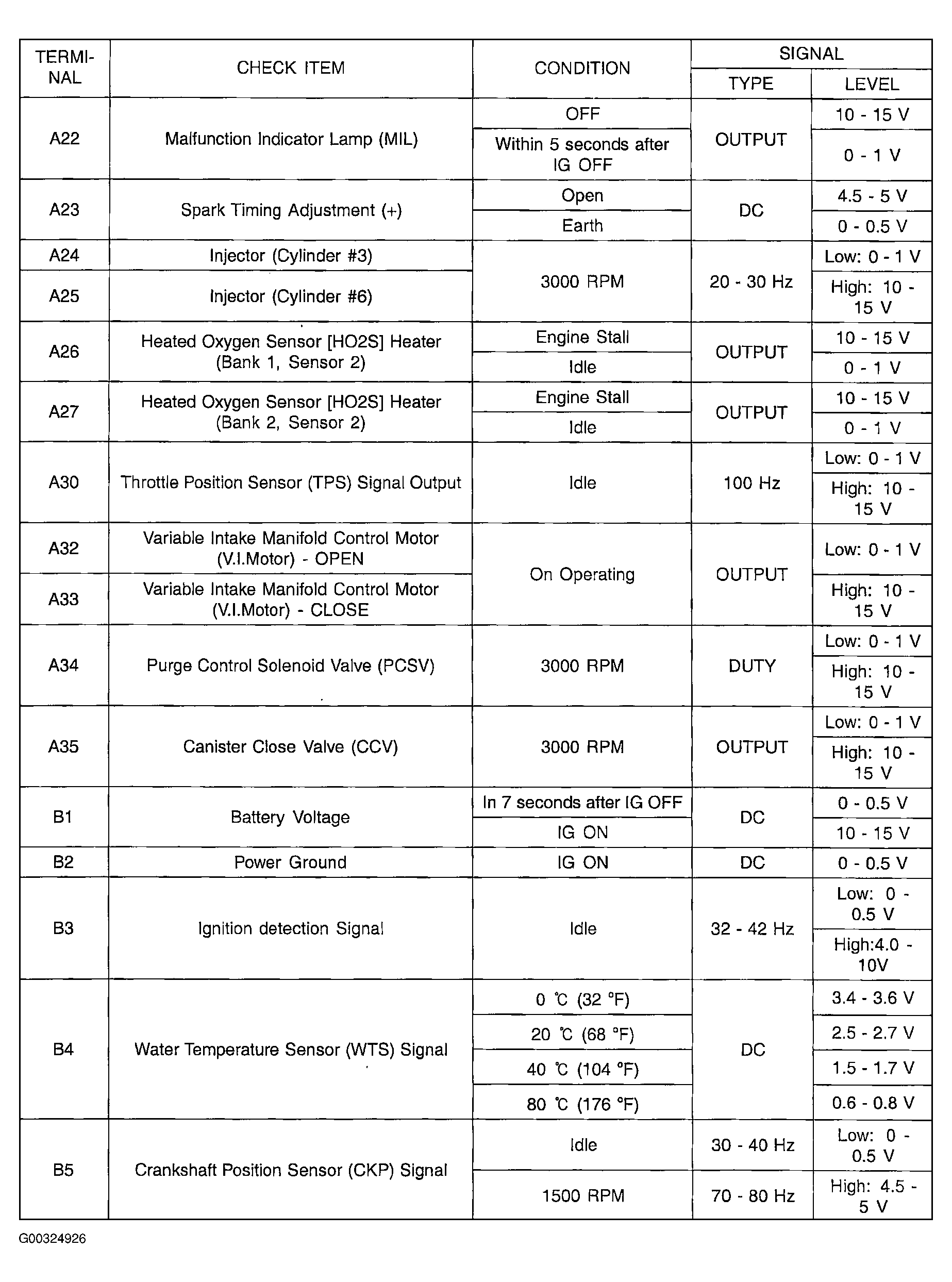

Fig 2: ECM In/Out Condition Chart (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

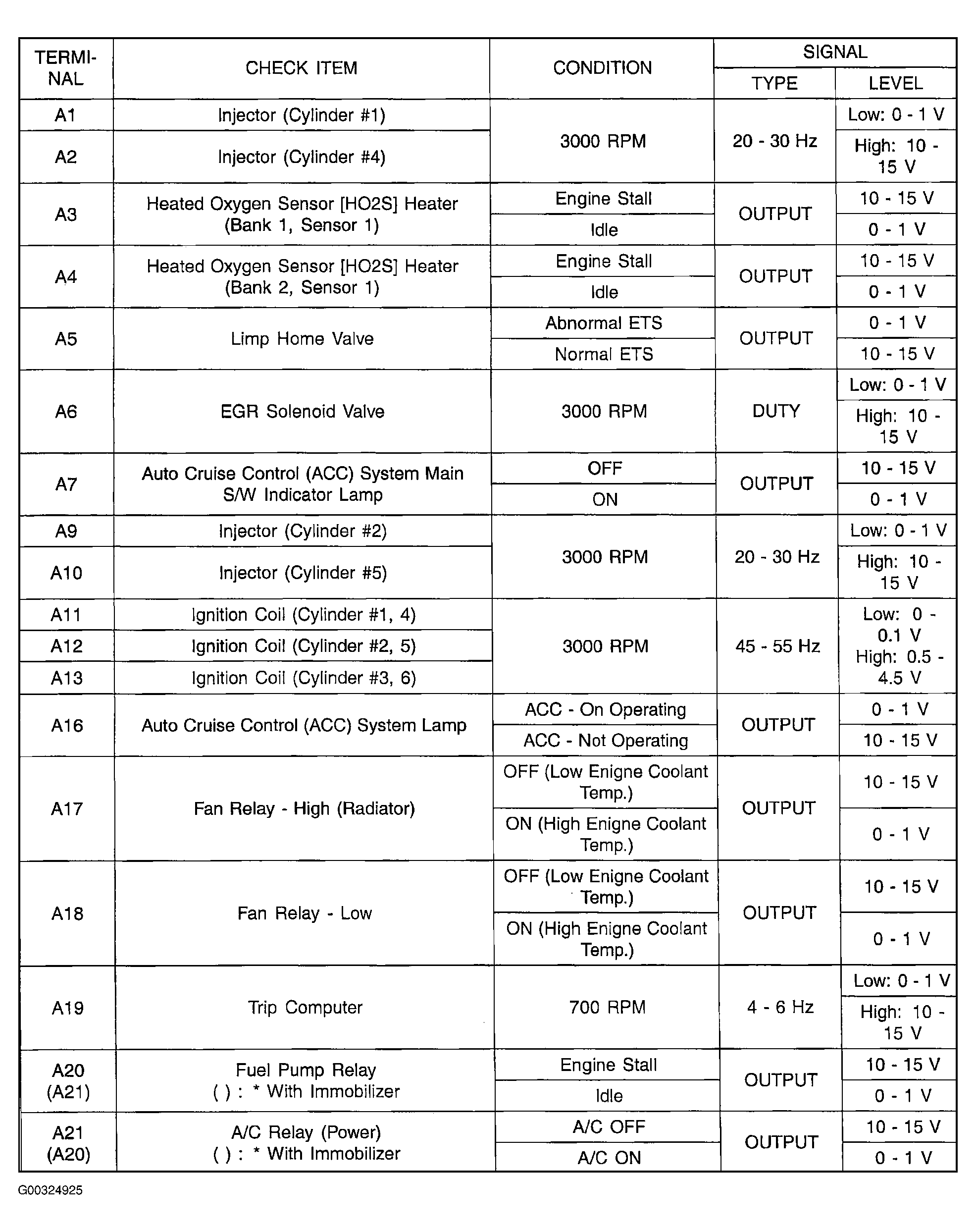

Fig 3: ECM In/Out Condition Chart (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

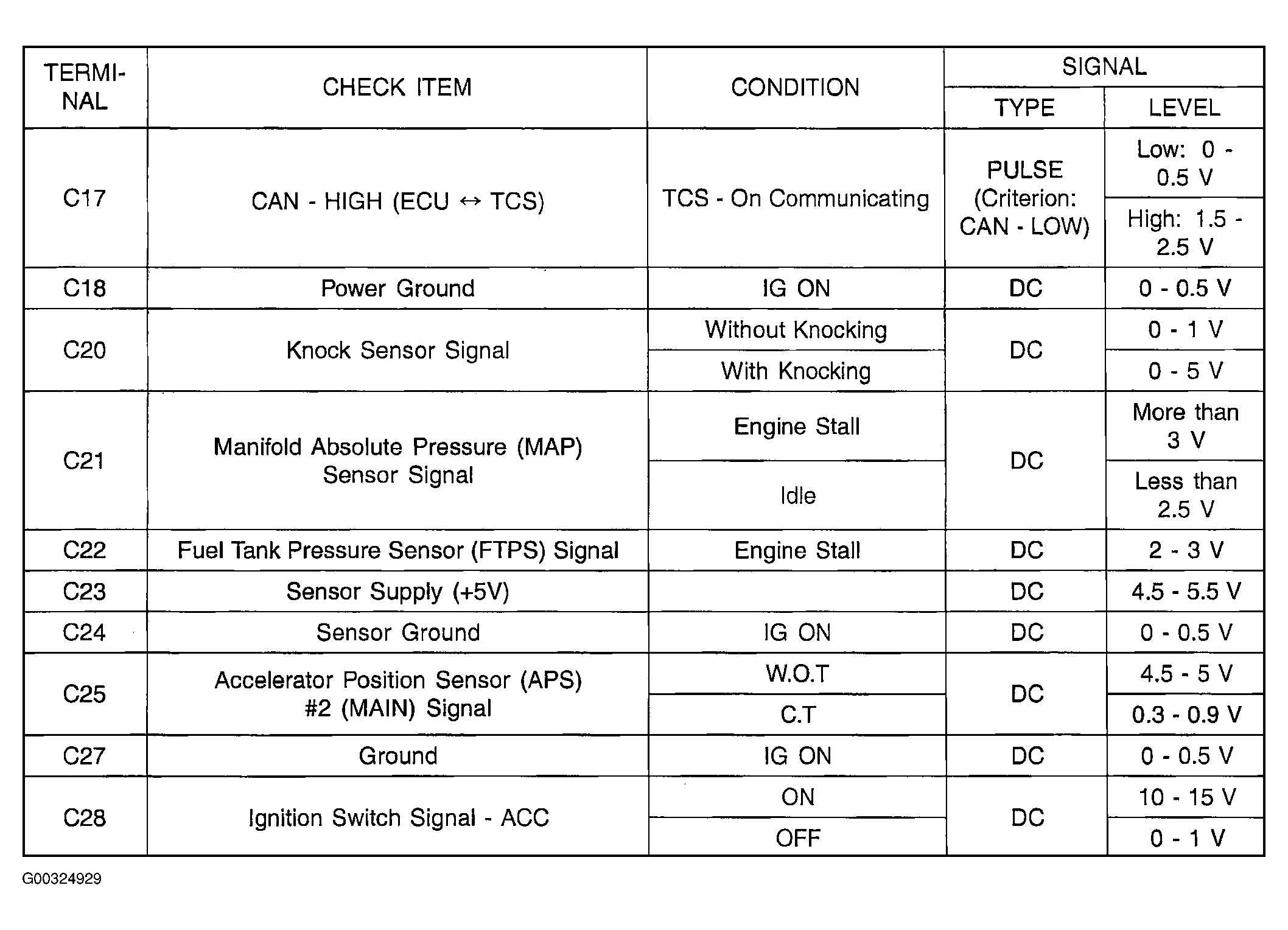

Fig 4: ECM In/Out Condition Chart (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

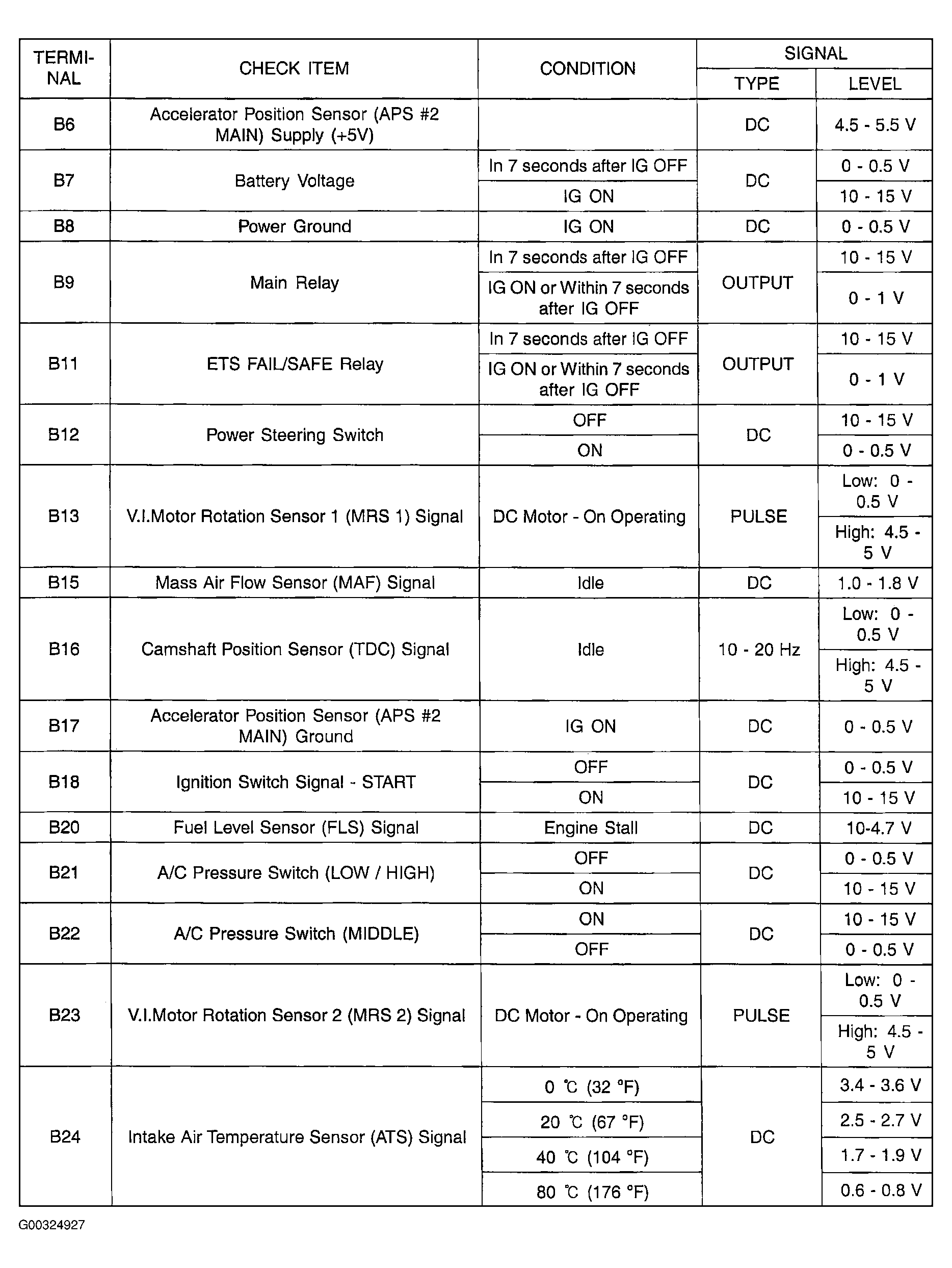

Fig 5: ECM In/Out Condition Chart (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
