Ecu Terminal Function

CONNECTOR (A)

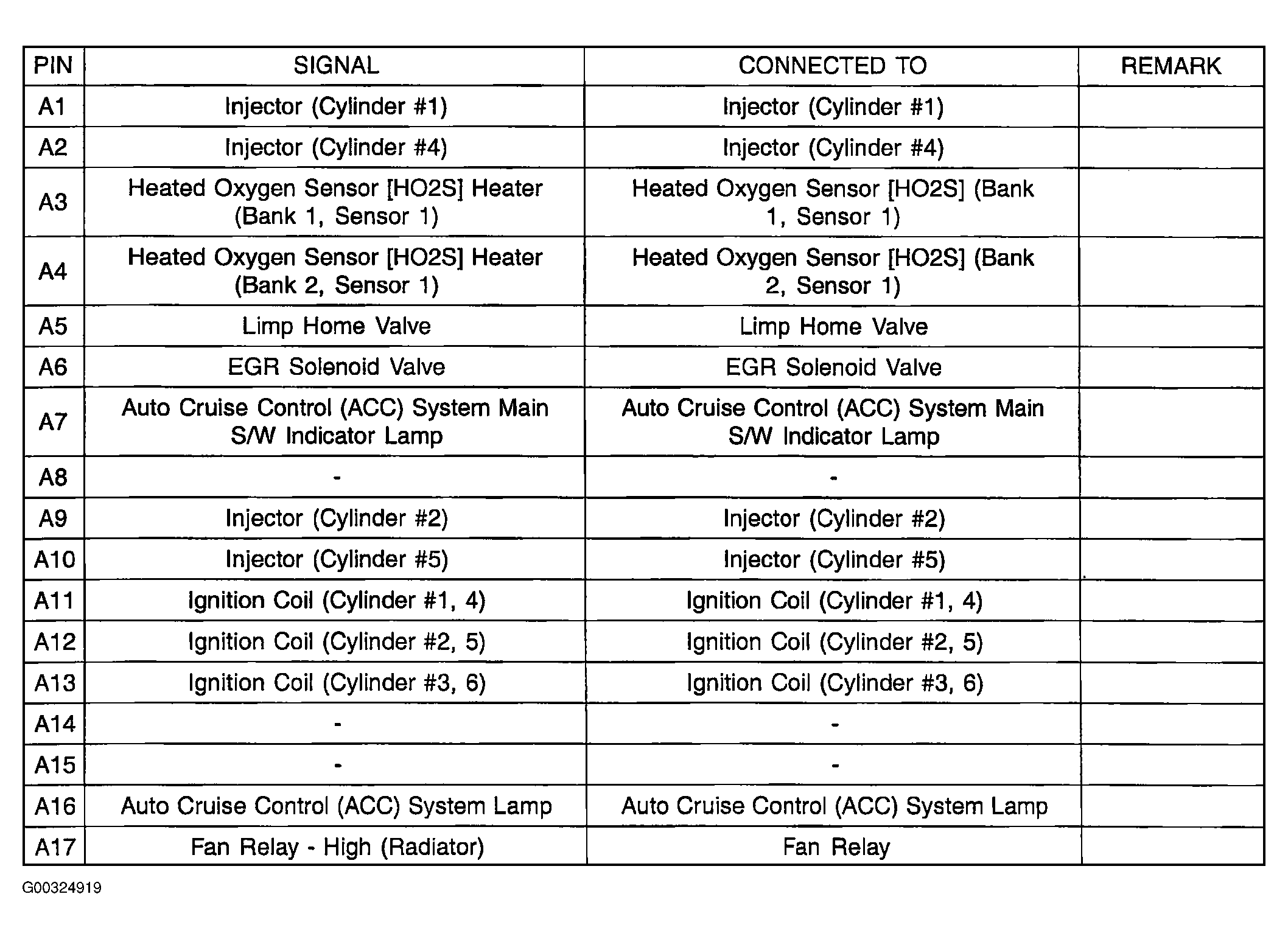

Fig 1: Connector (A) Pin Chart (1 Of 2)

G00324919

Courtesy of KIA MOTORS AMERICA, INC.

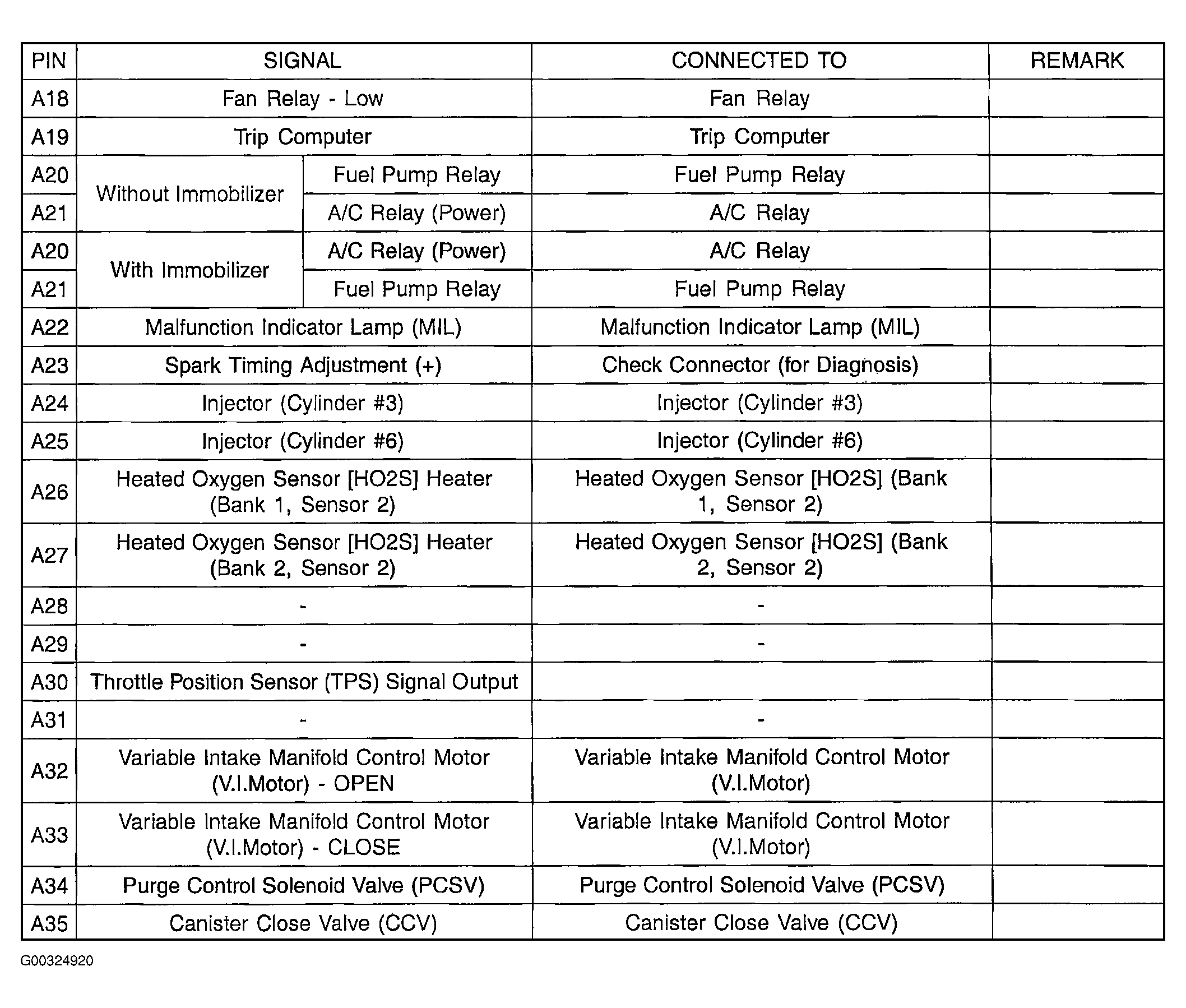

Fig 2: Connector (A) Pin Chart (2 Of 2)

G00324920

Courtesy of KIA MOTORS AMERICA, INC.

CONNECTOR (B)

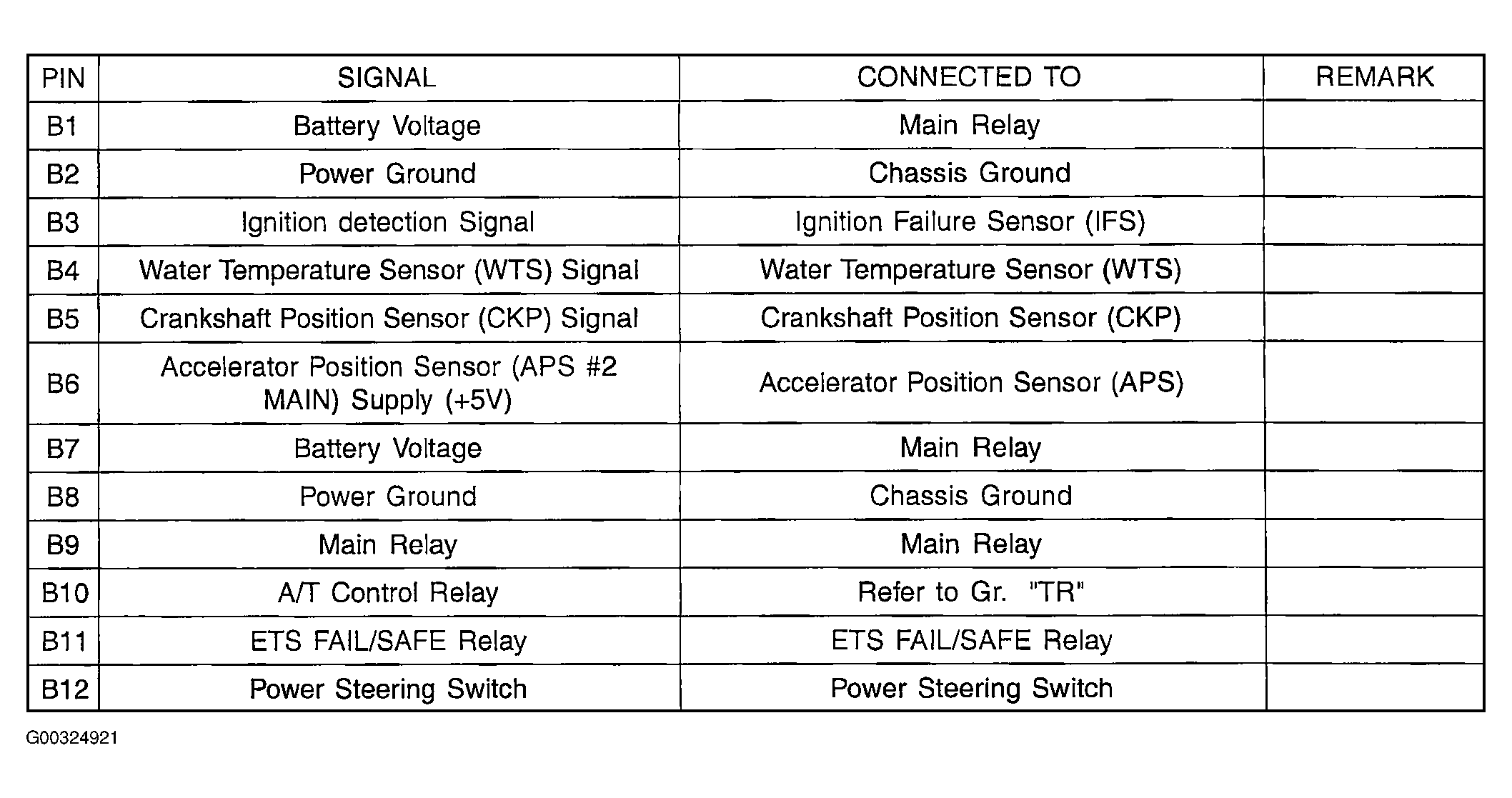

Fig 3: Connector (B) Pin Chart (1 Of 2)

G00324921

Courtesy of KIA MOTORS AMERICA, INC.

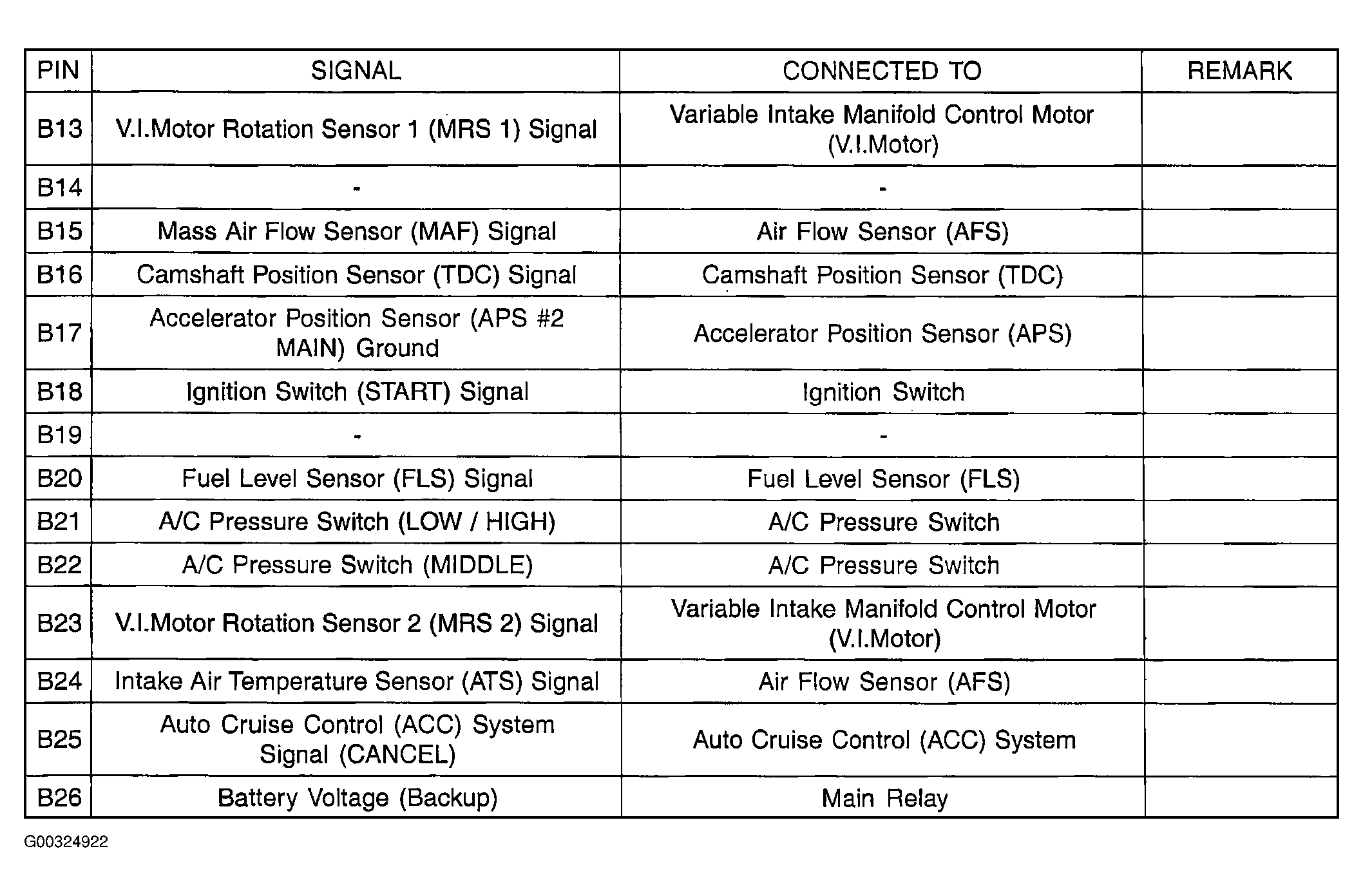

Fig 4: Connector (B) Pin Chart (2 Of 2)

G00324922

Courtesy of KIA MOTORS AMERICA, INC.

CONNECTOR (C)

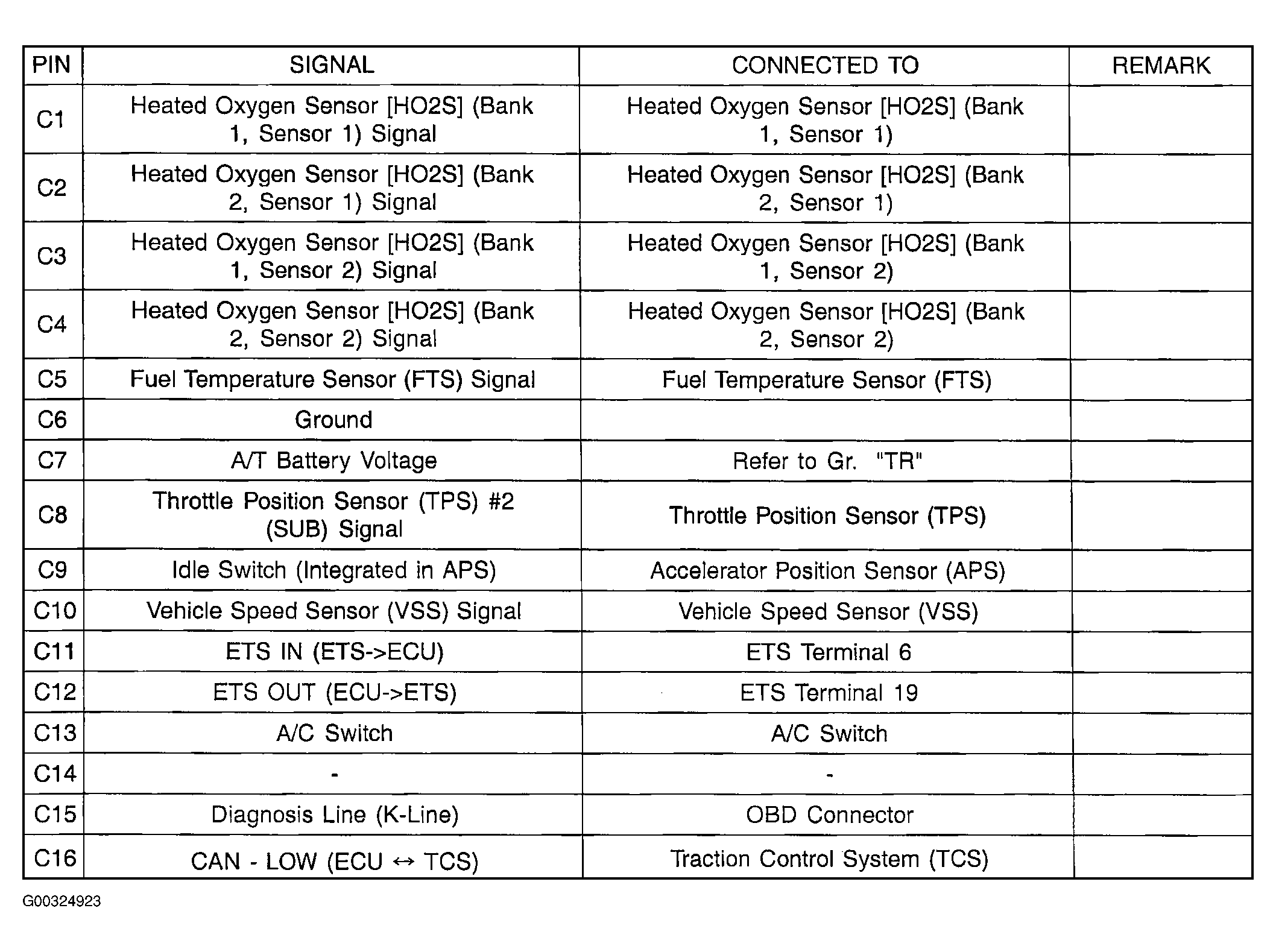

Fig 5: Connector (C) Pin Chart (1 Of 2)

G00324923

Courtesy of KIA MOTORS AMERICA, INC.

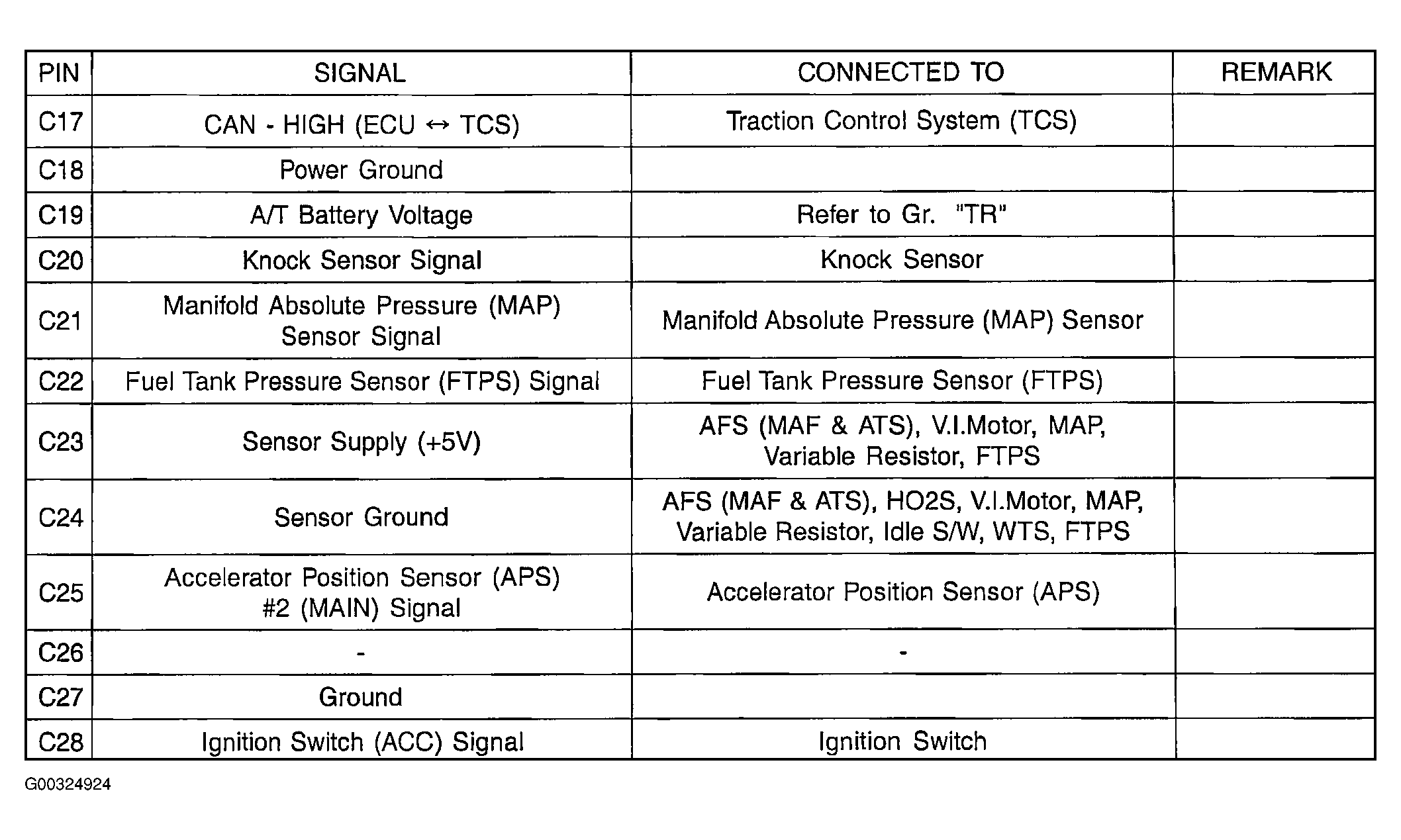

Fig 6: Connector (C) Pin Chart (2 Of 2)

G00324924

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: For CONNECTOR (D), see INPUT/OUTPUT CHART
