Fuel System & Engine Control System
›
MFI Control System
›
Fuel Injector
›
Circuit Diagram
Circuit Diagram

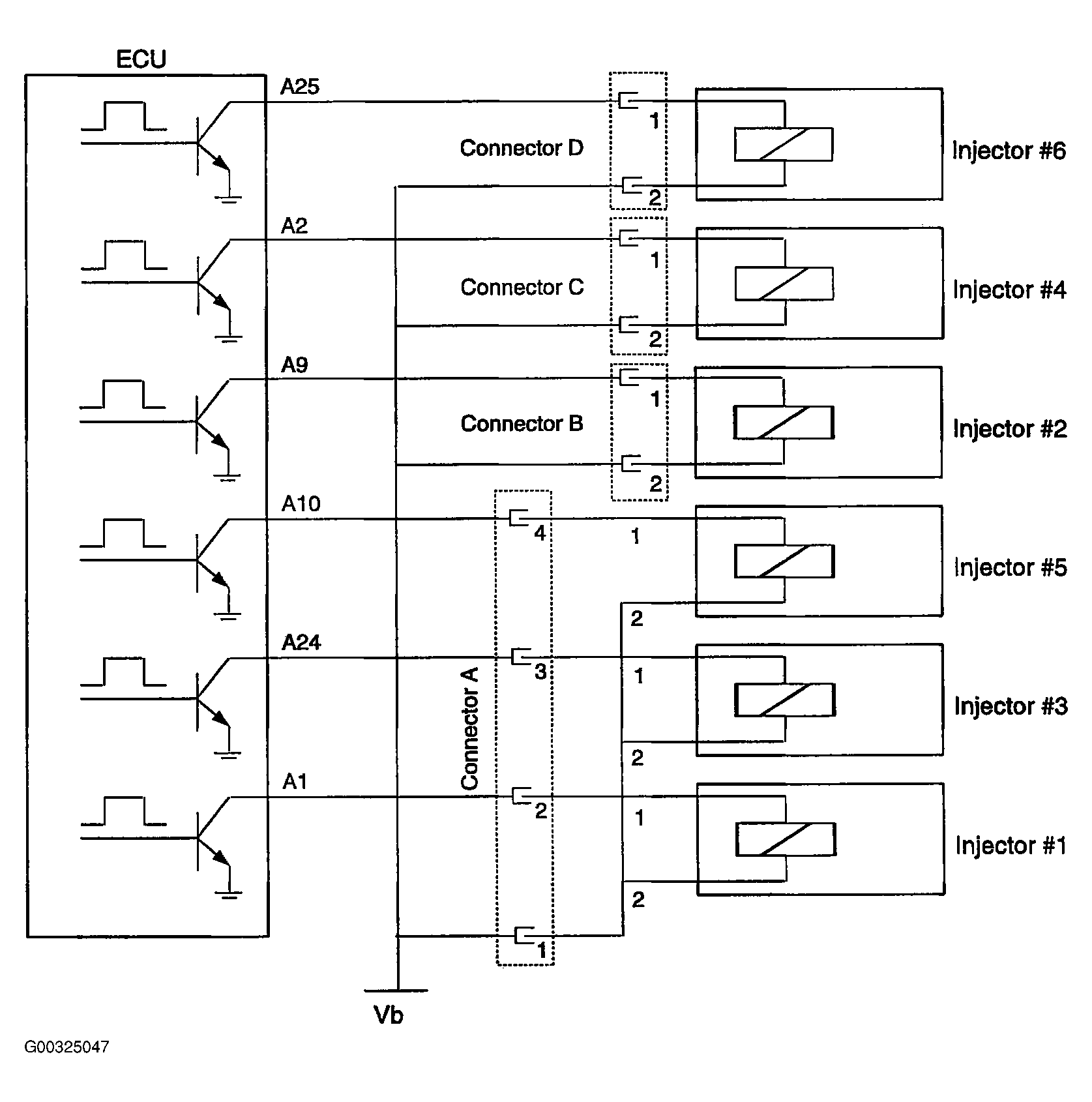

Fig 1: Illustrating Fuel Injector Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
