Fuel Level Sensor (FLS)
›
Harness Connector
Harness Connector

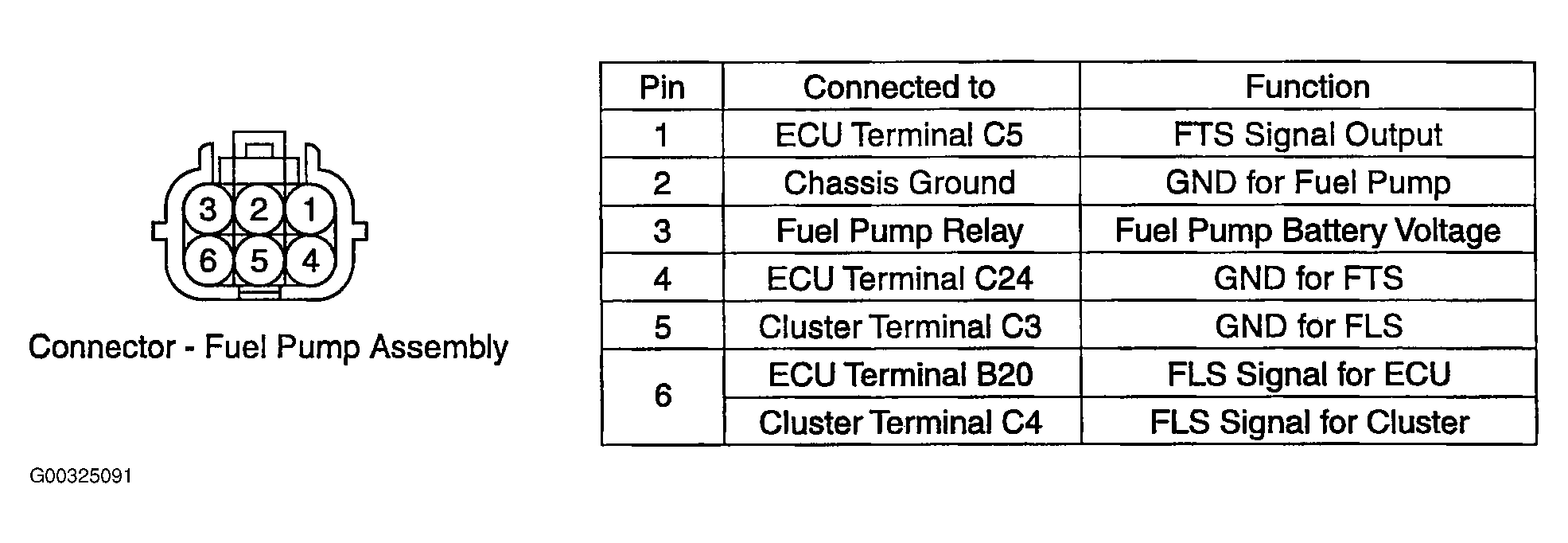

Fig 1: Illustrating FLS Harness Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
