Fuel Tank Temperature Sensor (FTS)
›
Circuit Diagram
Circuit Diagram

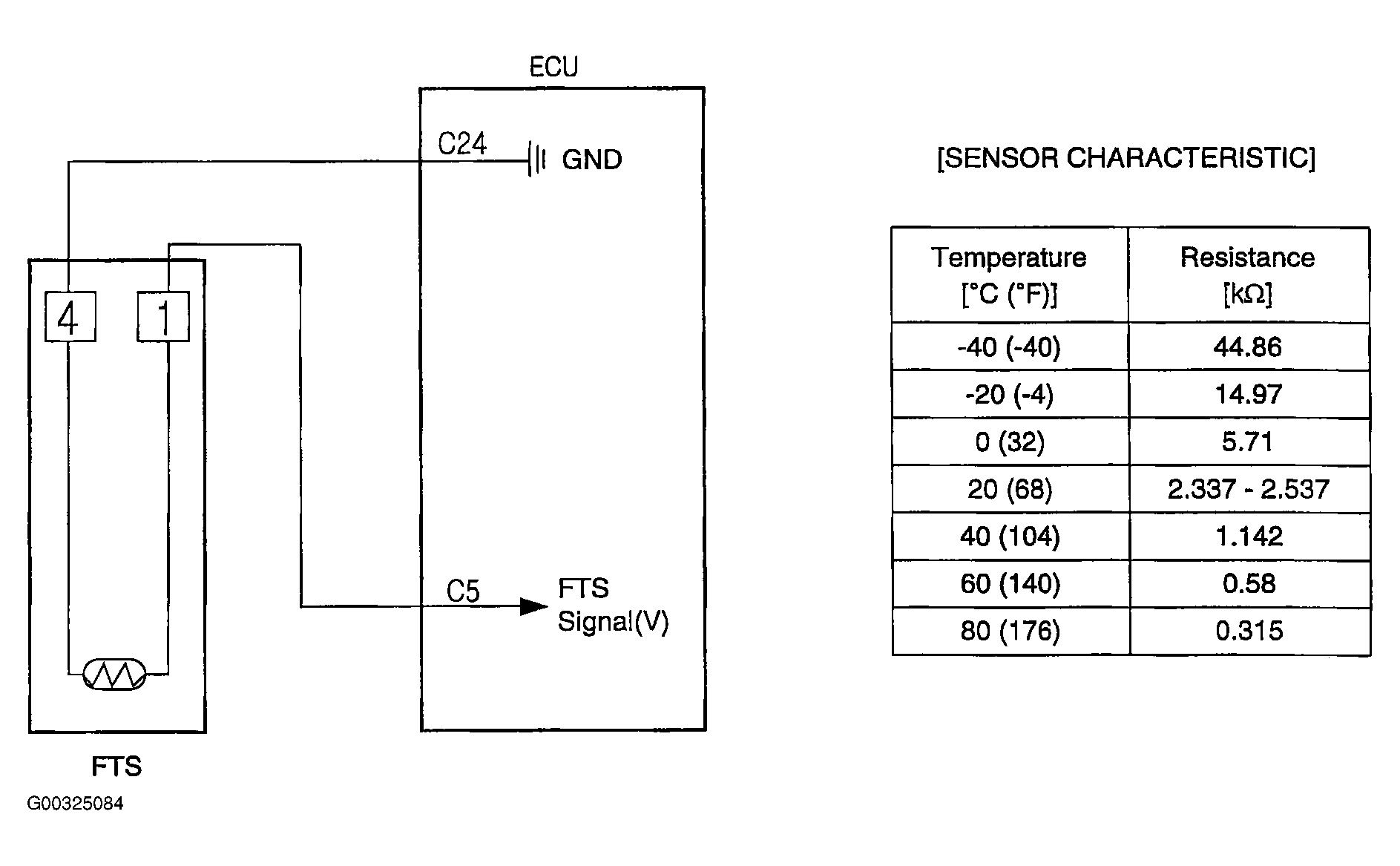

Fig 1: Illustrating FTS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
