Harness Inspection Procedures (WTS)

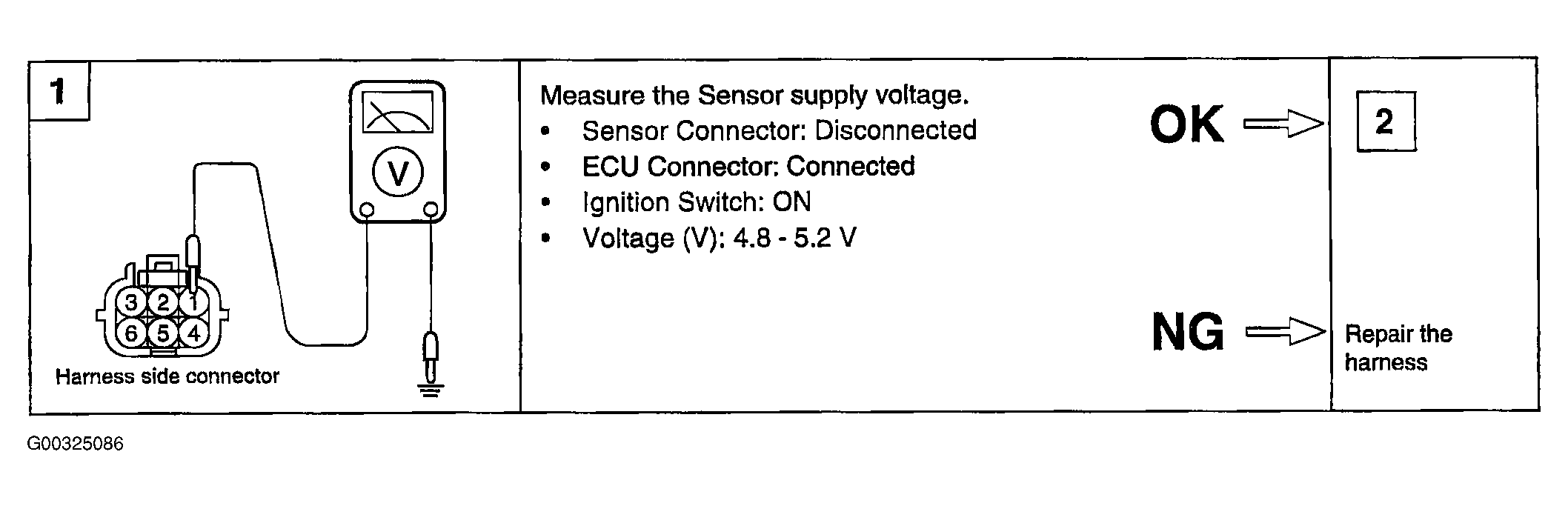

Fig 1: Illustrating FTS Harness Inspection Procedure (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

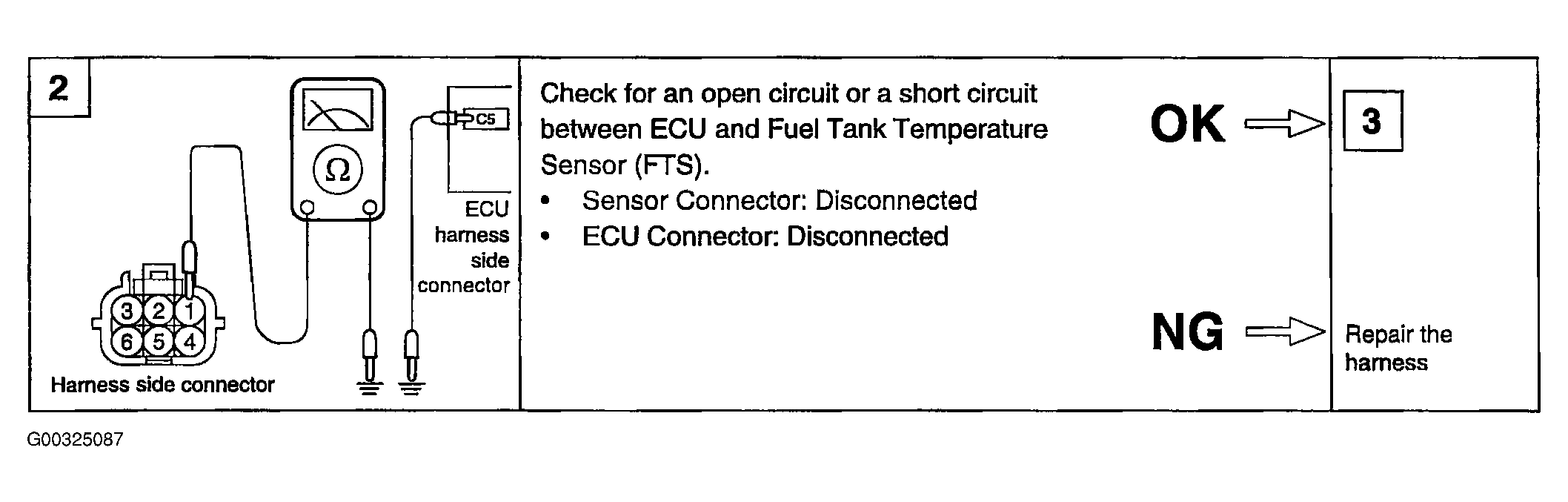

Fig 2: Illustrating FTS Harness Inspection Procedure (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

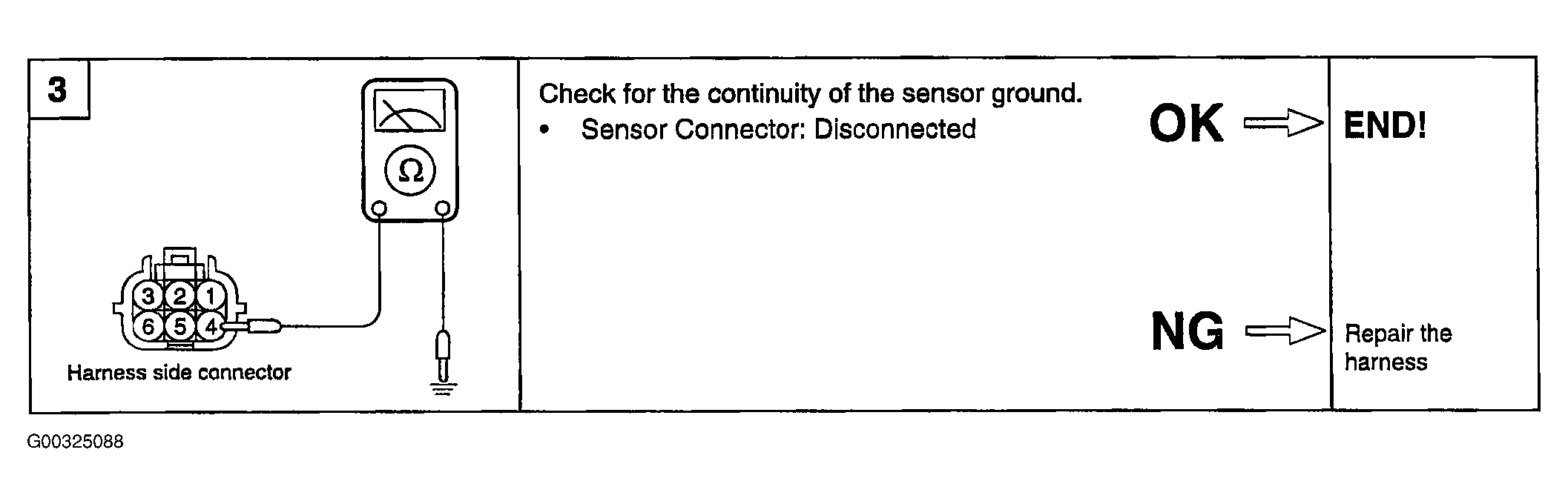

Fig 3: Illustrating FTS Harness Inspection Procedure (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
