Ignition Coil
›
Circuit Diagram
Circuit Diagram

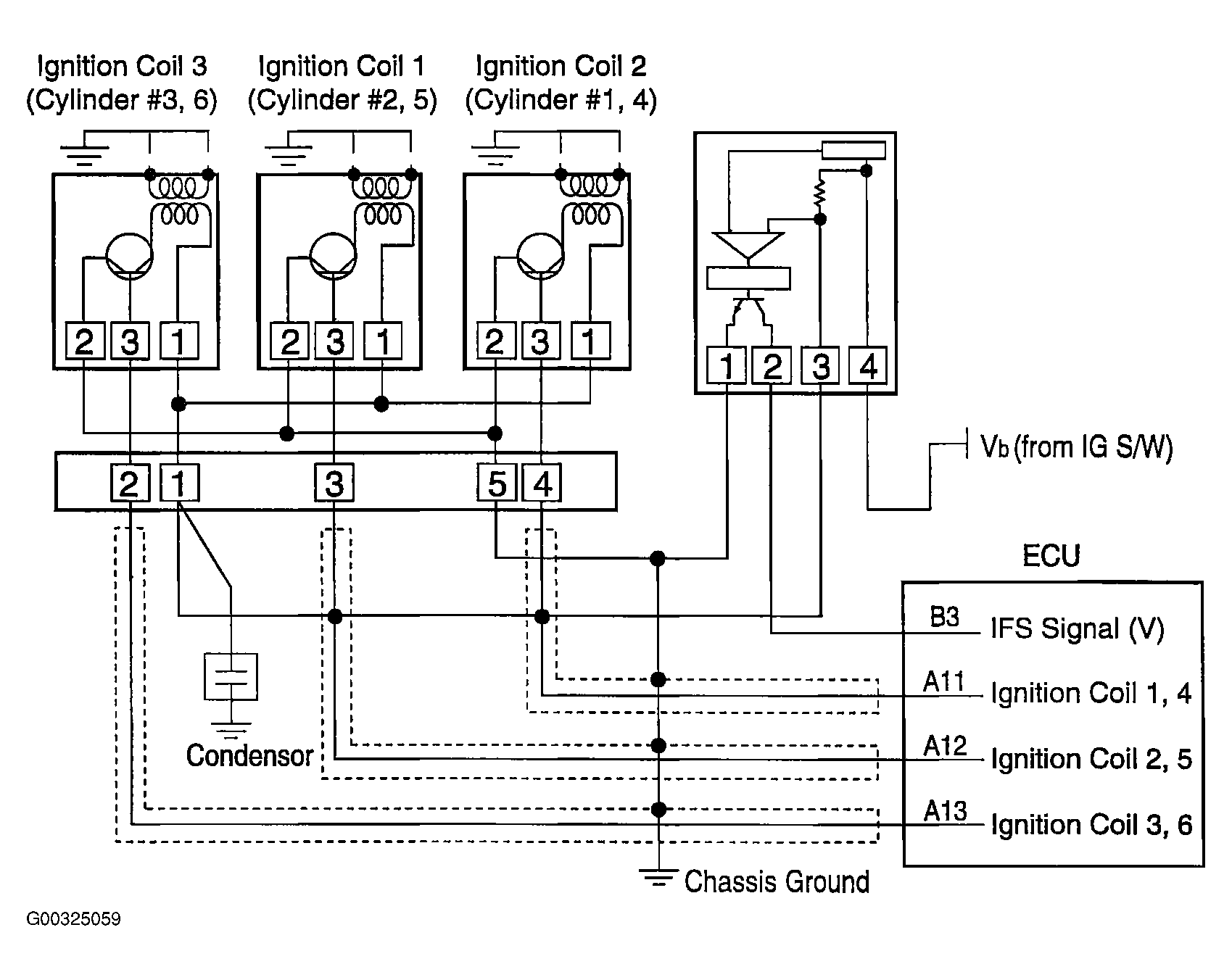

Fig 1: Illustrating Ignition Coils Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
