Manifold Absolute Pressure (Map) Sensor
›
Harness Connector
Harness Connector

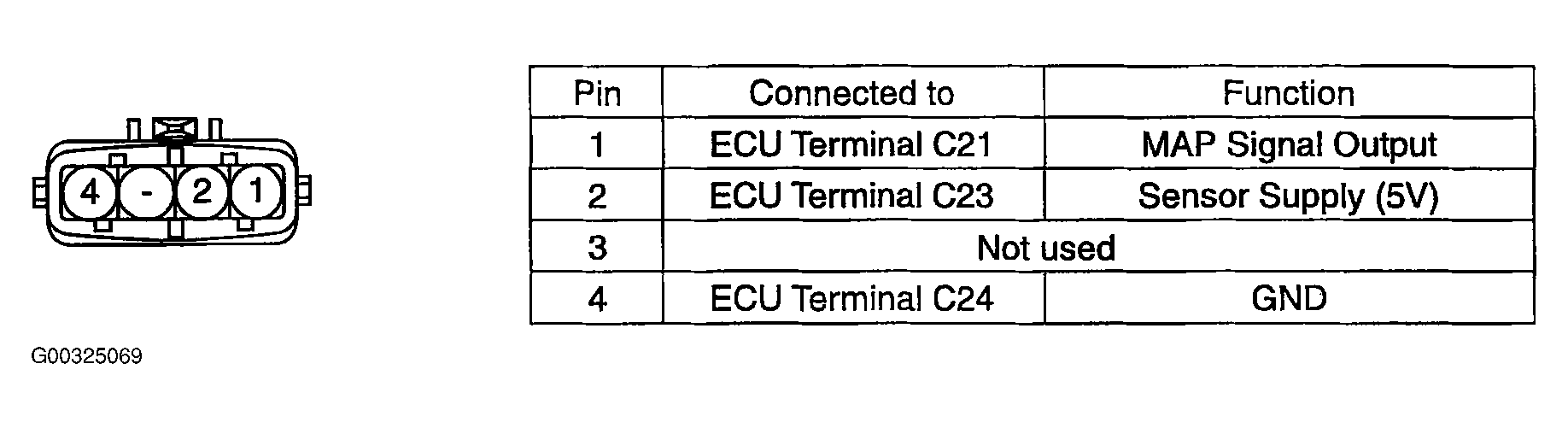

Fig 1: Illustrating MAP Harness Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
