Harness Inspection Procedures
Harness Inspection Procedures

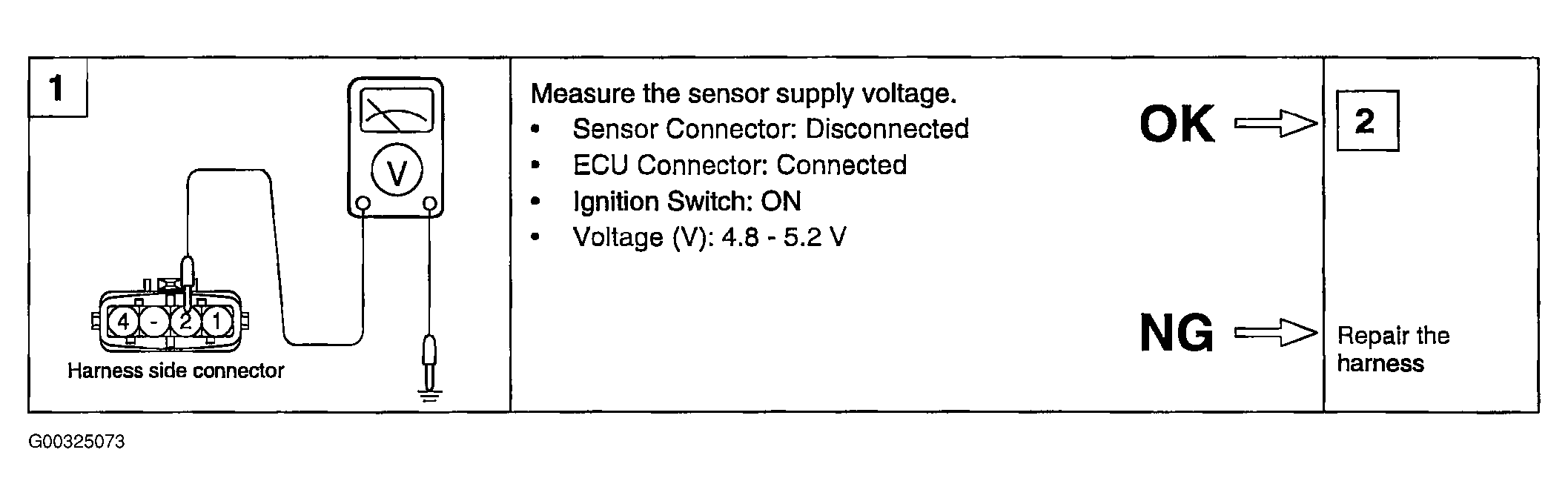

Fig 1: Illustrating MAP Harness Inspection Procedure (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

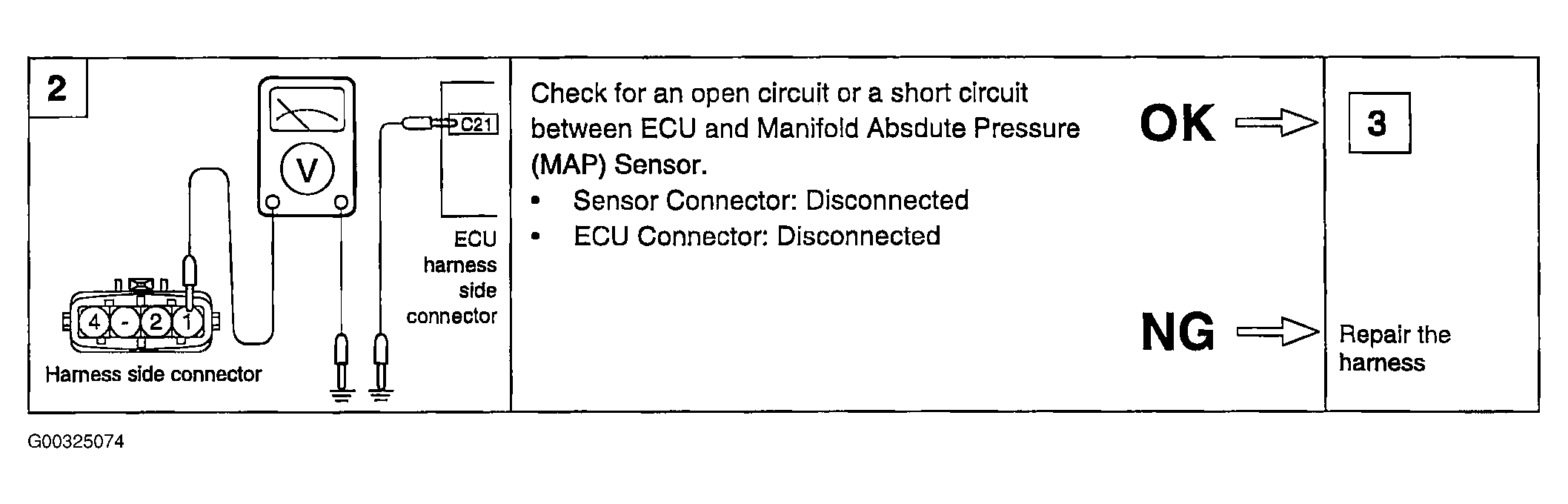

Fig 2: Illustrating MAP Harness Inspection Procedure (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

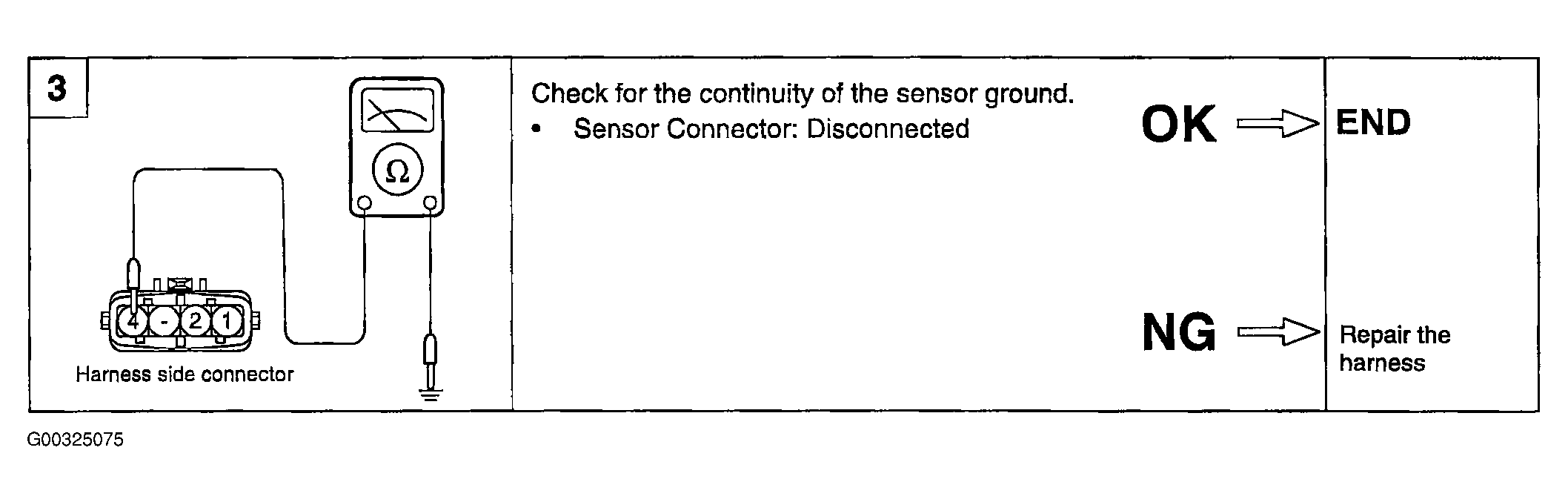

Fig 3: Illustrating MAP Harness Inspection Procedure (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
