Harness Inspection Procedures

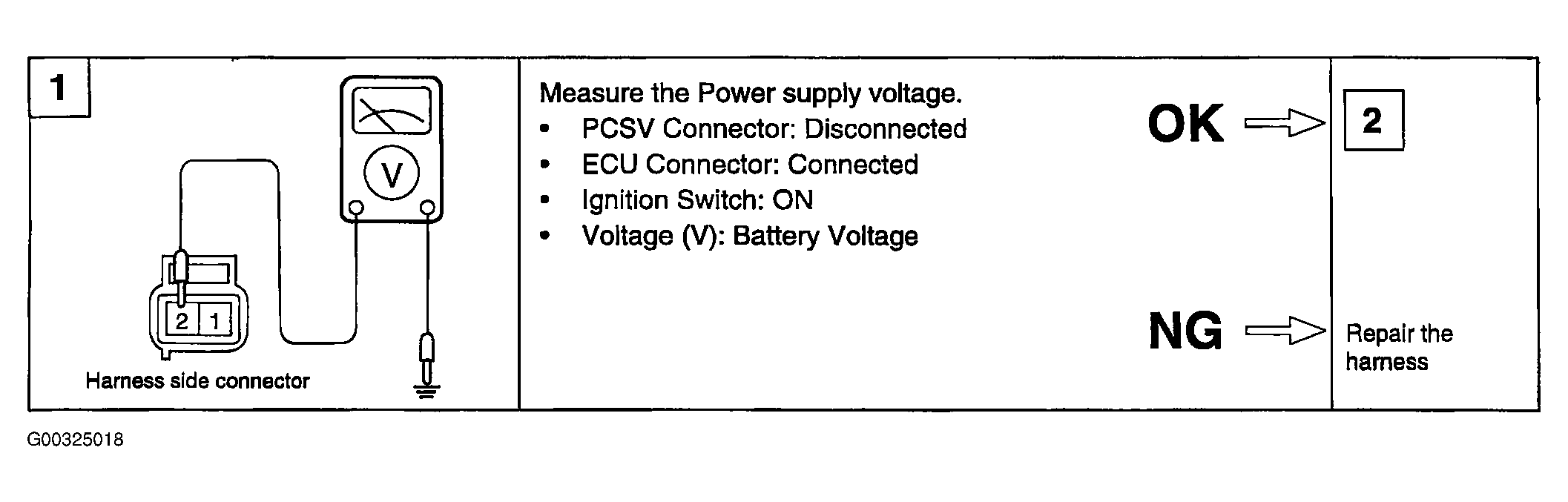

Fig 1: Illustrating PCSV Harness Inspection Procedure (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

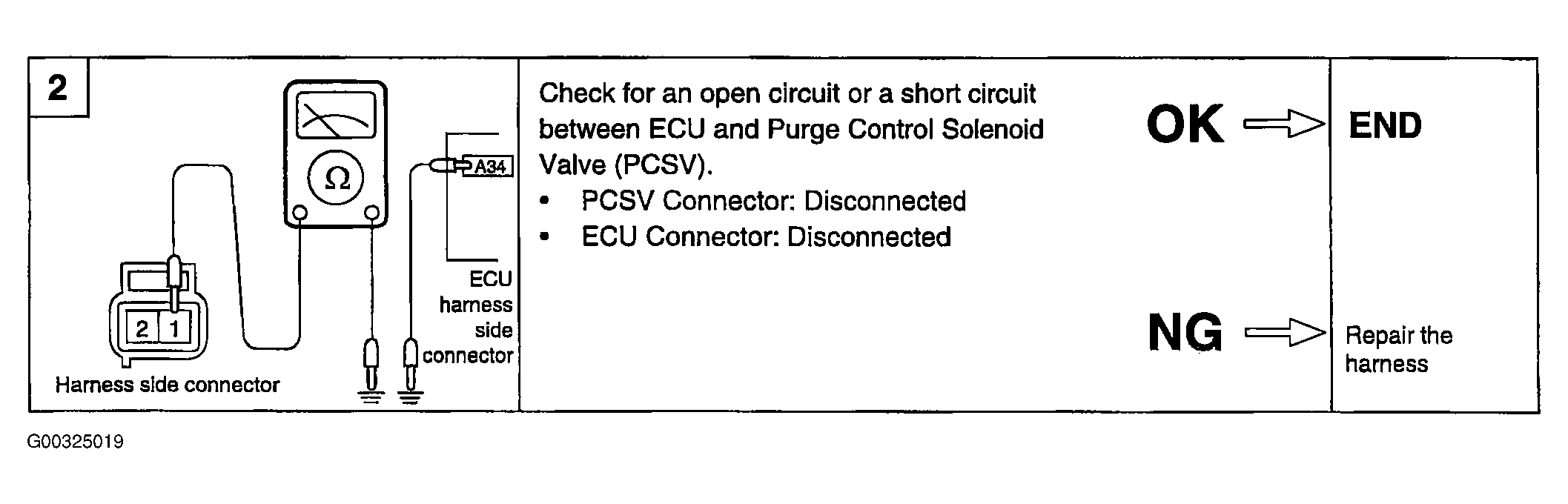

Fig 2: Illustrating PCSV Harness Inspection Procedure (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
