Variable Intake Manifold Control Motor (V.I. Motor)
›
Circuit Diagram
Circuit Diagram

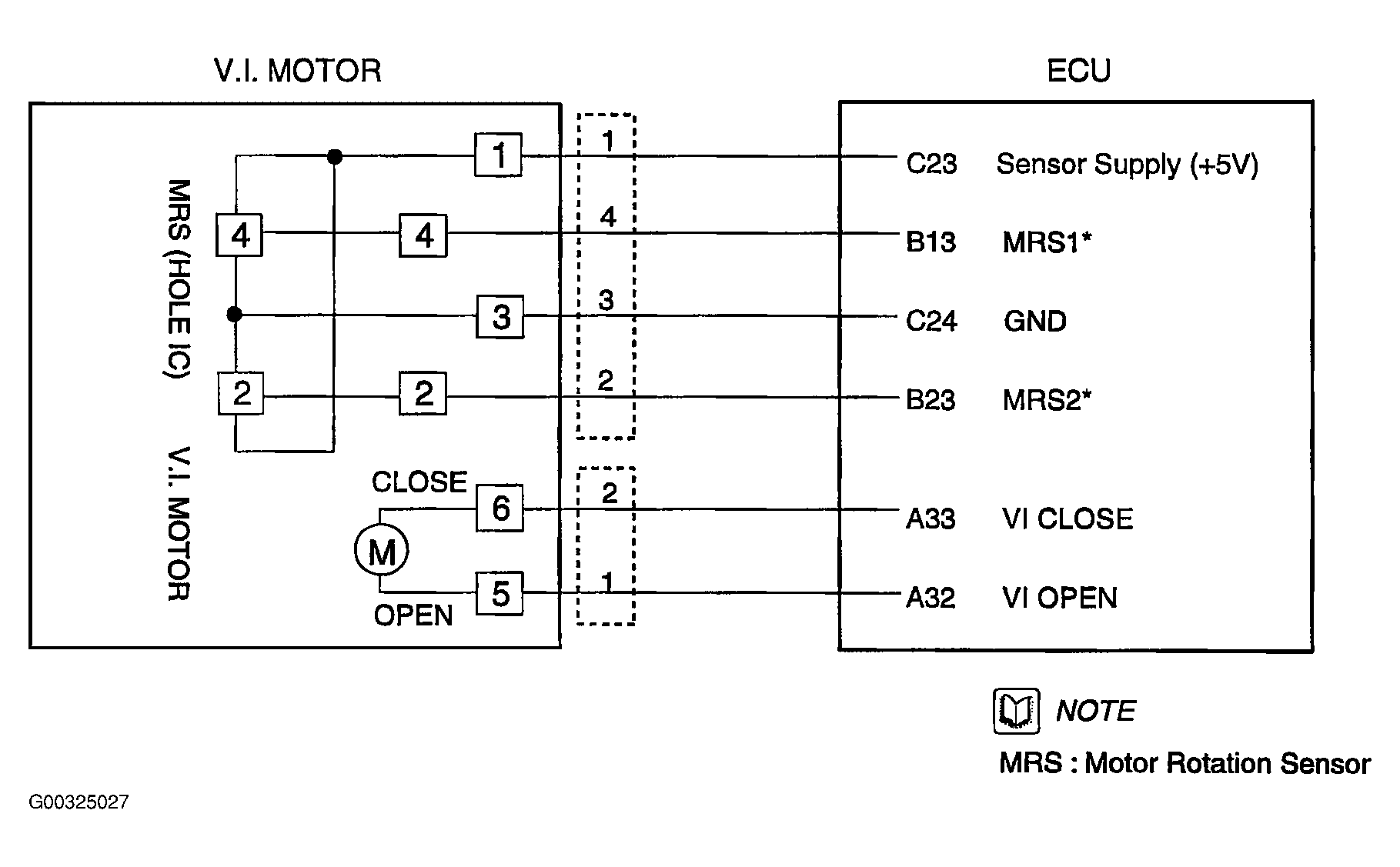

Fig 1: Illustrating V.I. Motor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
