Vehicle Speed Sensor (VSS)
›
Circuit Diagram
Circuit Diagram

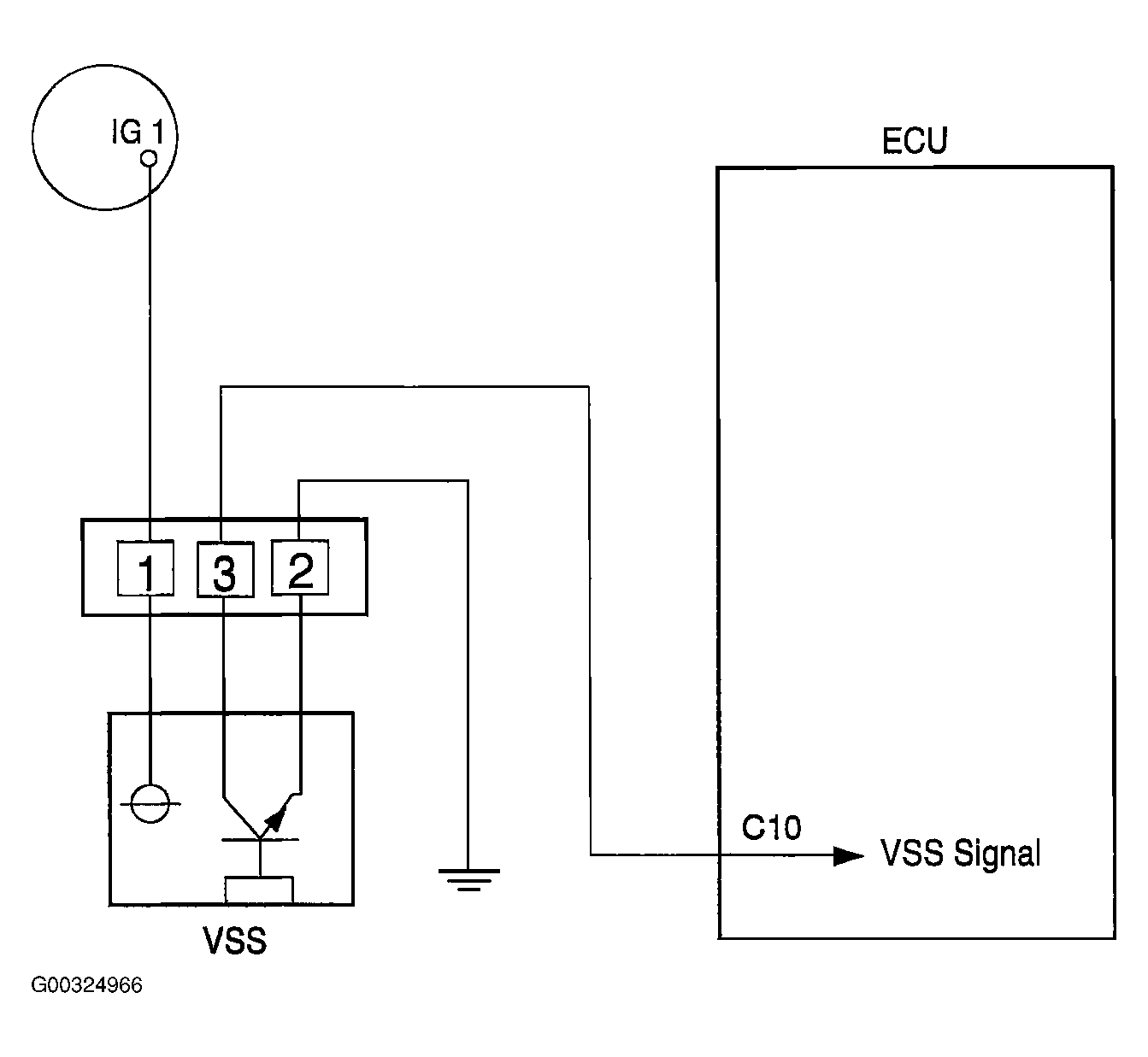

Fig 1: Illustrating VSS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
