Harness Inspection Procedures (VSS)

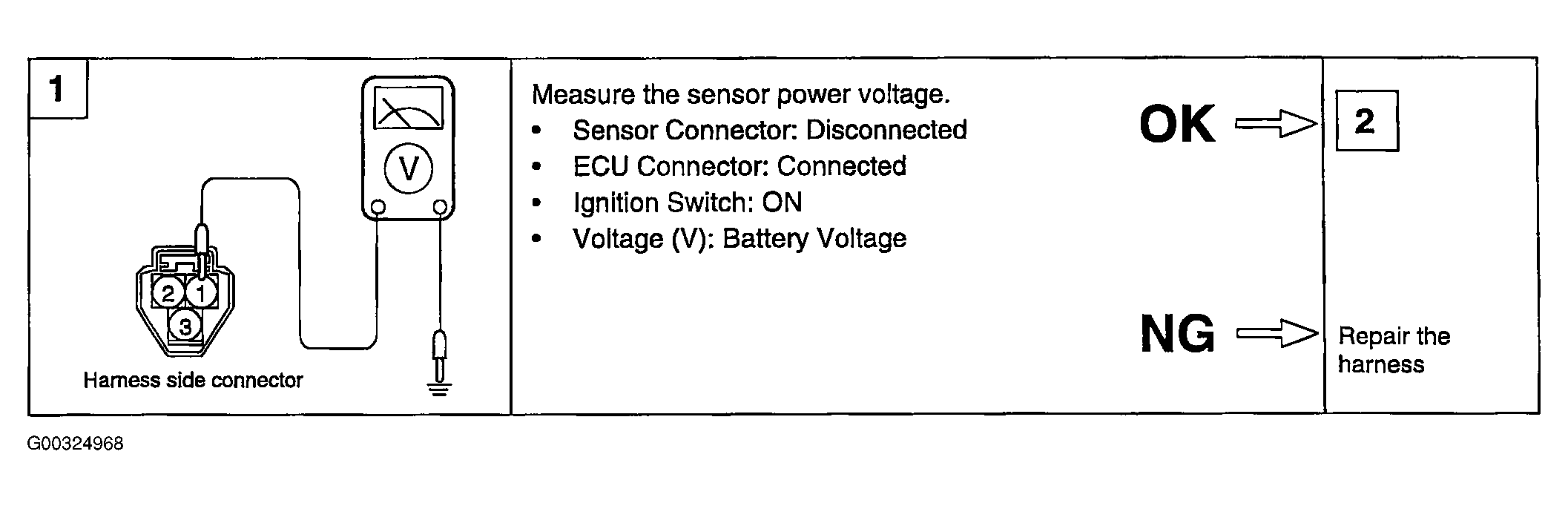

Fig 1: Illustrating VSS Harness Inspection Procedure (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Illustrating VSS Harness Inspection Procedure (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

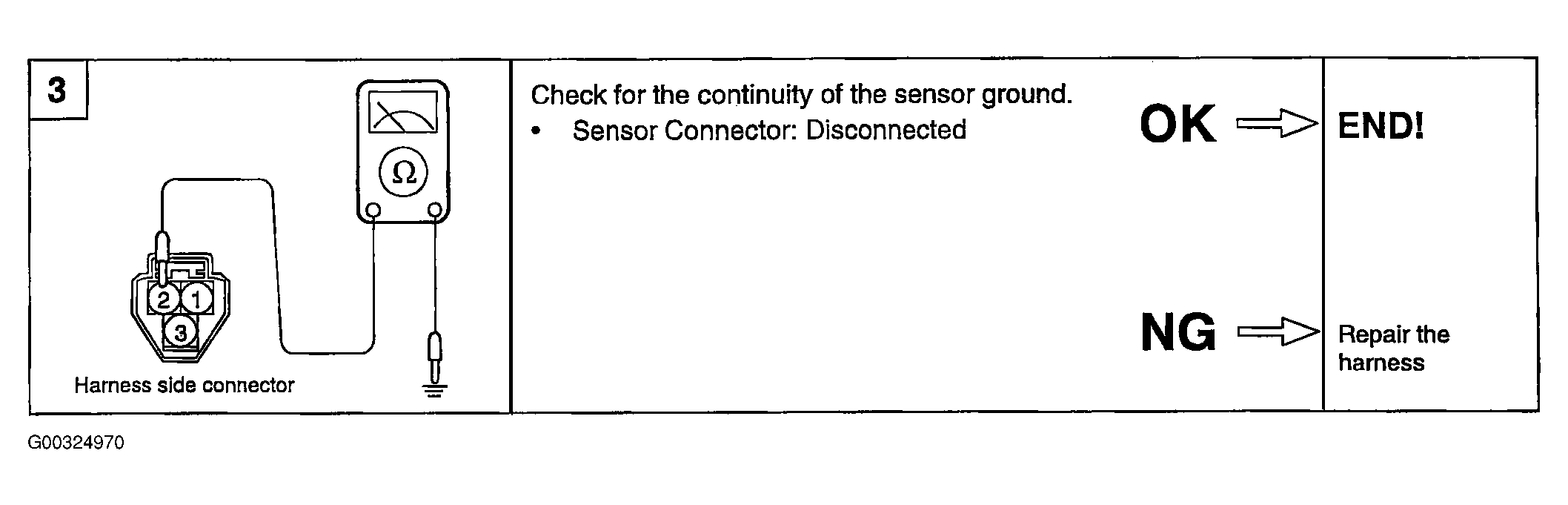

Fig 3: Illustrating VSS Harness Inspection Procedure (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
