Water Temperature Sensor (WTS)
›
Sensor Inspection
›
Using Volt Meter
Using Volt Meter

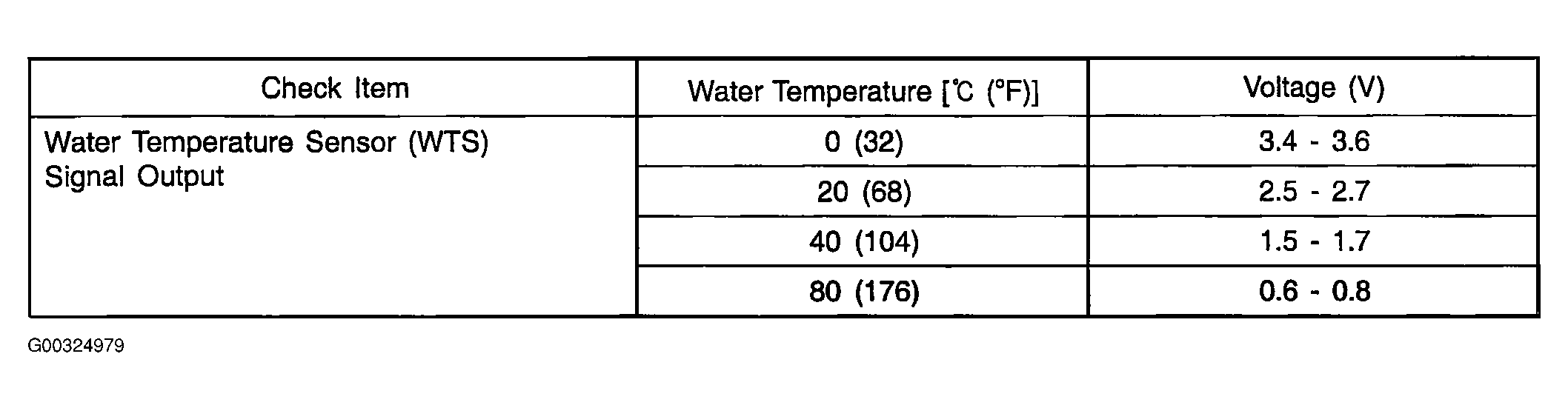

Fig 1: Testing WTS Voltage Chart
Courtesy of KIA MOTORS AMERICA, INC.
