Electronic Power Steering Control Module
The EPSCM is installed right of the passenger airbag module.

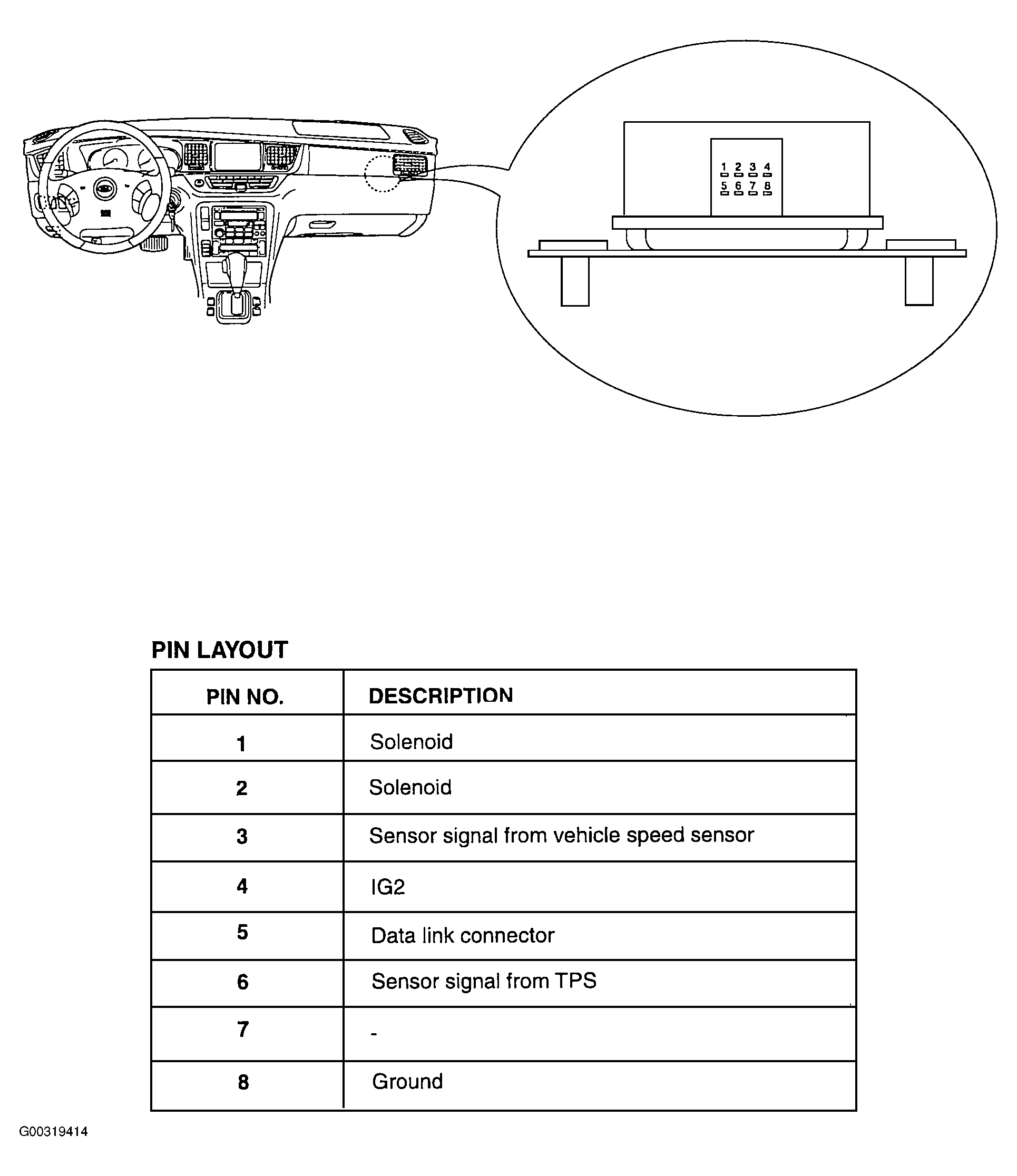

Fig 1: Locating Electronic Power Steering Control Module With Pinout
Courtesy of KIA MOTORS AMERICA, INC.
