Front Hub/Knuckle: Components

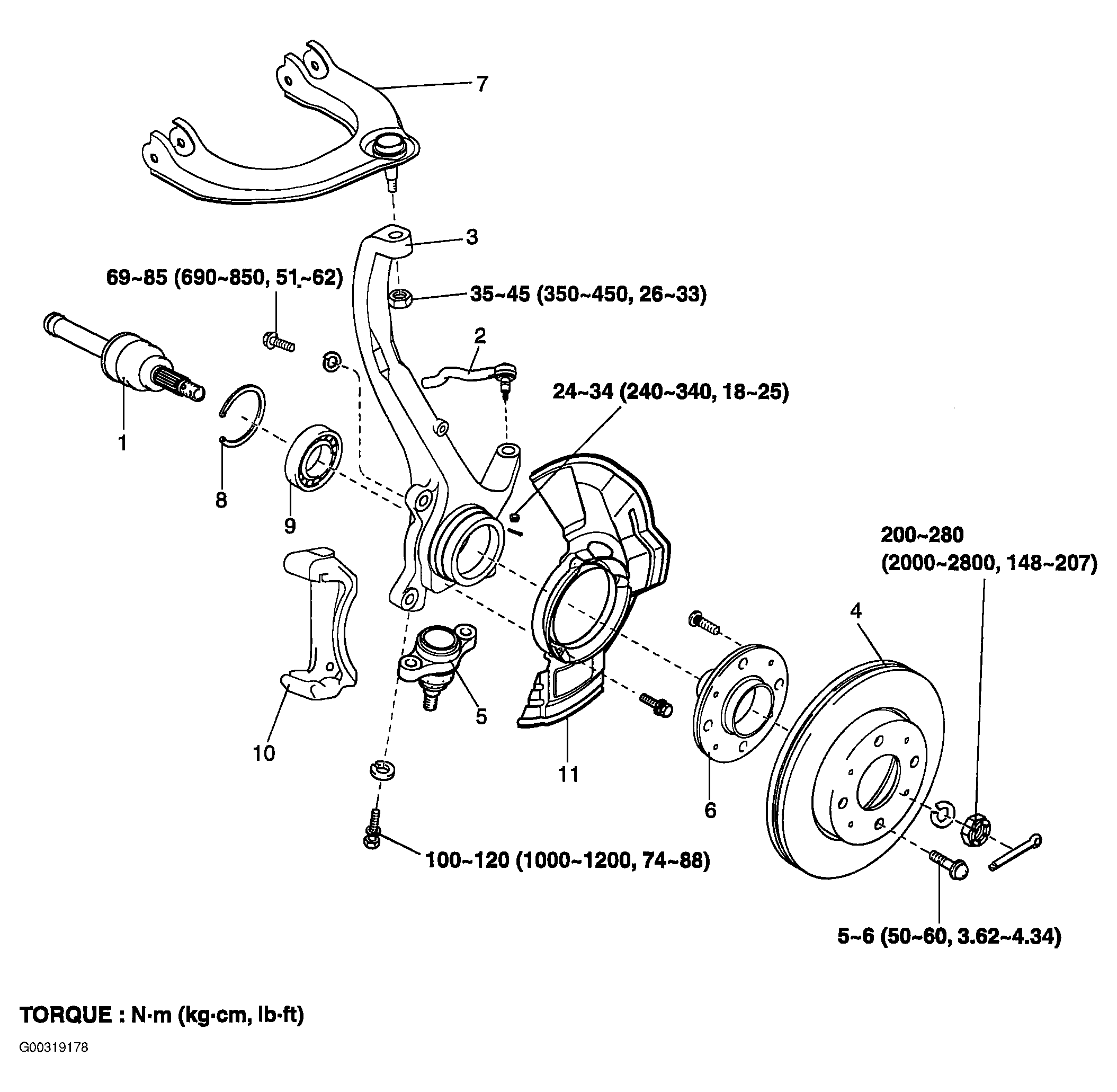

Courtesy of KIA MOTORS AMERICA, INC. LEGEND FOR EXPLODED VIEW OF FRONT KNUCKLE
| No. |
Component |
| 1 |
Driveshaft |
| 2 |
Tie Rod End |
| 3 |
Knuckle |
| 4 |
Brake Disc |
| 5 |
Lower Arm Ball Joint |
| 6 |
Hub Assembly |
| 7 |
Upper Arm |
| 8 |
Snap Ring |
| 9 |
Wheel Bearing |
| 10 |
Brake Carrier |
| 11 |
Dust Cover |
