Lower Arm: Components

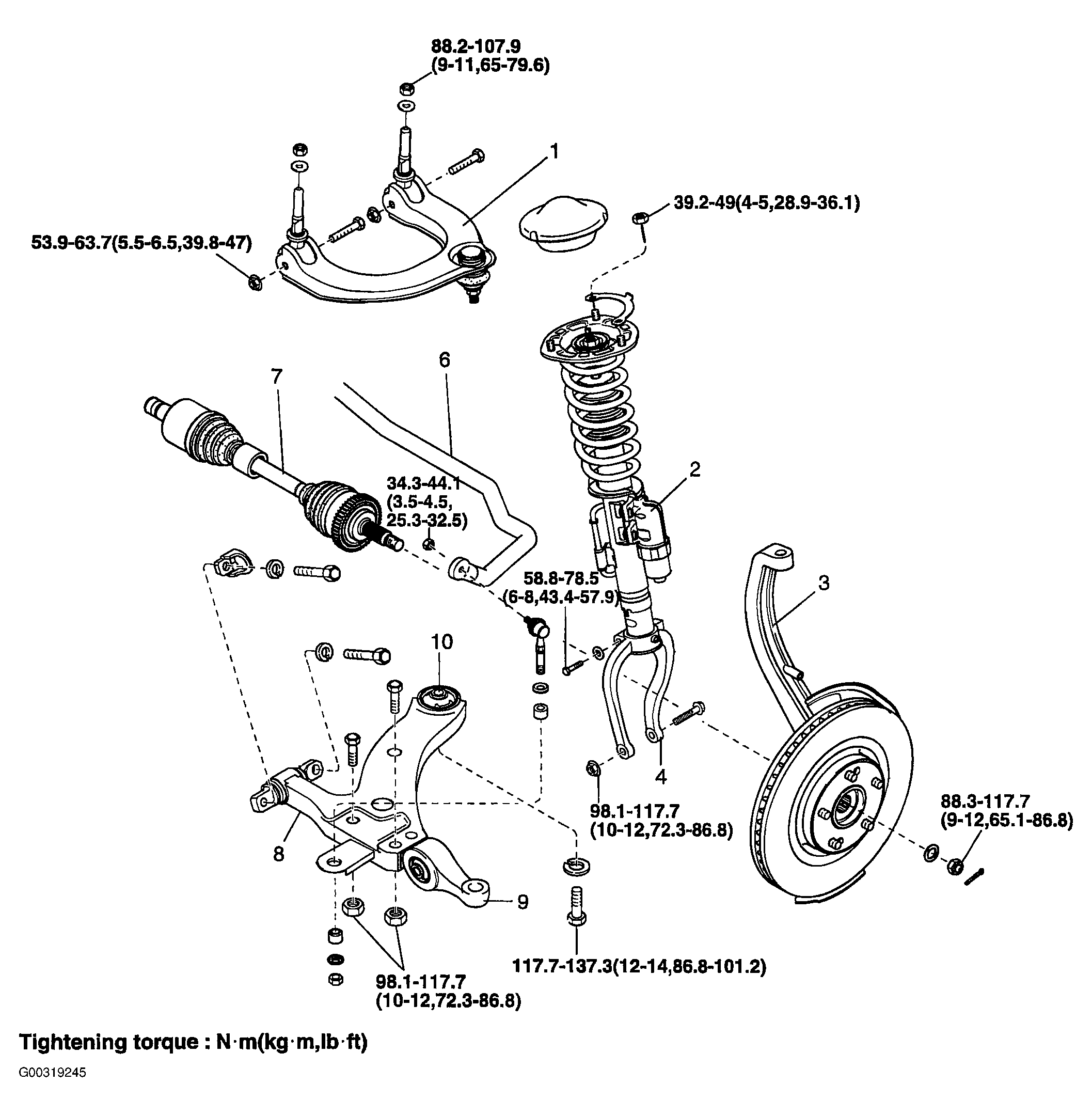

Fig 1: Exploded View Of Lower Arm

G00319245

Courtesy of KIA MOTORS AMERICA, INC.

LEGEND FOR EXPLODED VIEW OF LOWER ARM

No.

Component

1

Upper Fork

2

Front Shock Absorber Assembly

3

Fork

4

Stabilizer Link

5

Stabilizer Bar

6

Drive Shaft

7

Lower Arm

8

Lower Arm Connector

9

Bushing (G)

10

Bushing (A)

⁽⁾	For illustration, see Fig 1
